KOOBOOK 2Pcs 4.5A TB6600 TB6600HG Single Axis Stepper Motor Driver Controller Board Replace TB6560
About this product

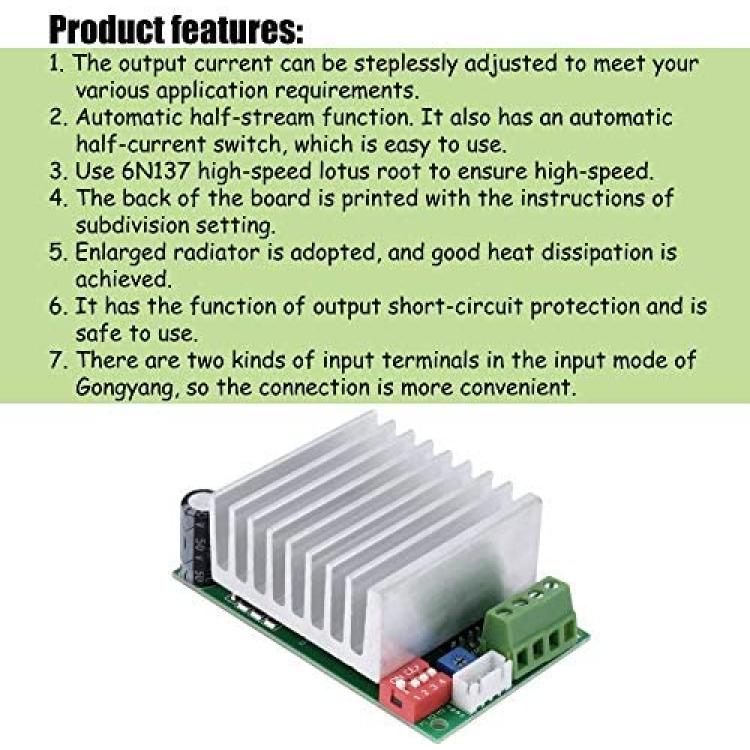

*Operating voltage: DC 10V-45V,It is recommended to use DC32V power supply switch power supply.
*The use of high-speed optical coupling 6N137, ensure high speed without losing step.
*The use of high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
*Automatic half current function. And a semi-automatic flow switch, easy to use.

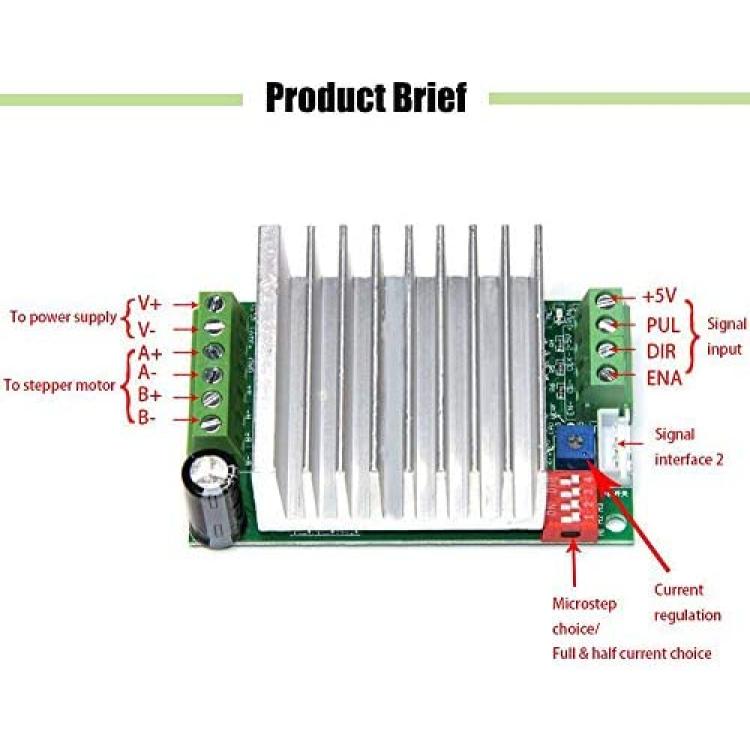

*Using common anode input mode, there are two input terminals, wiring more convenient.
Description
Specifications:
Rated maximum output reached: ± 4.5A.
4.2A of 42,57,86 fit within the two-phase / four-phase / four-wire / six-wire stepper motor.

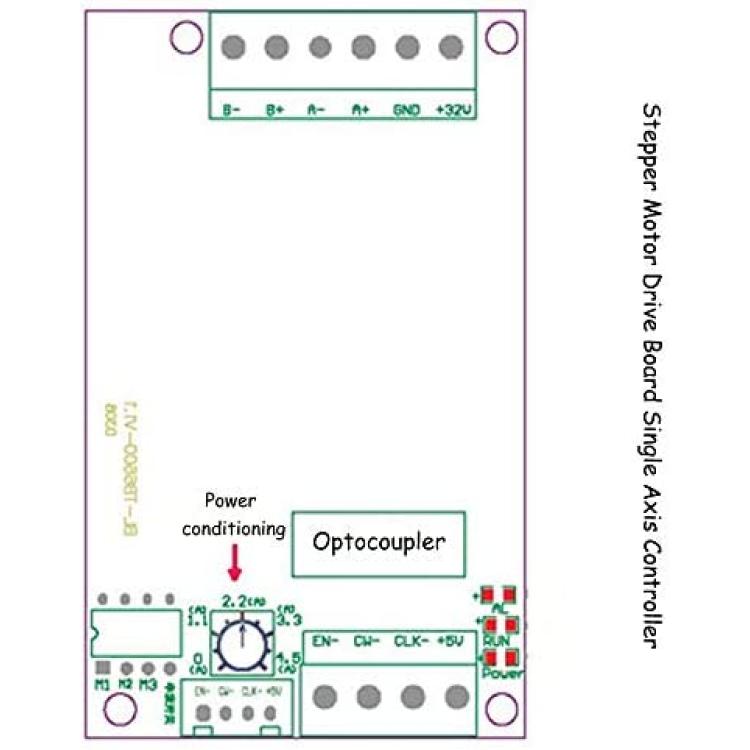

Printed on the back panel are subdivided setup instructions.
Segmentation: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
Size: 82mm * 50mm * 35mm (L * W * H)
Note:
The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

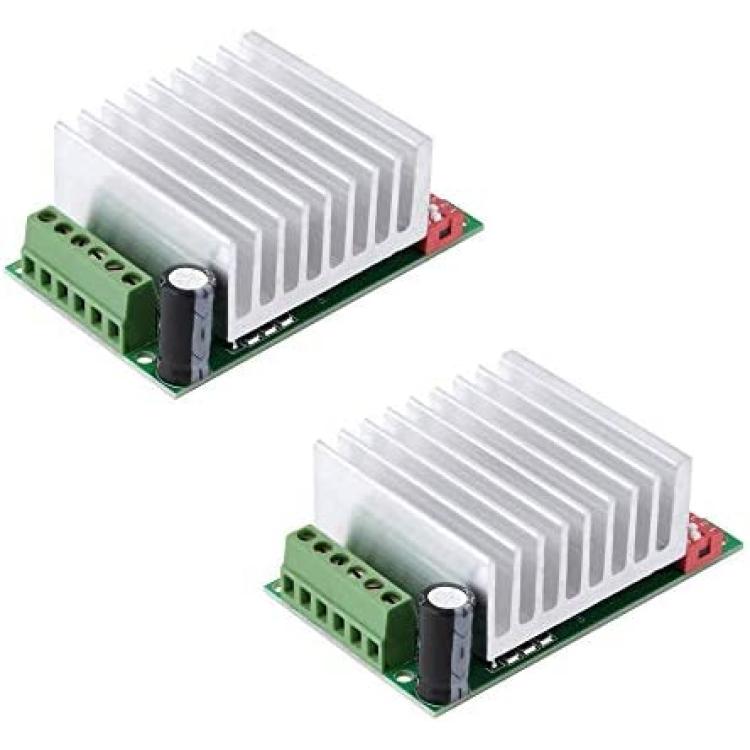

Package Includes: 2Pcs
