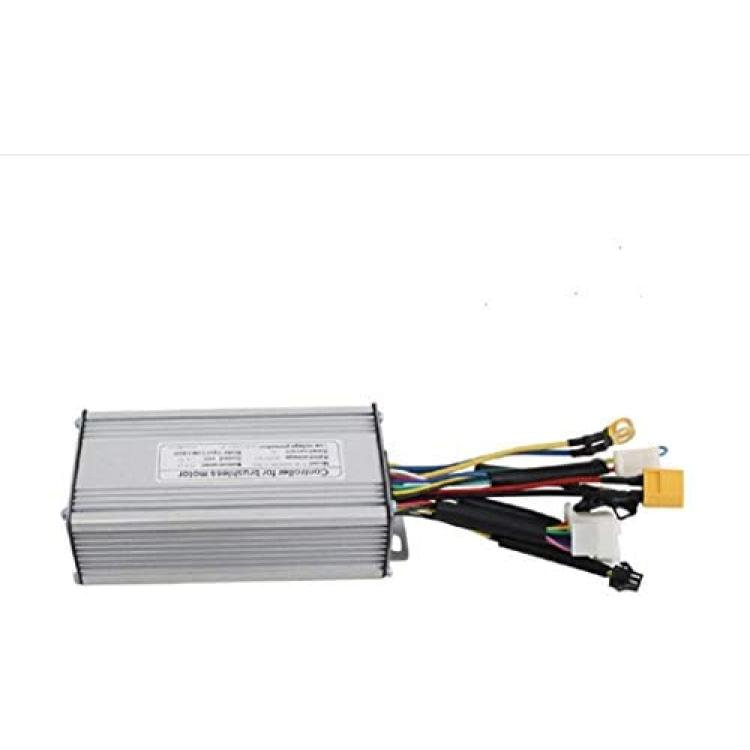

Risunmotor Ebike Controller 24V 36V 48V 350W 500W 750W 25A Brushless DC Controller Square Wave KT Controller with Regenerative and Reverse Function
About this product
*24V/36V, 36/48V Universal Voltage, Suitable for electric bicycles, scooter, etc
*Stable, high efficiency, low current consumption, long life
*Support LED Control Panel or LCD Control Panel or without any Control Panel (Connect Display Jumper)
*Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural
*With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic
Description
24V/36V, 36V/48V 350W, 500W, 750W DC Brushless eBike Controller 9 MOSFET 25A
Applicatoin: 24V/36V 288-600W, 432-875W or 36V/48V 432-875W, 576-1200W Brushless Hall Sensor Motor

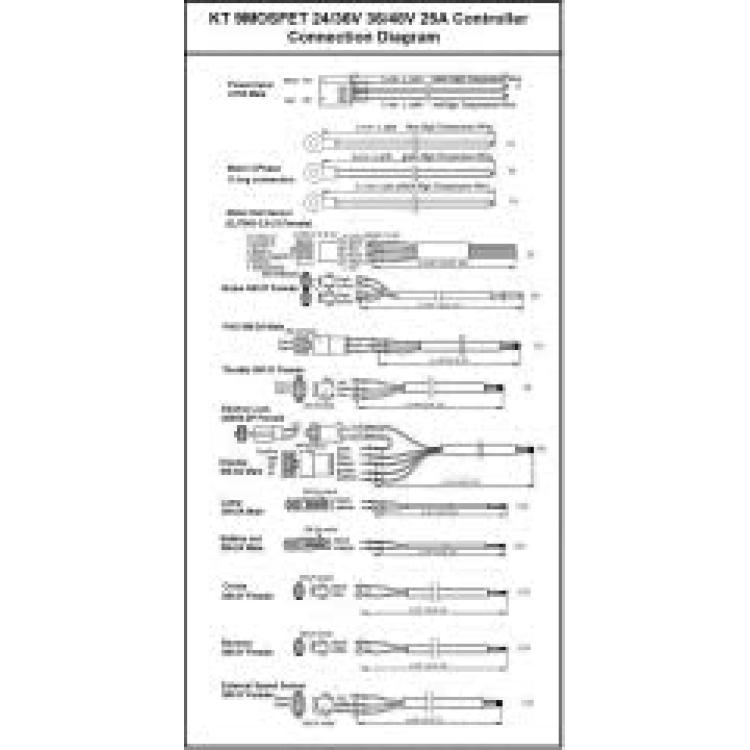

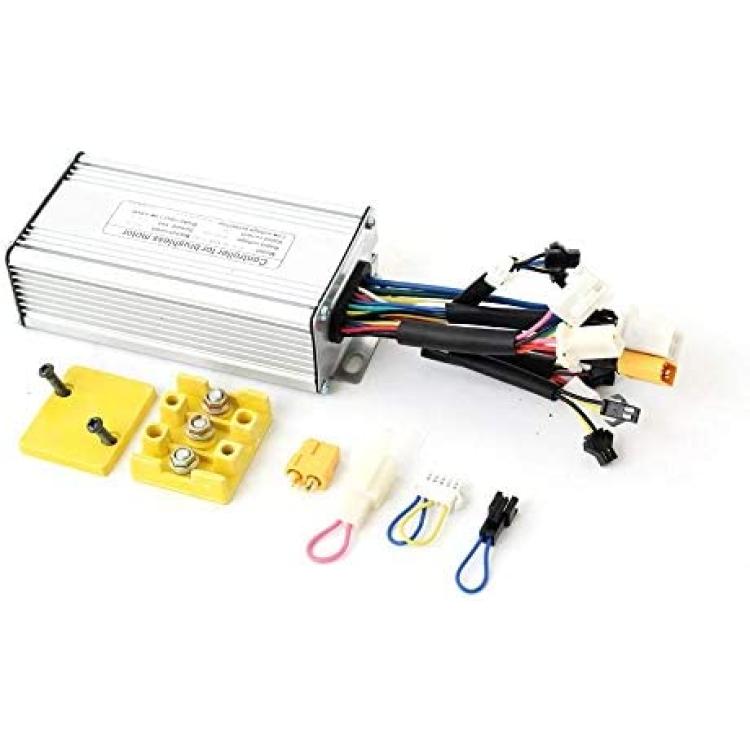

Parts Include: Controller, "O" ring 3-phase cable connection box, Connector (XT60 Female), Jumper Connectors(Display, Electric Lock, Cruise Jumper)
Support Regenerative Function (must use our KT LCD Display together to active this function)
Technical Data:
Rated Voltage: DC 24V/36V or 36V/48V
Rated Current: 12A
Low Voltage Protection: DC20/30V±0.5V, DC30/40V±0.5V
Max. Current: 25±1A
Speed set: 1-4.2V

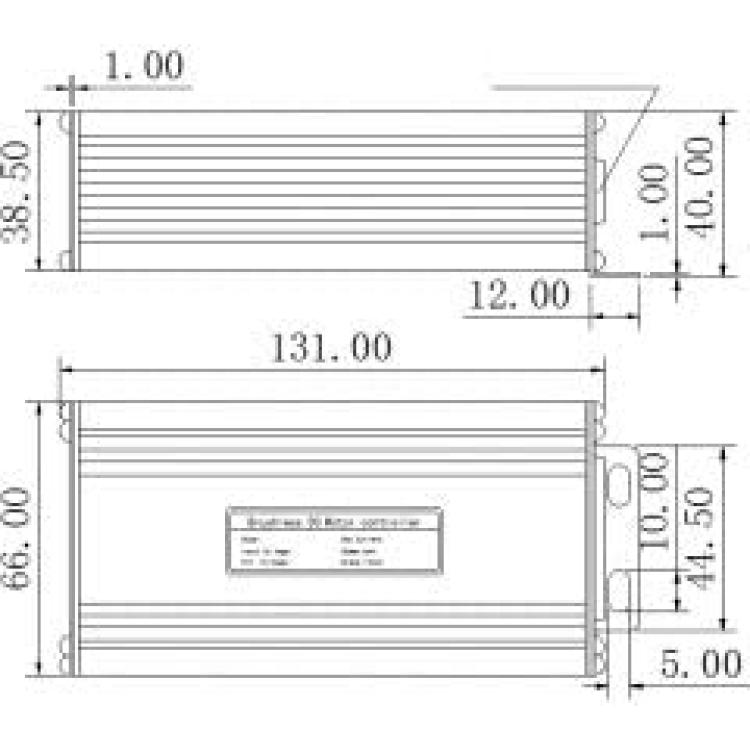

Size: 131x66x38.5mm
Color: Silver
9 pcs MOSFET
Applicatoin Power:
Max.: 24V/36V 600W, 875W or 36V/48V 875W, 1200W Motor
Advantages:
24V/36V or 36V/48V Universal Voltage
Stable, high efficiency, low current consumption, long life
Support LED Control Panel or LCD Control Panel or without any Control Panel (Connect Display Jumper)
Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural.
Electric power assist is with fast response and always consistent with the rider’s pedal action to achieve the effect of the torque boost.
With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic.
Support Electric Lock Function
Support two modes light control (24V/36V, 36V/48V): Mini 100mA Current Light Control by Display, Normal Current Light Control by switch
Support Cruise Function
Support Reverse Function
