Risunmotor 36V/48V 1000W 30A Ebike Brushless DC Sine Wave Motor Controller with Regenerative and Reverse Function
About this product
*Suitable for electric bicycles, scooter, etc
*Sturdy and durable brushless controller
*Provide steady speed and sensitive control of braking and direction changes
*Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural
*High quality, one year quality warranty, just buy with confidence
Description
36V/48V 540-1080W, 720-1440W DC Brushless eBike Controller 12 MOSFET 30A
Applicatoin: 36V/48V 540-1080W, 720-1440W Brushless Hall Sensor Motor

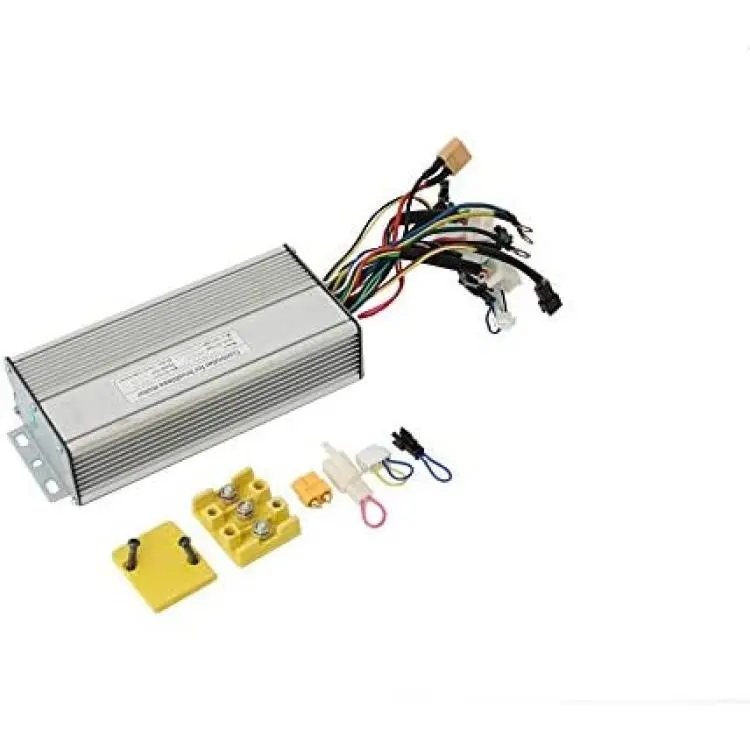

Parts Include: Controller, "O" ring 3-phase cable connection box, Connector (XT60 Female), Jumper Connectors(Display, Electric Lock, Cruise Jumper)
Support Regenerative Function (must use our KT LCD Display together to active this function)
Technical Data:
Rated Voltage: 36V/48V
Rated Current: 15A
Low Voltage Protection: DC30/40V±0.5V
Max. Current: 30±1A
Speed set: 1-4.2V
Brake Input: Low-Level
Size: 176x82x41mm
Color: Silver
Weight: 585g
12 pcs MOSFET
Applicatoin Power:
Rated: 36V/48V 540W, 720W;
Max.: 36V/48V 1080W, 1440W
Advantages:
36V/48V Universal Voltage
Stable, high efficiency, low current consumption, long life
Support LED Control Panel or LCD Control Panel or without any Control Panel (Connect Display Jumper)
Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural.
Electric power assist is with fast response and always consistent with the rider’s pedal action to achieve the effect of the torque boost.
With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic.
Support Electric Lock Function
Support two modes light control (24V/36V, 36V/48V): Mini 100mA Current Light Control by Display, Normal Current Light Control by switch
Support Cruise Function
Support Reverse Function
