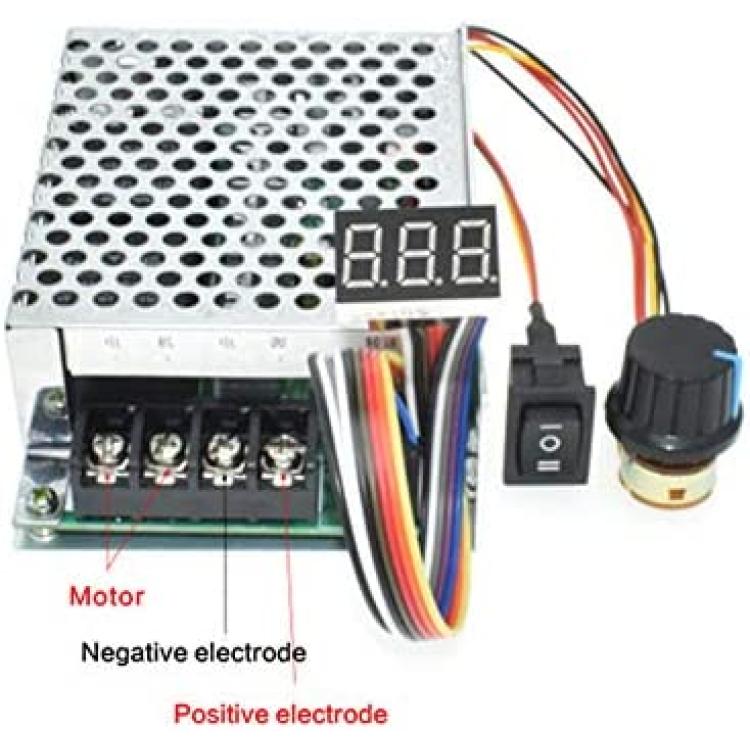

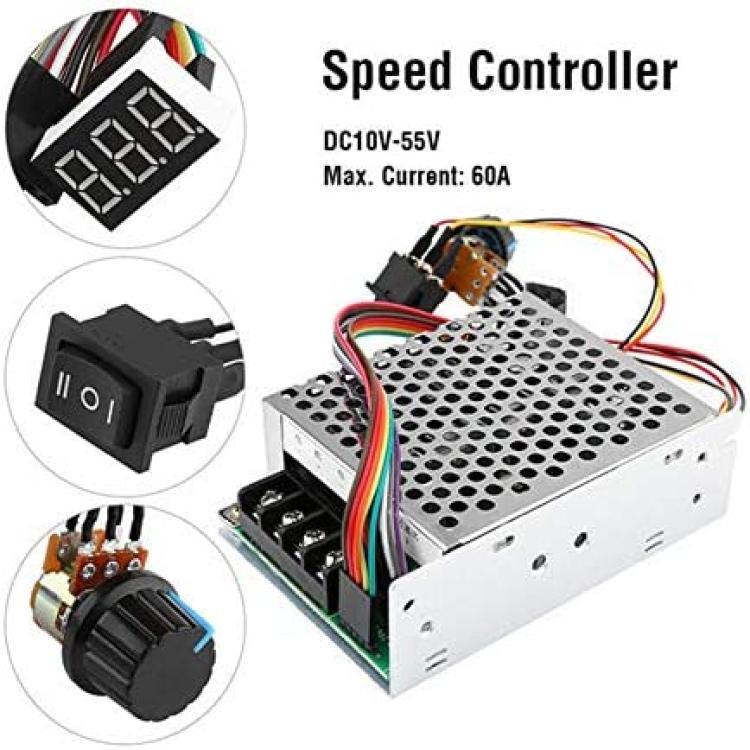

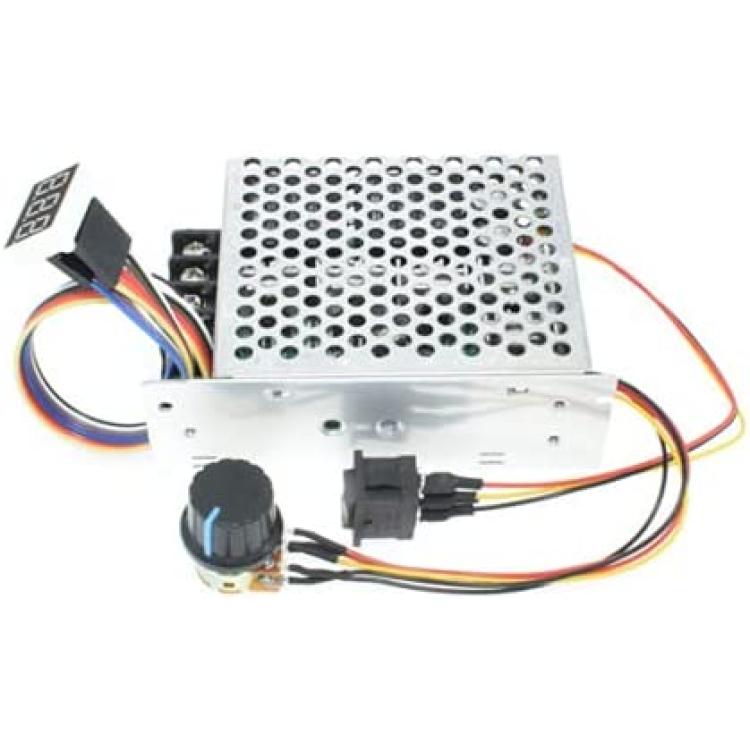

NB PWM DC Motor Speed Controller, DC10-55V60A with Forward-Brake-Reverse Switch, Ajustable Potentiometer & LDE Digital Display
About this product
*【Regulate Range】 Input supply voltage: DC 10V-55V; Maximum current: 60A; Continuous current: 40A; Speed range: 0-100% ; Control frequency: 15KHZ. If you have any product or service problems, please contact us in time, I am happy to help you solve the problem.
*【Switch Function】The DC motor speed controller come with switch function,High power speed controller switch which is much more adaptable and conveniently change the motor direction.

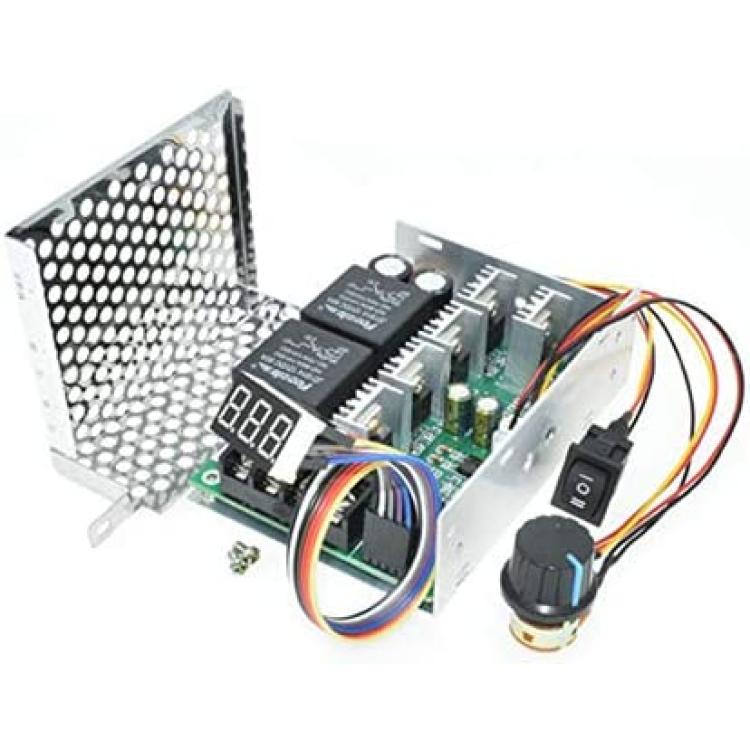

*【Excellent Heat Dissipation Performance】 Aluminum shell is very strong to prevent damage, holes on its side and top which are helpful for heat dissipation.

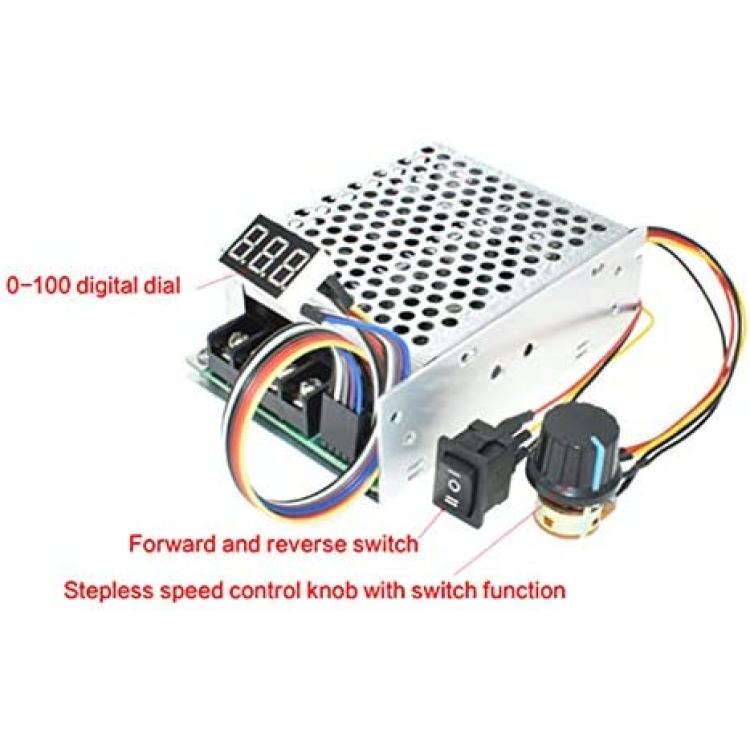

*【Easy to Operate】The stepless motor controller has a simple potentiometer knob adjusts the motor speed from 0% ~ 100% smoothly. And with LED display is accurate to show 0 ~ 100% of the motor speed.
*【Application】 the dc motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit.Note: The motor cannot be used in electric vehicles.
Description

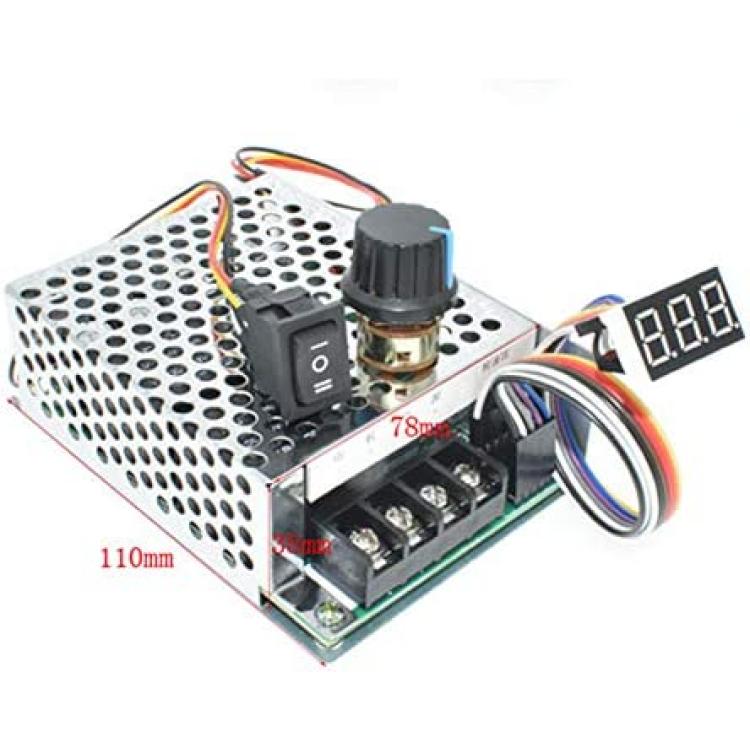

Specifications: Size: 5.03 x 3.85 x 0.74 inch/ 128 x 98 x 19mm Forward & Reverse: Support Supply/load voltage: DC 1055V Maximum current: 60A Continuous Current: 40A PWM frequency: 15KHZ Speed Modulation Range: 0 ~ 100Percent Speed Control Type: Current modulation by potentiometer (with switch) Support Forward Reverse Rotation Control: Yes, by ForwardBrakeReverse Switch Note: The digital display is the percentage of motor full speed 0100 actual speed of nonmotor. The input voltage must be divided into positive and negative. The input voltage should be equal to the rated voltage of the motor within DC 1055V.
