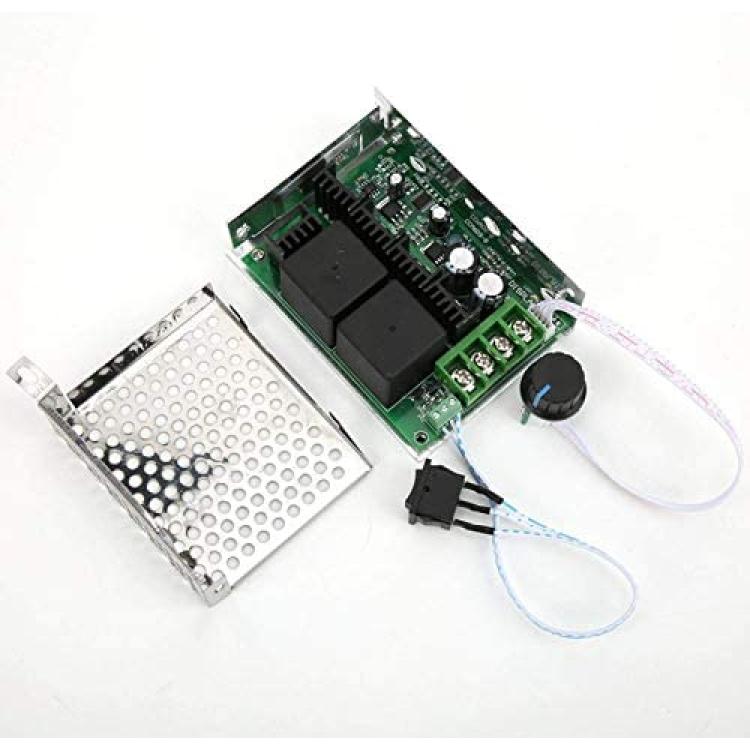

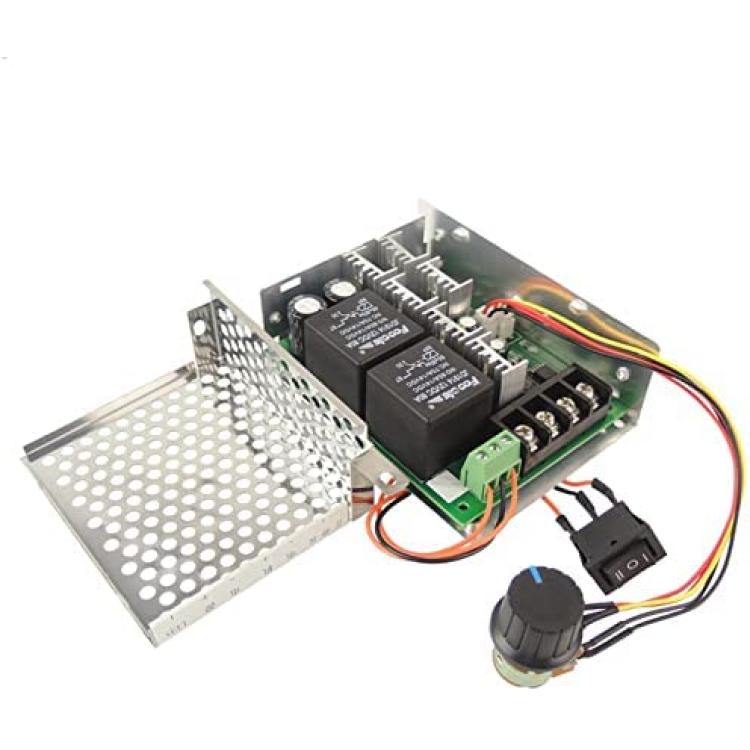

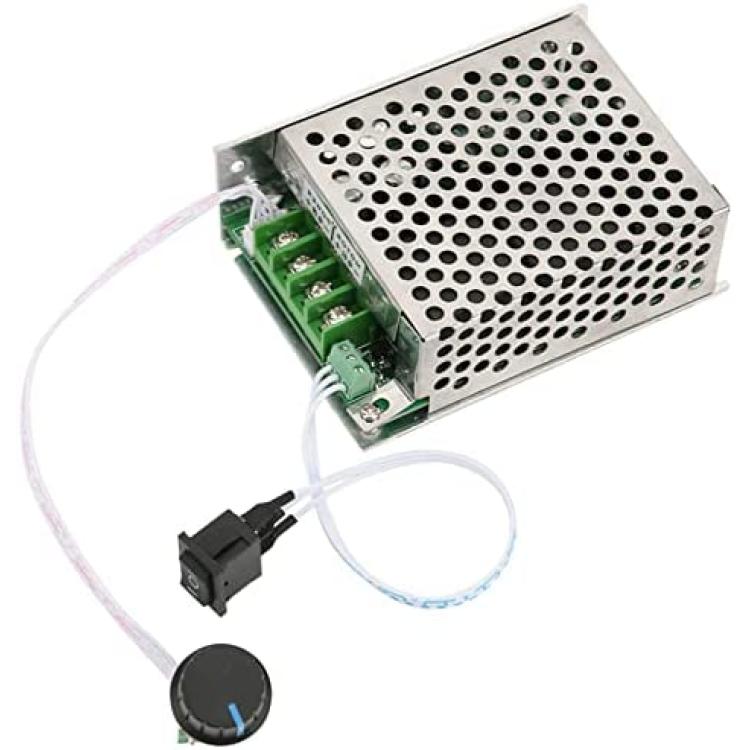

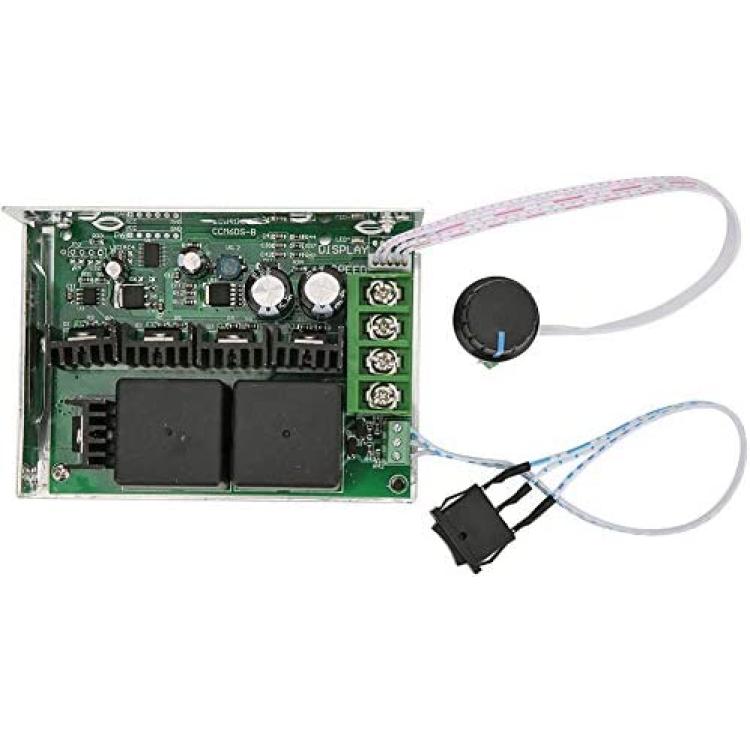

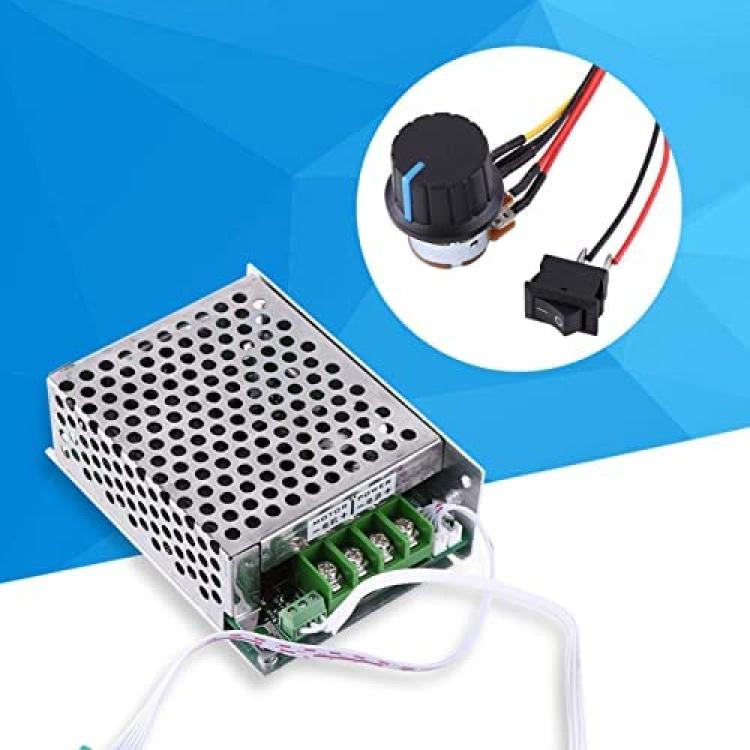

DC Motor Speed Controller, 10V-50V 40A PWM Controller with High Power, Rotation Direction Adjustable, Good Heat Dissipation, Potentiometer with Switch, Fit for 12V-48V 250W-500W DC Brush Motor

DC Motor Speed Controller, 10V-50V 40A PWM Controller with High Power, Rotation Direction Adjustable, Good Heat Dissipation, Potentiometer with Switch, Fit for 12V-48V 250W-500W DC Brush Motor

Name: DC Motor Speed Controller, 10V-50V 40A PWM Controller with High Power, Rotation Direction Adjustable, Good Heat Dissipation, Potentiometer with
Brand: ‎Niiyen
SKU: MM24849
Availability: InStock

Brand: ‎Niiyen
Product Code: MM24849
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*✅QUALITY CASE: Well design case can protect the controller board from damage as well as dissipate heat

*✅EXCELLENT PERFORMANCE: This simple and easy-to-use DC motor speed controller has an elegant appearance and stable performance

*✅LONG SERVICE LIFE: Speed controller is made with high quality circuit board which ensures a longer service life

*✅BETTER REGULATION: There are two build-in 80A large current relay in this motor speed controller which ensures a better regulation

*✅ADJUSTABLE DIRECTION: This motor speed controller would allow setting direction of rotation that accomplishes reversing the motors direction

Description

Description:This is a simple and easy-to-use DC motor speed controller of elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 50V. This speed controller with high power allows setting direction of rotation.Â Specifications:Input Voltage: DC10V to 50VOutput Voltage: Linear with loadMaximum Current: 40ARated Current: 30AFrequency: 16KHzSpeed Range: 0% to 100%Forward & Reverse: SupportRegulation Method: Potentiometer with switchRegulation Type: Regulating CurrentSize: 110 x 90 x 78 x 38mm / 4.33 x 3.54 x 3.07 x 1.50" Fitment: Suitable for DC brushed motors within 12V 250W, 24V 350W, 48V 500W?Package Includes:1 x Speed ControllerÂ ?Note:1. This product is only used for speed regulation of DC brushed motors;2. This product cannot be used as a voltage regulator or regulator;3. This product cannot be powered by 48V batteries or accumulators;4. Please confirm your needs before ordering.

Tags: DC Motor Speed Controller, PWM Controller, DC Motor Speed Regulator, Brush Motor Controller, 10V-50V Controller, 40A Motor Controller, Adjustable Direction, Heat Dissipation, Potentiometer Speed Controller, 12V-48V Motor Controller, 250W-500W Motor
