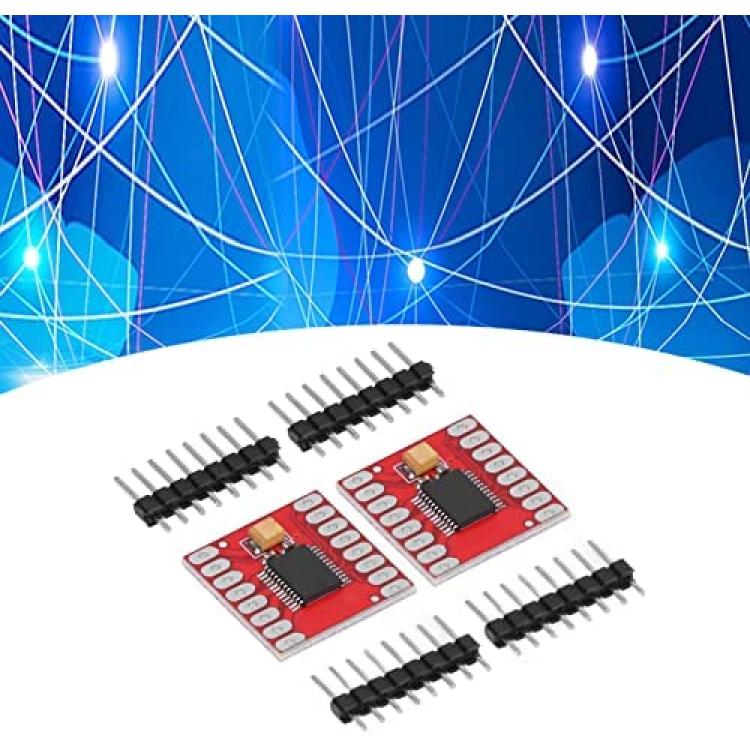

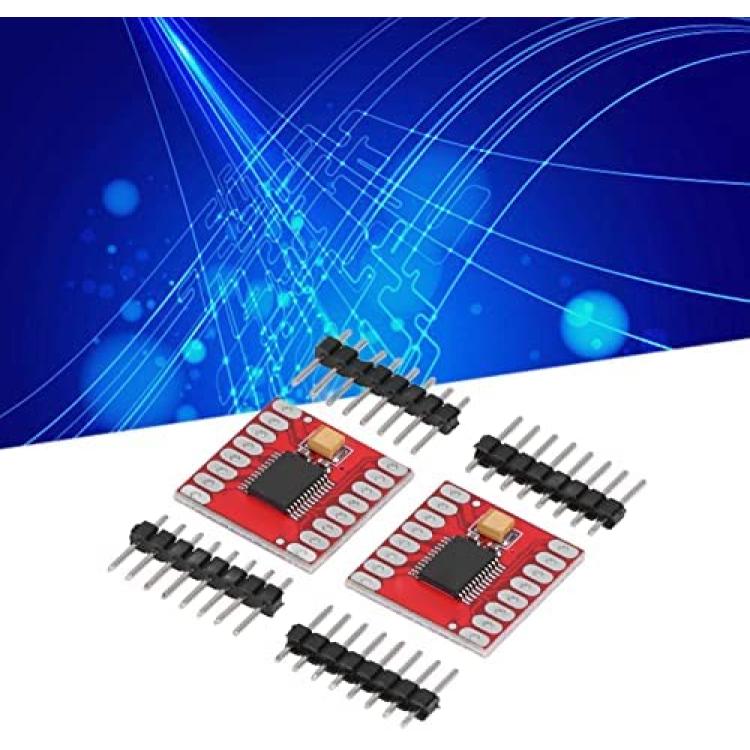

2 Sets TB6612FNG Motor Drive Module Dual Drive High Performance
About this product
*Safe Working: Has protection against over current, short circuit, under voltage lockout and over temperature, with low power sleep mode.
*Easy to Install: Comes with a compact size and a light weight, the convenient installation can be quickly completed within minutes.

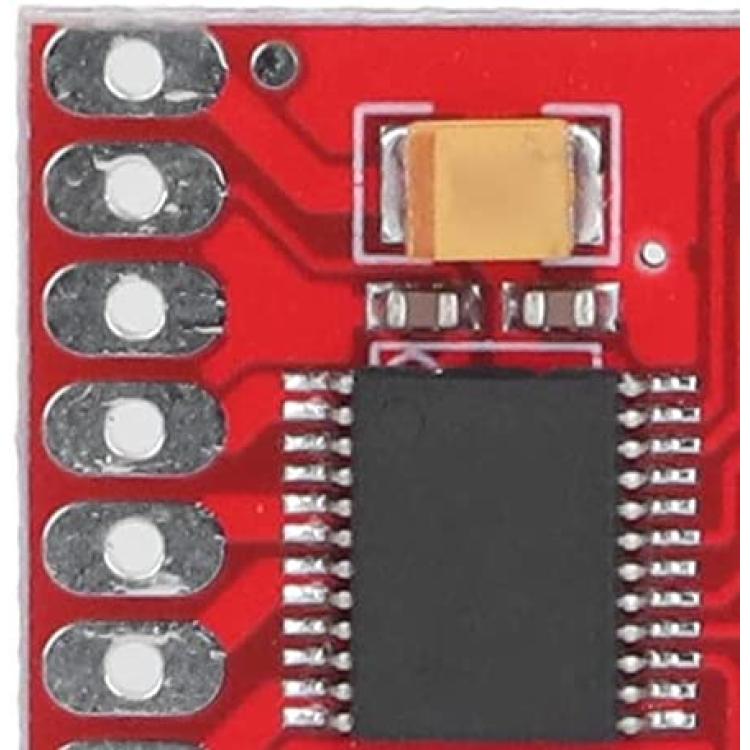

*Has H Bridge: TB6612FNG is a MOSFET based H bridge integrated circuit, which is much more efficient than a transistor H bridge driver.

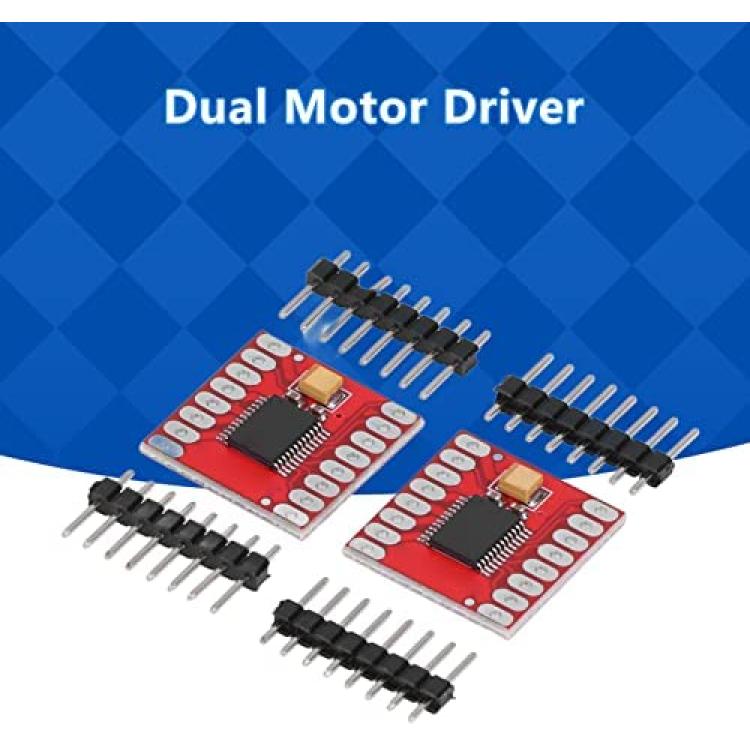

*Motor Driver: The dual motor driver module can be applied to DC motor and 4 wire step motor, can also be used to drive 2 DC gear motors.
*Simple Using: The peripheral circuit is simple and does not require an external heat sink, works stably with high working efficiency.
Description
Specification:
Item Type: Motor Drive Module
Material: PCB
Function: Motor drive control.
Voltage: VM connects to 12V voltage, VCC connects to 5V voltage.
Single H Bridge Output Current: 1.5A

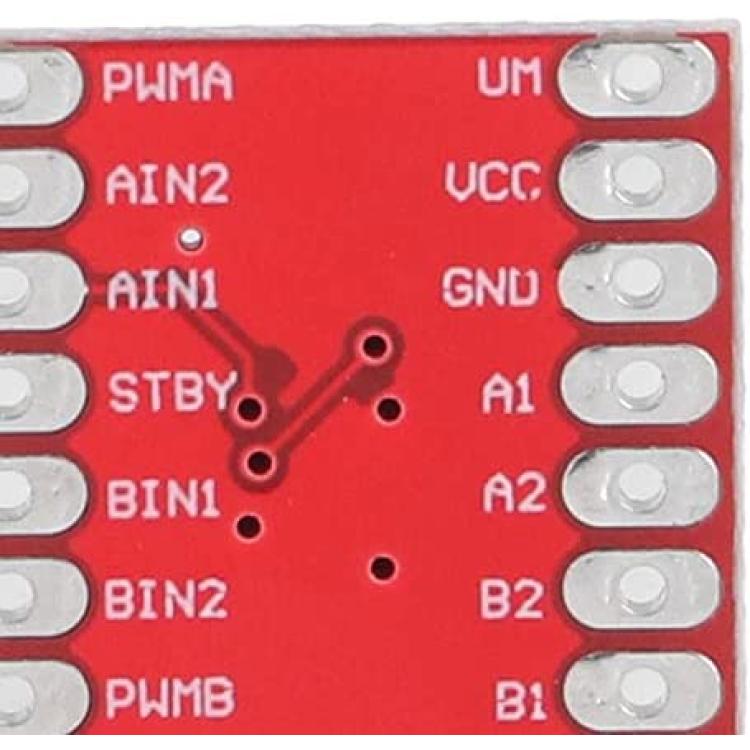

STBY Pin: Normal use when connected to high level, reset the motor to stop.
Frequency: Drive frequency up to 100KHZ.
Product Size: Approx. 21 x 21mm / 0.83 x 0.83in

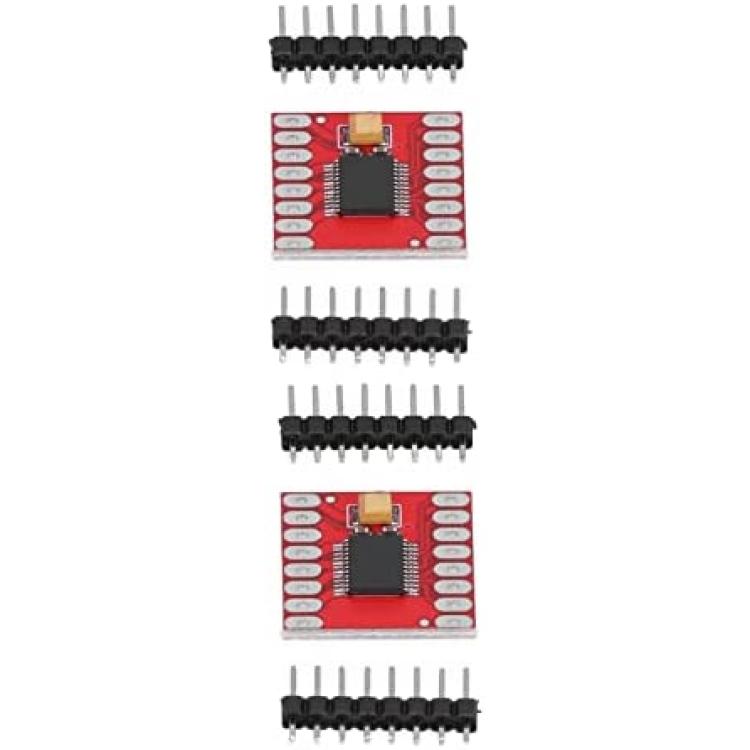

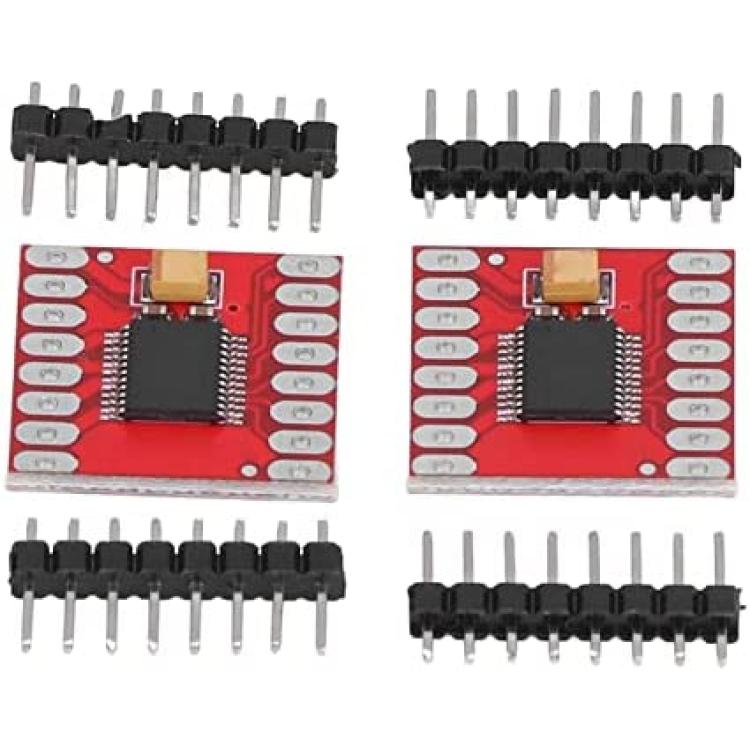

Package List:
2 x Motor Drive Module

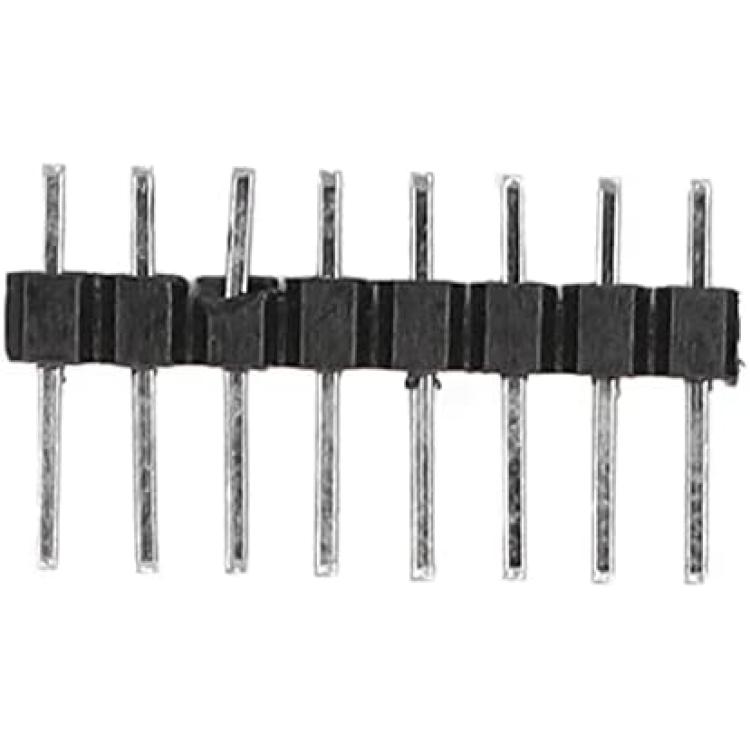

4 x Pin Header
Note:
Please supply power according to the use voltage, using other voltages may cause fire and product damage.
