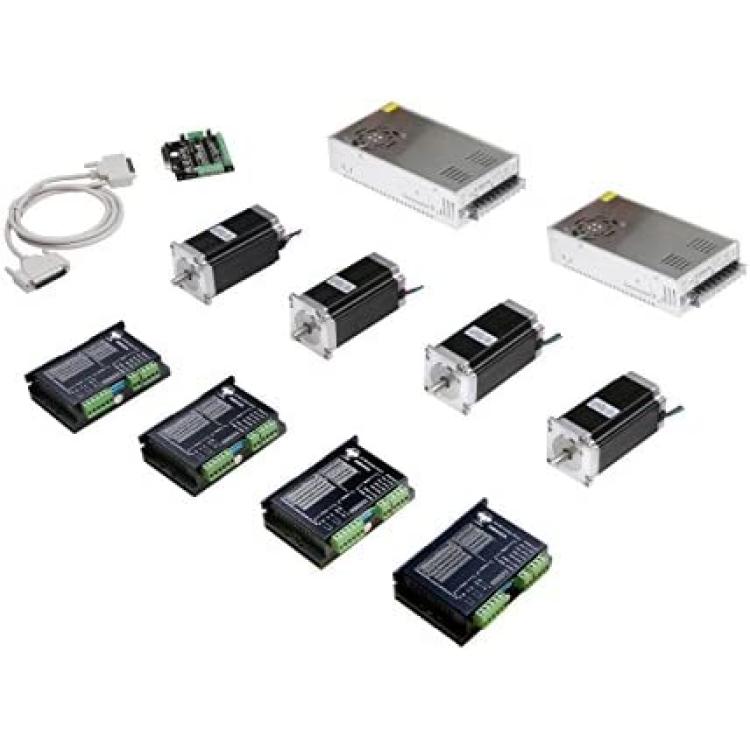

US Ship 4axis Nema23 stepper motor 425oz-in CNC 23HS9442 Longs Motor
About this product
*1.Nema 23 Stepper Motor: Nema 23 Stepper Motor Bipolar 112mm Body 12Ncm Torque 4 Lead W 4.2A with 1.8 Step angel 3.78V for CNC
*2.Stepper Motor Driver: DM542A Stepper Motor Driver 2 Phase 1.0A-4.2A Voltage 18-50VDC
*3.Power Supply: 350W(36VDC/9.7A)
*4.CNC Breakout Board and 1 PC Parallal Cable
*1.Nema 23 Stepper Motor: Nema 23 Stepper Motor Bipolar 112mm Body 12Ncm Torque 4 Lead W 4.2A with 1.8 Step angel 3.78V for CNC
Description

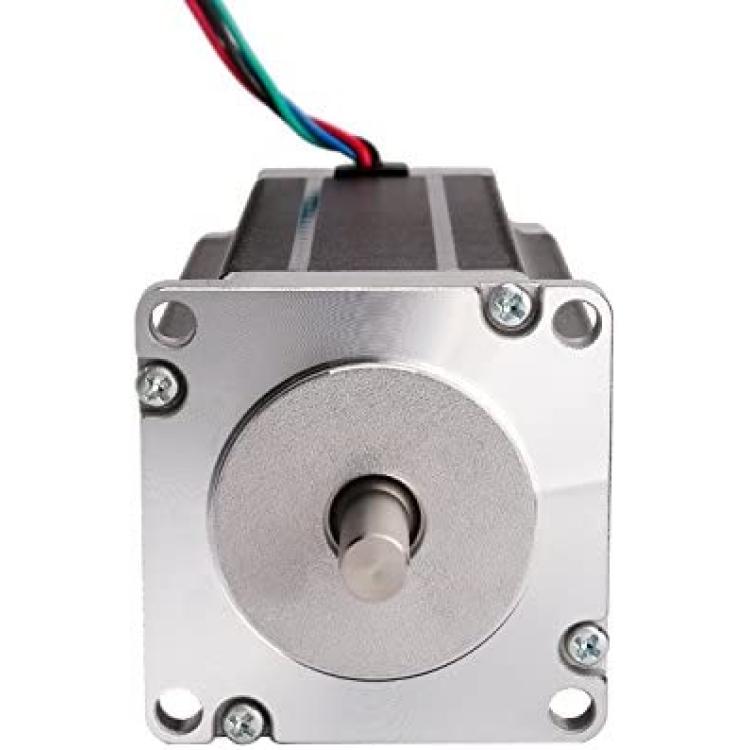

Nema 23Â Stepper Motor:
Frame Size: Nema 23
Phase: 2 Phase
Step Angle: 1.8 Degree
Current: 4.2 A
Rated Voltage: 3.78 V
Resistance: 0.9 Ohm/Phase
Inductance: 3.8Â mH/Phase
Holding Torque: 425oz-in (2.8N.m)
Dentent Torque: 12N.cm
Rotor Inertia: 800g.cm2
Number of Wire Leads: 4 (Black A+, Green A-,Red B+, Blue B-)
Weight: 1.7kg
Length: 112Â mm
Â
Stepper Motor Driver:
Average Current Control, 2-Phase Sinusoidal Output Current Drive
Supply Voltage from 18VDC to 50VDC
Opto-isolated Signal I/O
15Channels Subdivision and Automatic Idle-Current Reduction
8 Channels Output Phase Current Setting
Â

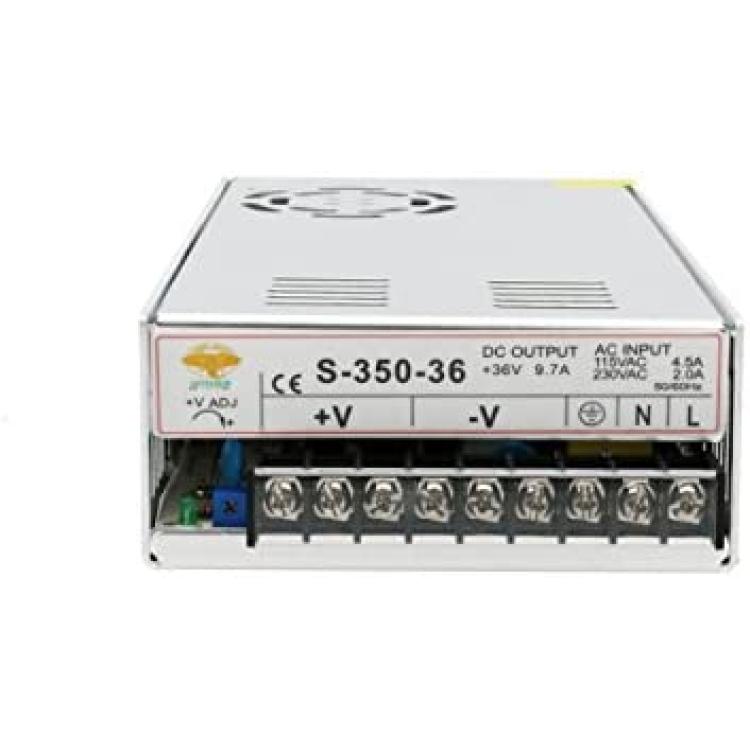

Power Supply:
350W-36V

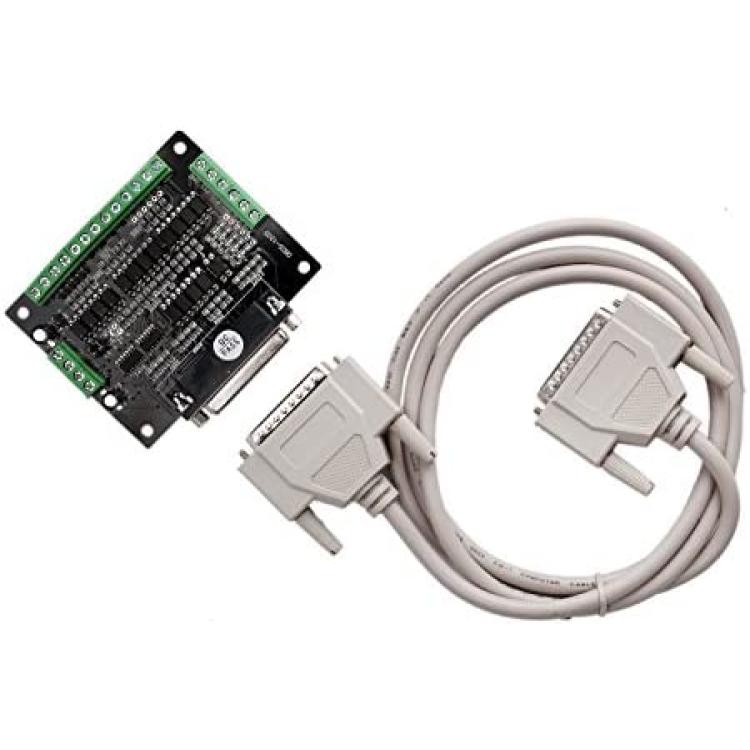

Breakout Board and One Pc Parallal Cable
Built in DB25 Male Connector
 DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17
DB25 Input Pin: P10,P11,P12,P13,P15.
DB25 GND Pin: P18-P25
Power supply: +5V DC
 Built in C-class Optical-coupler
 High quality with Surface-mount Tech
