L-faster 24V36V 350W Small Electric Motor Without Gearbox Scooter 25H Chain Drive with Chain Wheel and Freewheel Upgrade Electric Bicycle
Description
24V36V 350W Electric Scooter Brush DC Motor Kit MY1016 Engine With 25H Chain System Electric Bike Chain-drive Motor Replacement

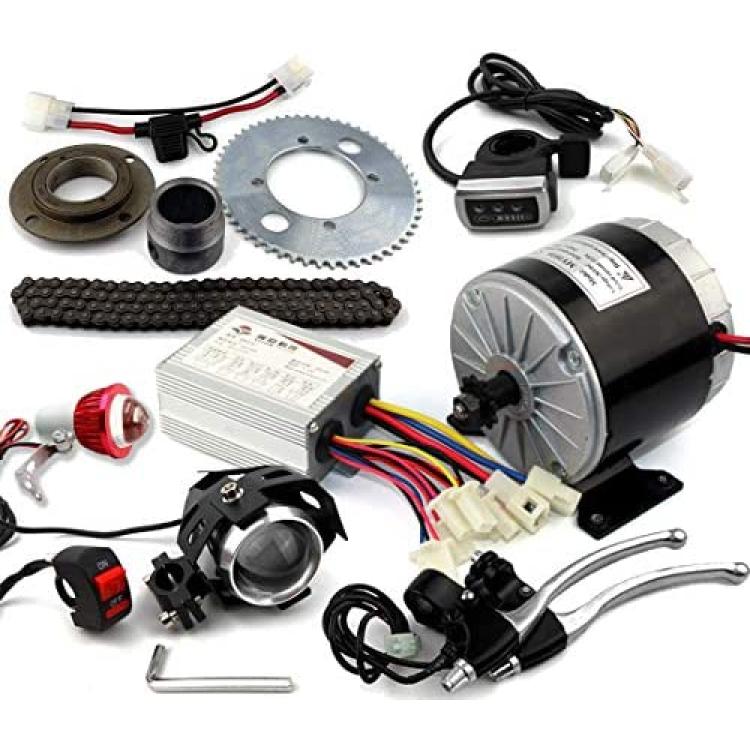

This item include:
1). 1Â x 350WÂ brush motor

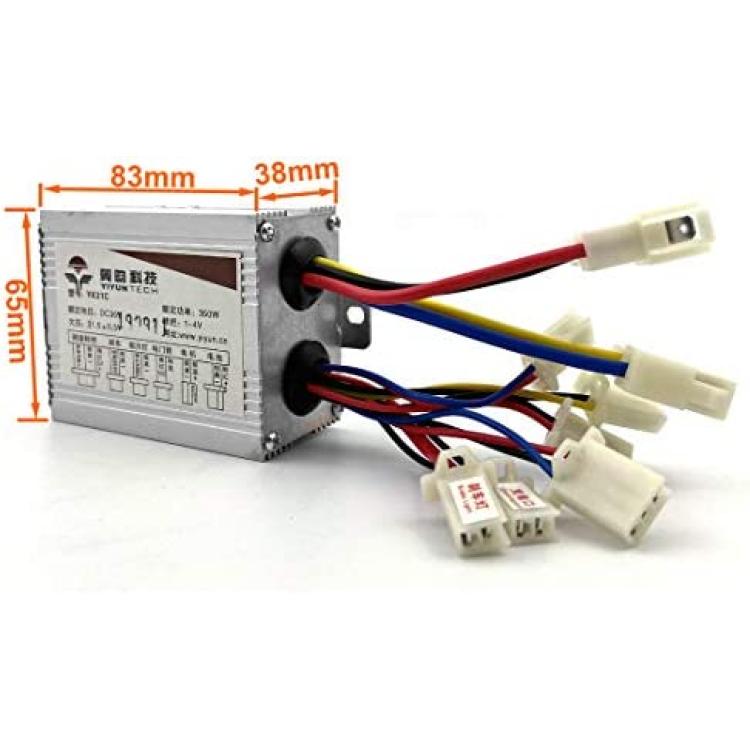

2). 1Â x Motor controller (with fuse wire)

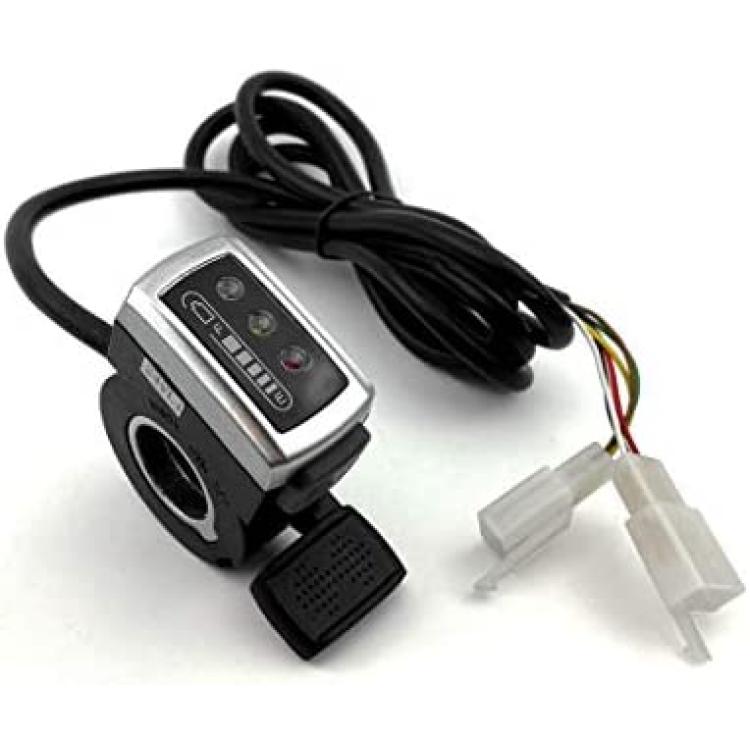

3). 1 x Key throttle handle (with battery voltmeter & key switch)

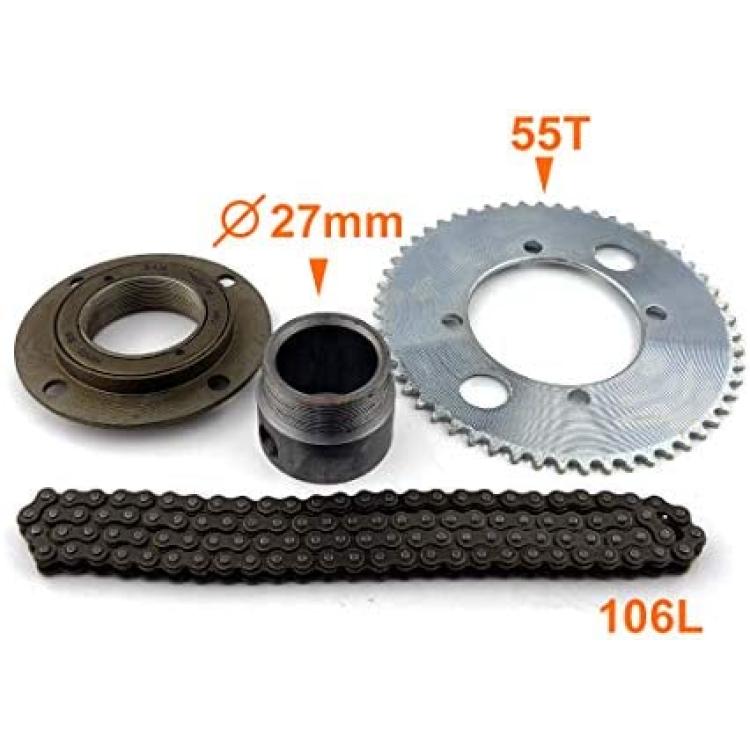

4). 1 x No-teeth freewheel
5). 1 x Chain wheel (55 teeth)
6). 1 x 25H chain (106 links)
7). 1 x Freewheel adapter (27mm)

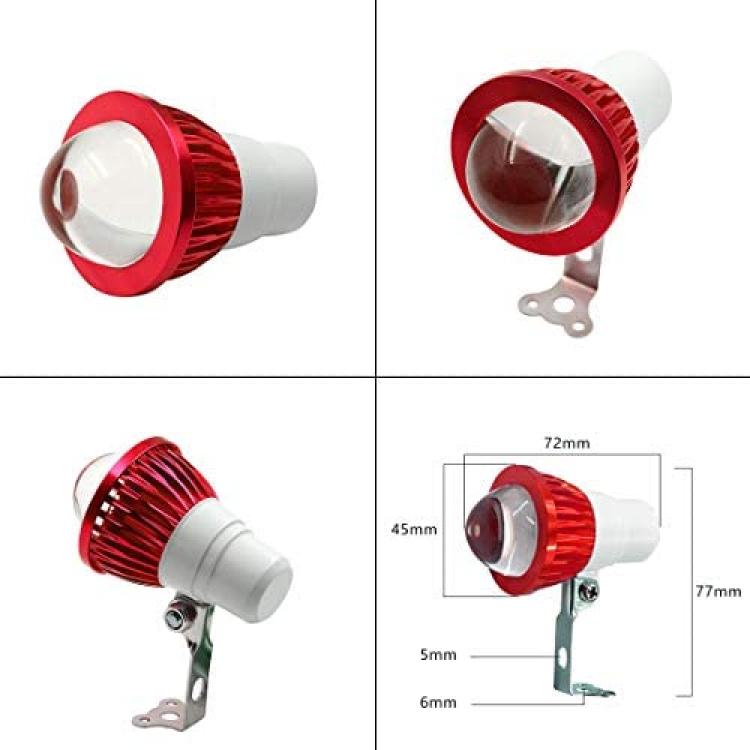

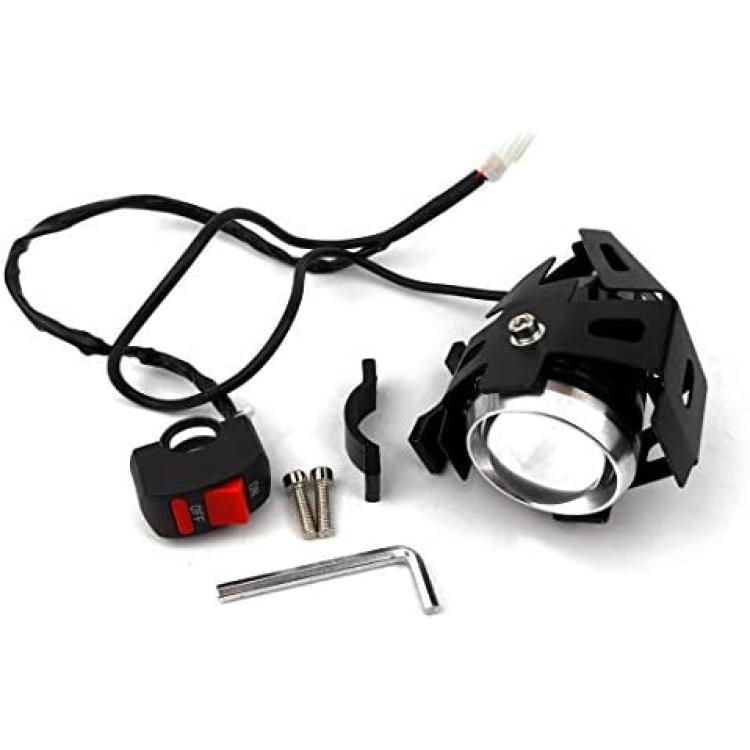

8). 1 x Headlight with switch

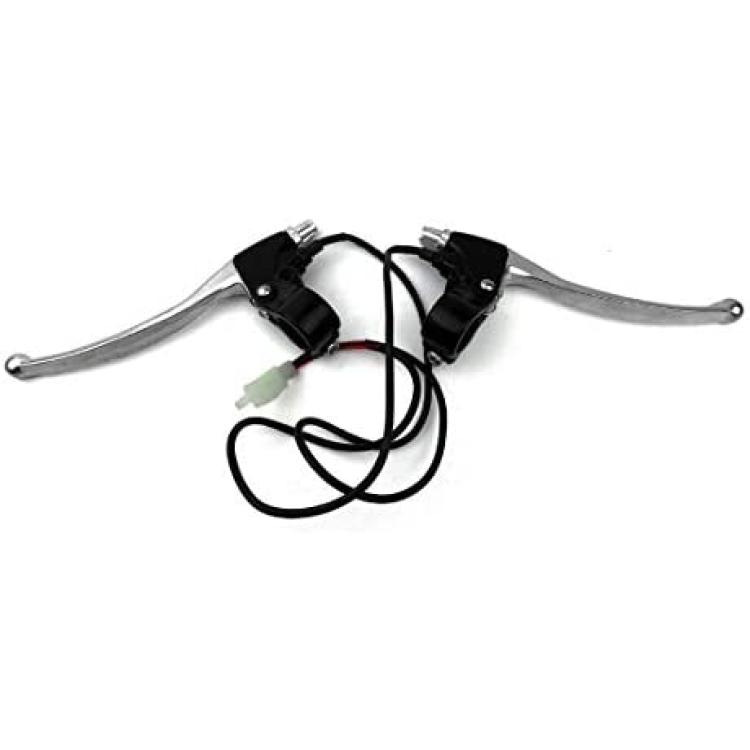

9). 1 x Brake lever
10). 1 x Brake light
 Note: this kit without battery and battery charger .
Motor specification:
Motor brand: UNITE
Motor model: MY1016
Rated voltage: 24V / 36V
Motor power: 350W
No loading current: 2A / 1.4A
Rated speed: 2750 rpm
Rated current: 19.2A / 12.8A
Motor weight: 2.45 kg
Motor sprocket: 11T 25H sprocket
