L-faster 6.5 Inch 350W Brushless Hub Motor Wheel for Homemade Electric Scooter Brushless Controller with Cruise and Thumb Accelerator

6.5 Inch 350W Brushless Hub Motor Wheel For Homemade Electric Scooter Brushless Controller With Cruise And Thumb Accelerator

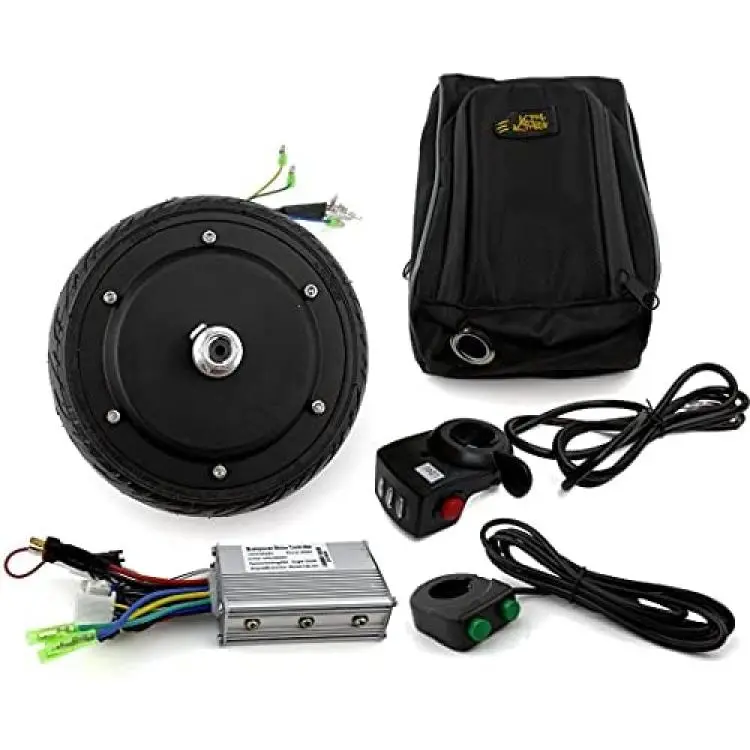

The kit includes:

1). 1x 6.5 inch 350W motor wheel

2). 1x Controller

3). 1x Thumb throttle

4). 1x Button switch (electric brake & cruise)

5). 1x Bag (no battery)

6). Some cable ties and pipe



Note: this kit without battery and battery charger .



---------------------------------

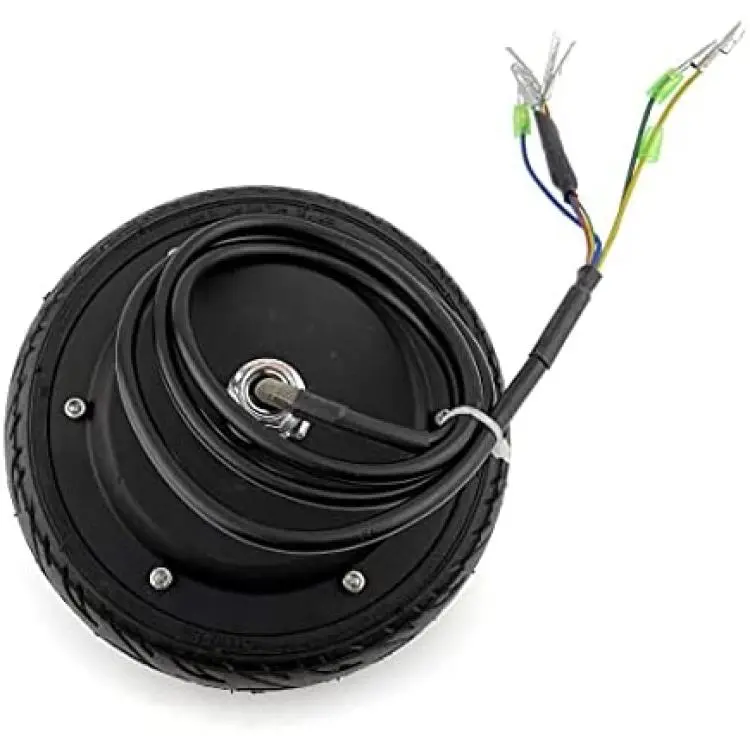

This is a 6.5" brushless hub motor for electric scooter .

It is a gearless brushless hub motor. It is designed for high speed electric scooter or other high speed electric vehicles.

This motor with hall sensor, and its current power is 350W.

Motor specification

Model: FLD-65

Voltage: 24 / 36 / 48 Volt

Output: 350 Watt

Max speed: 30 KM/H

Rated Efficiency: 79%

Rated Current: 14.5A / 9.8A / 7.3A

Max Torque: 11 N.m

Max Loading: 75 KG

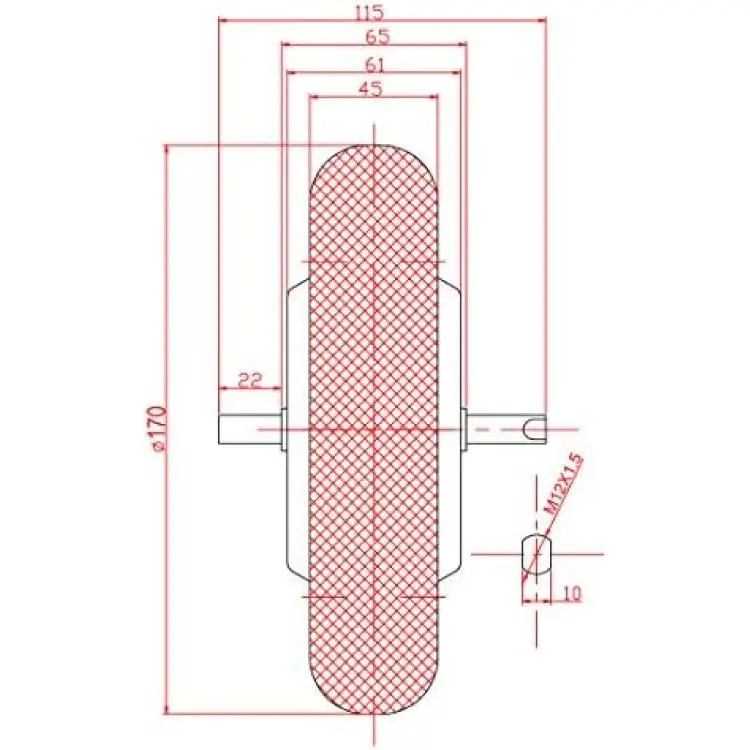

Wheel Size: 6.5 inch (outer diameter about 170mm)

Net Weight: 3 KG

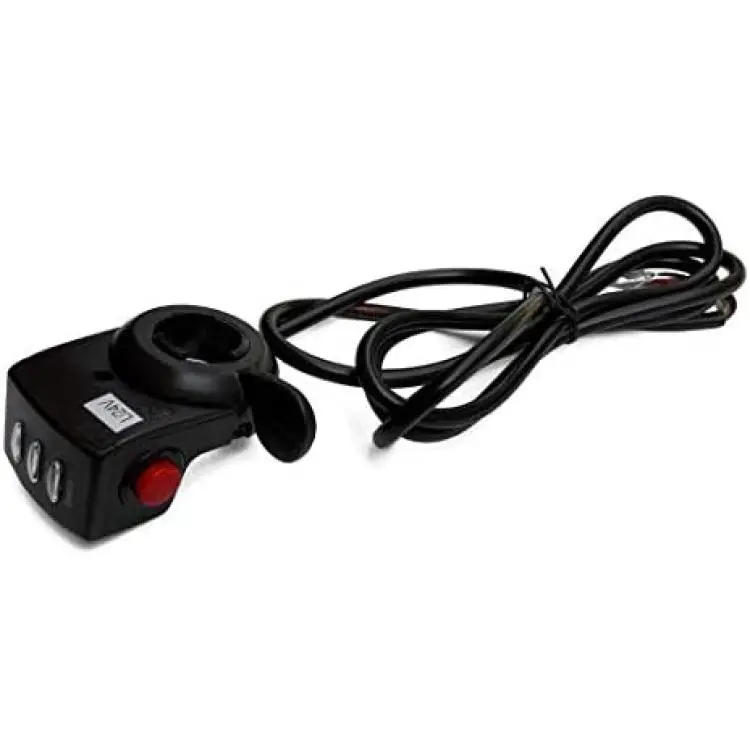

Thumb throttle (with power switch button and battery indicator lights):

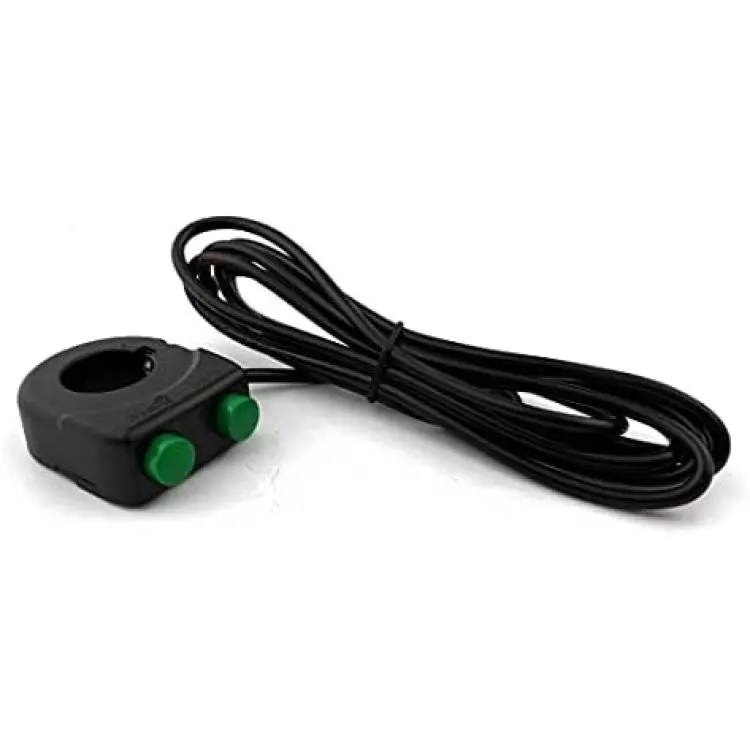

Electric brake & cruise switch:

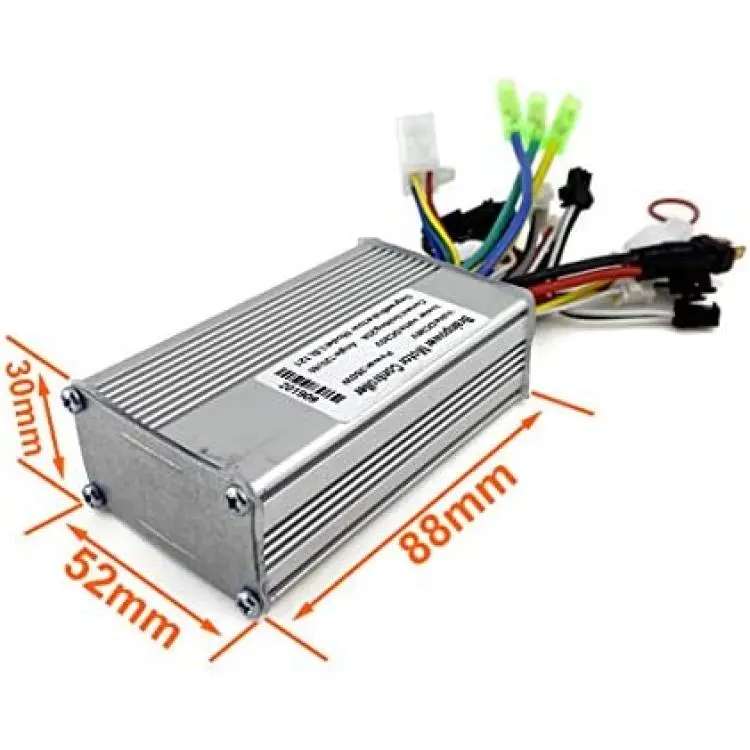

Controller:

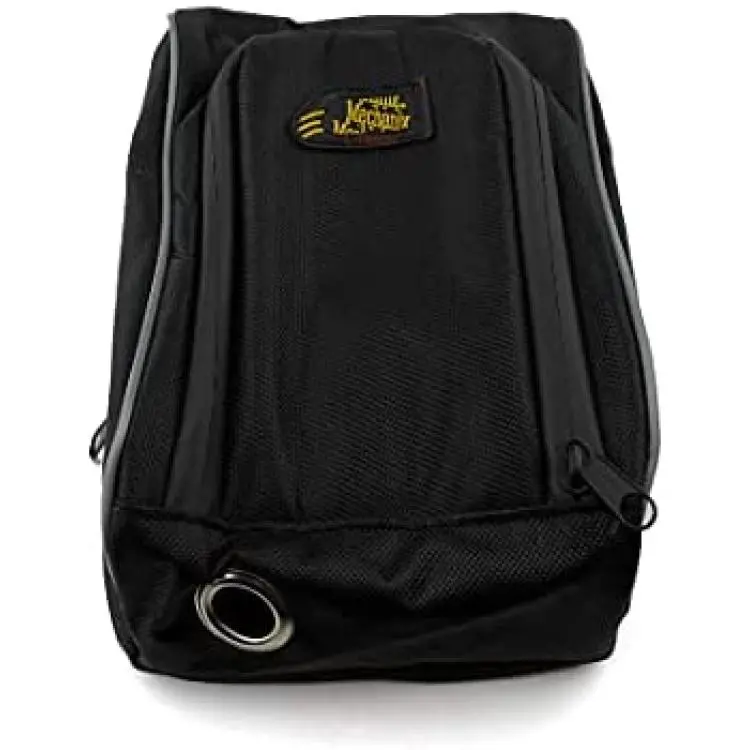

Battery bag:

(outer dimension is about 215x15x95 mm, fit the battery dimension 200x150x85 mm)

Cable ties and pipe:

8-inch Motor wheel mounted on electric scooter for reference:
