NBPower Easy-fit Pedal Assist PAS SystemSpeed Sensor Connect Motor Cycling Accessory EBike Detachable Parts for Elecrtic Bicycle/EBike Kit

1. Function introduce

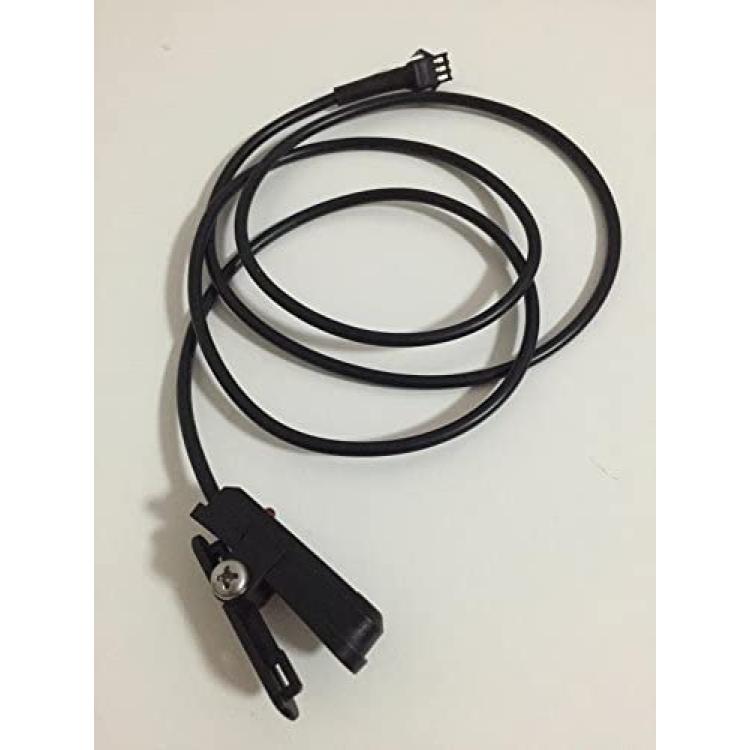

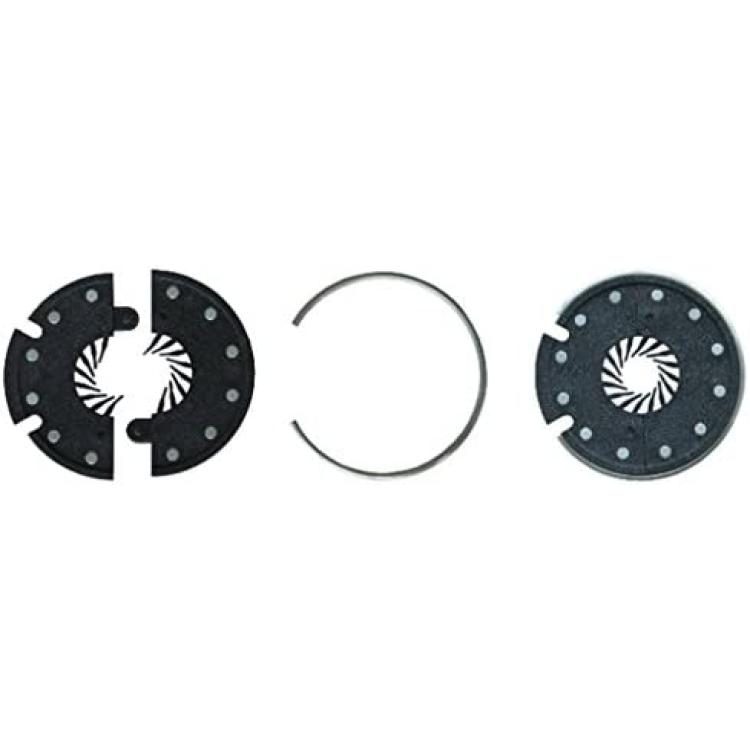

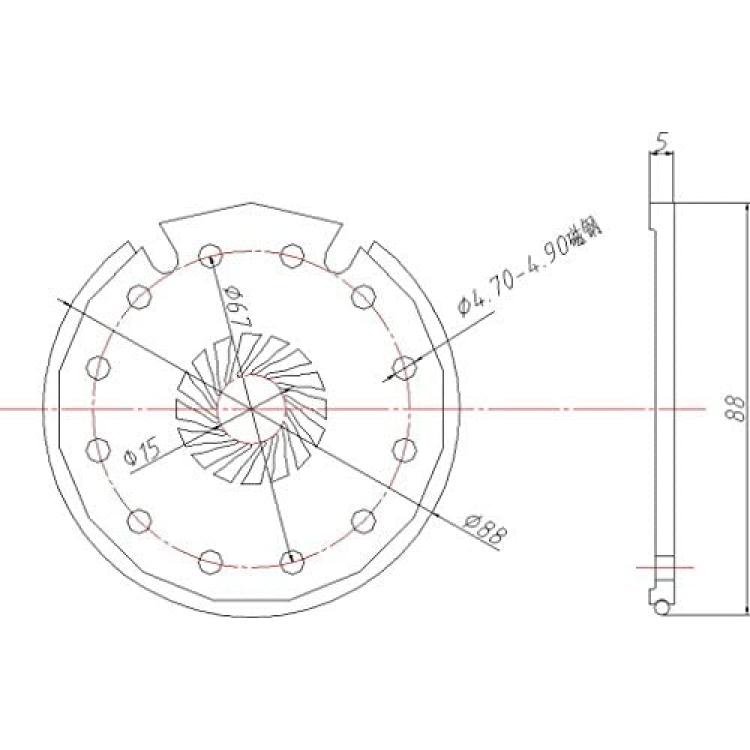

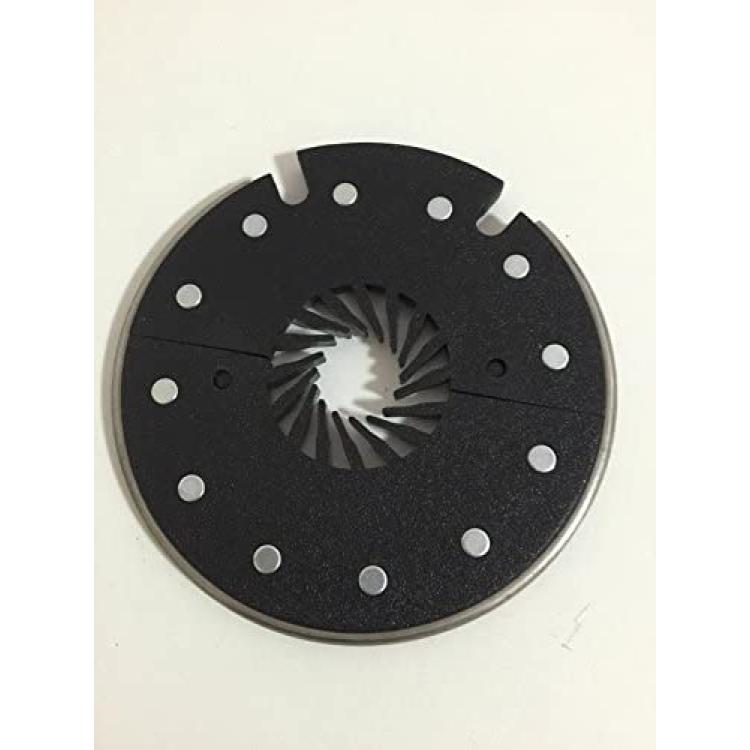

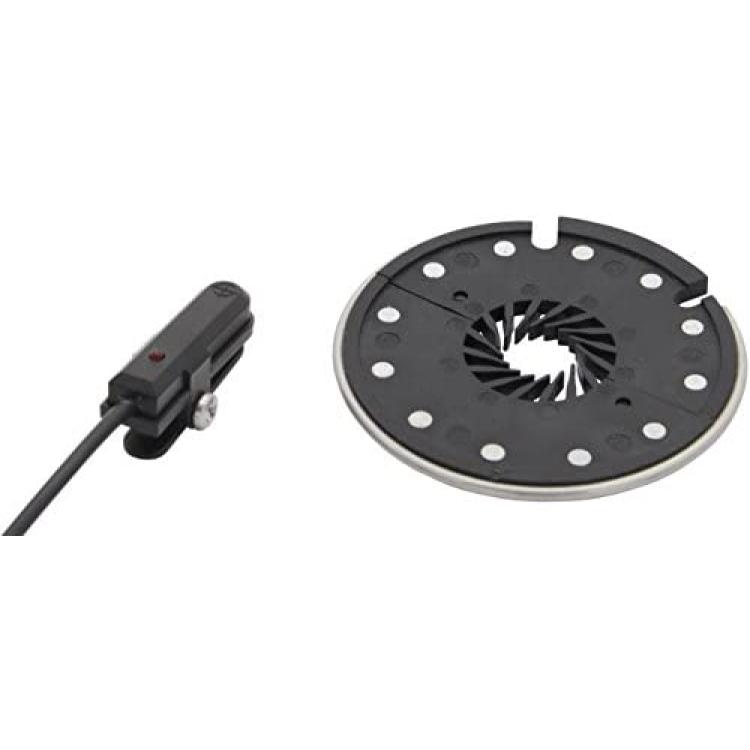

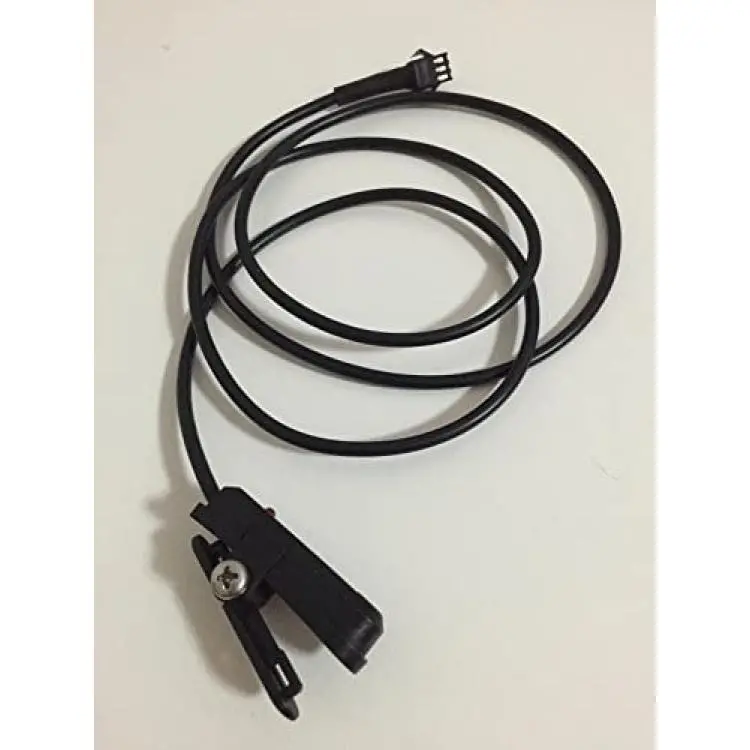

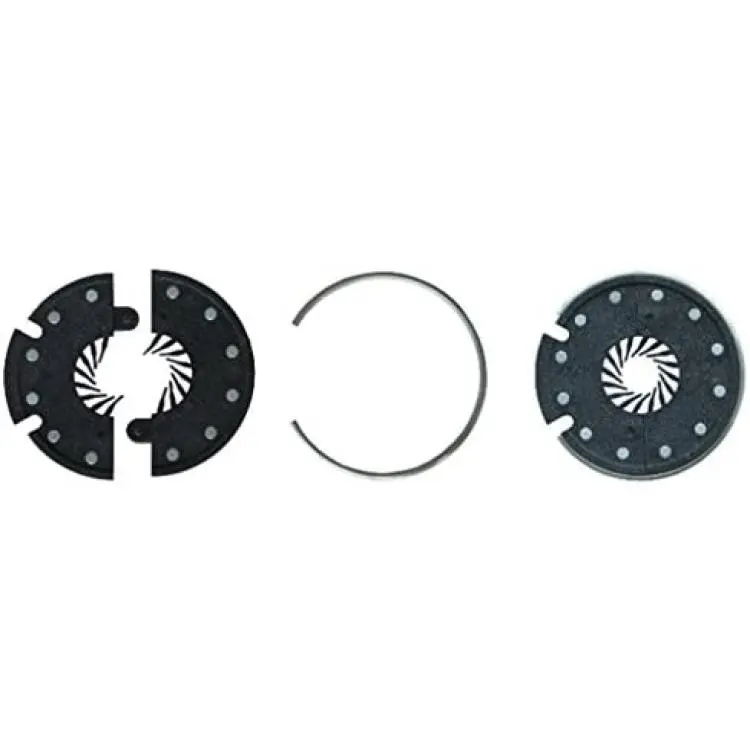

PAS is a pedal assistant sensor adapted quickly assembled electric bicycles, which can be main used for the signal of power assisting for the bike.with equipped with DIY disc of 12 magnets, offers higher accuracy and further detection distance which can reach 6mm.it have more sensitive 2-3 times than that with the single Hall sensor. When pedal turns forwards, the sensor outputs a pulse signal and a red LED indicator flashes on the sensor. . When pedal turns back, the sensor outputs low level signal, the red LED indicator is not lit. So that users can check any failure of sensor. .

2. Installation Instruction

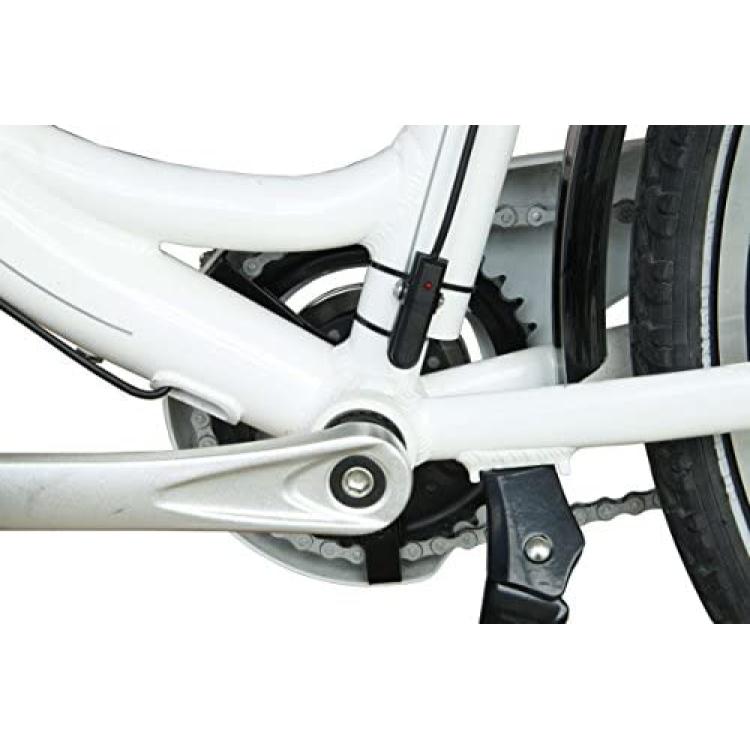

Fix the sensor beside the frame of the bikeand put the disk through the pedal. To get a high sensitivity the magnetic dot of the disk must be faced to the cross mark and adjust angle trestle and sensor.

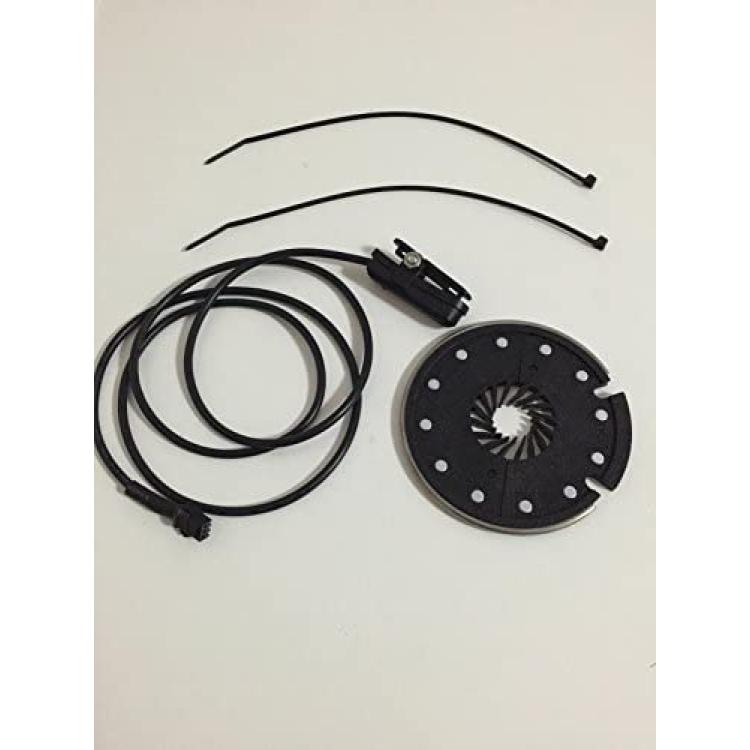

The effective sense distance of the speed sensor is 6 mm to magnet. Install the speed sensor by ribbon tapes.
