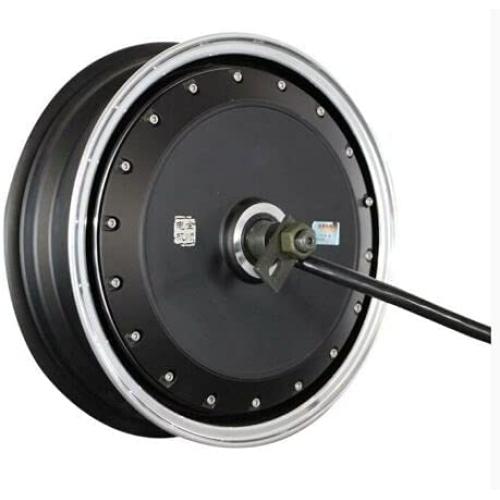

Generic High Powered 5KW 72V Brushless Electric Motorcycle Scooter Hub Motor 50-65mph
Description
BRAND NEW SHIPS DIRECT FROM THE MANUFACTURER GEARLESS, CE CERTIFIED APPROX. SPEED: 80-105KM/H OR 50-65MPH WE CAN UPGRADE MOTOR TO 96V - 144V (upcharge applies) AVAILABLE IN 12IN. & 10IN. RIM SIZE Motor Design: Double axle with 13inch moped Aluminum rim (integrated) Rim size:13x3.5inch, Matching tire 130/60-13. Magnet Height: 50mm, 16 pole pairs Stator: Aluminmum Core Rated Power: 5000W (could be 21000W peak in few seconds) Rated Voltage: 72V (96V - 144V Available) Speed: 80-100KPH kV: 6.0/9.0/13.0/14.9/18.0/19.4 etc. Max Torque: approx 280N.m Max Efficiency: 86-91 Percent Continuous Battery Current: 80-100A Thermic Probe: KTY83/122 (as default, optional) Working Temperature: 70-120 Degree C , peak 150 Degree C Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default) Drop-outs/Rear Fork Width for installation: 200mm Dual Hall Set with waterproof connectors 16mm² Cross Section of Phase Wire (not include insulation layer) Hall Sensor Phasing angle: 120 degree Waterproof Grade: IP54 Color: Black (as default), Yellow or White/Luminous (extra 5.0) N.W./G.W.: 21.8kg/23.5kg INCLUDES: 1. Motor Rim
