8" Electric Brushless Geared Hub Motor 24V 250W High Torque But Low Speed Electric Scooter Hub Motor Wheel

8" Electric Brushless Geared Hub Motor 24V 250W High Torque But Low Speed Electric Scooter Hub Motor Wheel

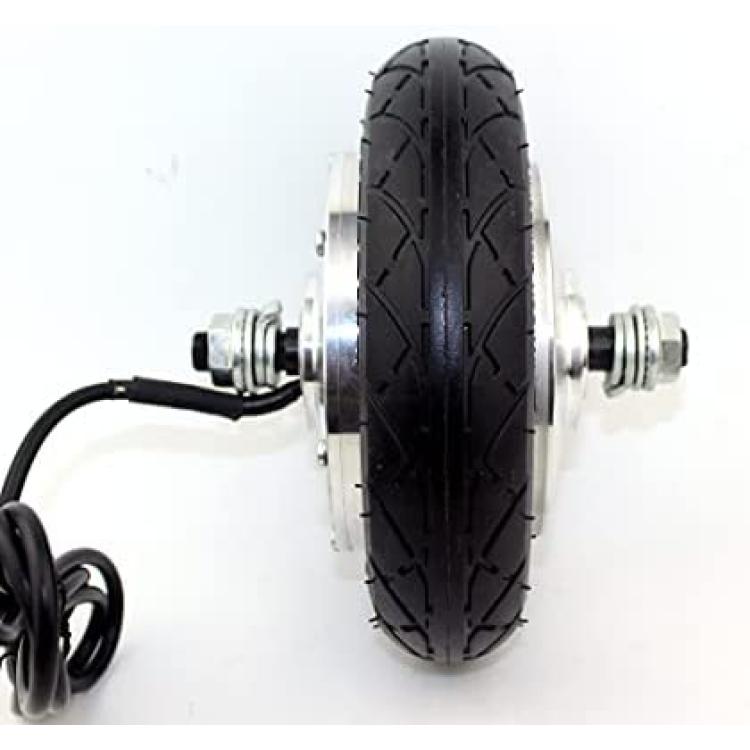

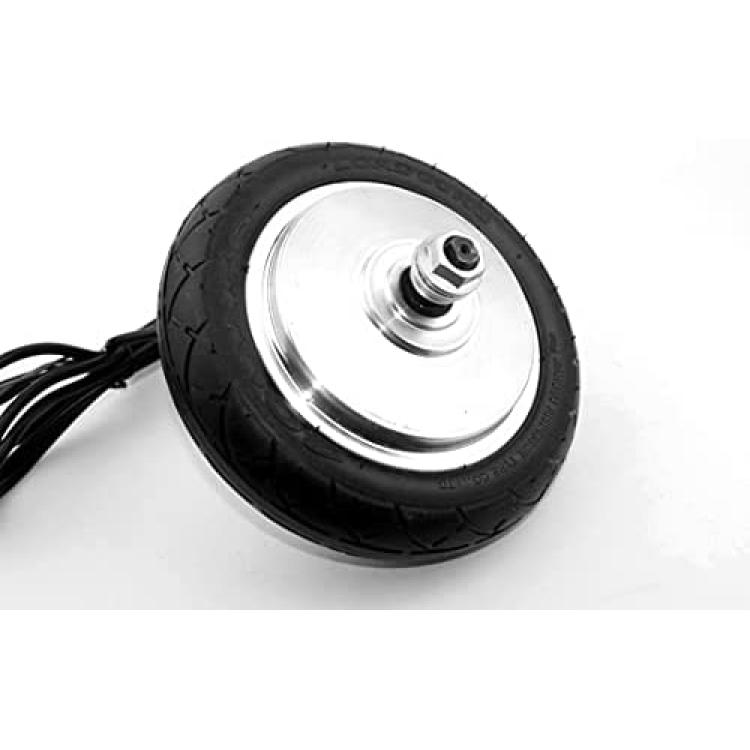

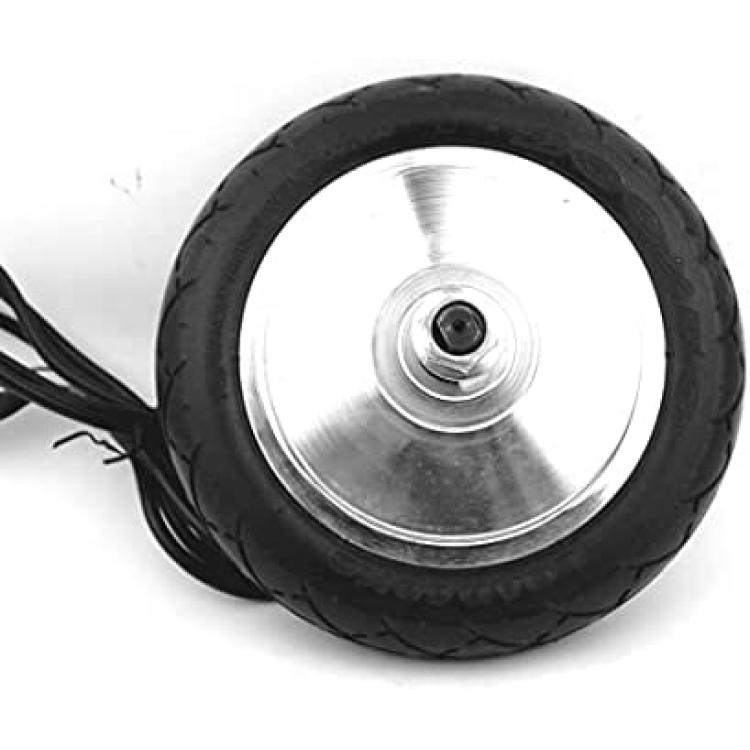

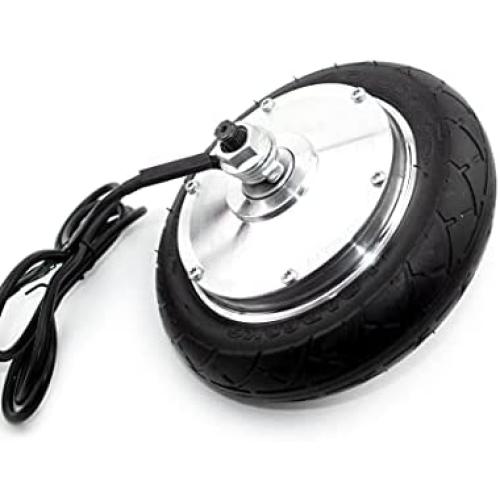

This is 8" brushless geared hub motor for electric scooter



This is a geared brushless hub motor. It is designed for low-speed electric scooter.

The current power is 250W, max loading is 100KG.

Please note it is a hall sensor motor, which has total 8 wires.

Specification

Model: L-ND8GEAR

Voltage: 24 Volt

Output: 250 Watt

Rotate: 400 Rpm

Rated Efficiency: ?79%

Rated Current: 10A

Rated Torque: 6 N.m

Max Loading: 100 KG

Wheel Size: 8 inch

We also have this motor for 6.5 inch, if you want, please contact me, thanks a lot.
