Caroute S300-48V 160LB Electric Boat Trolling Motor with Speed Controller Large Thrust Saltwater 160 Pound for DIY
Description
S300-48v has been designed for dinghies and sailboats up to 3 tons. It is s 2000 watt input power and 160lb thrust.
S300 high-efficiency contributes to more thrust, greater speed and ultra-longer operating time and superior range.

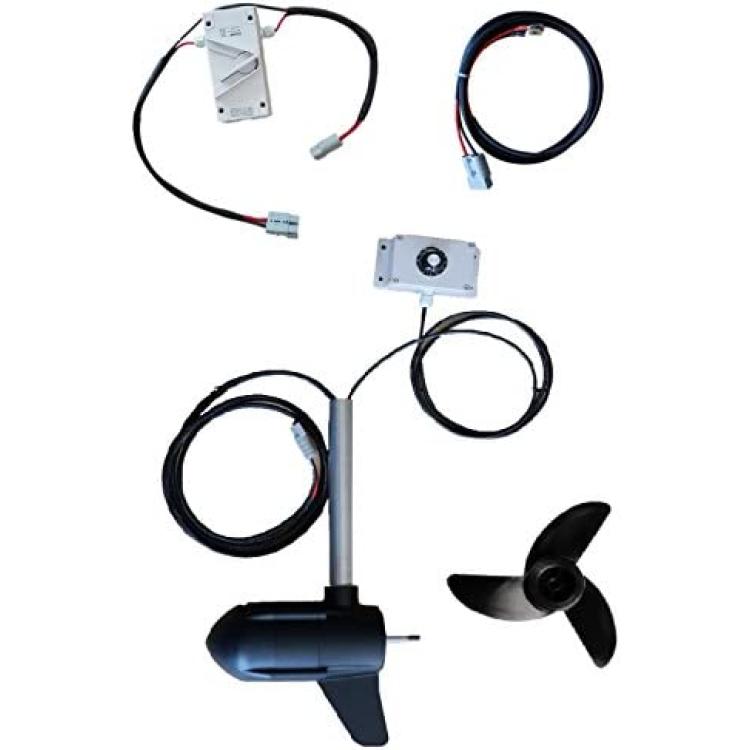

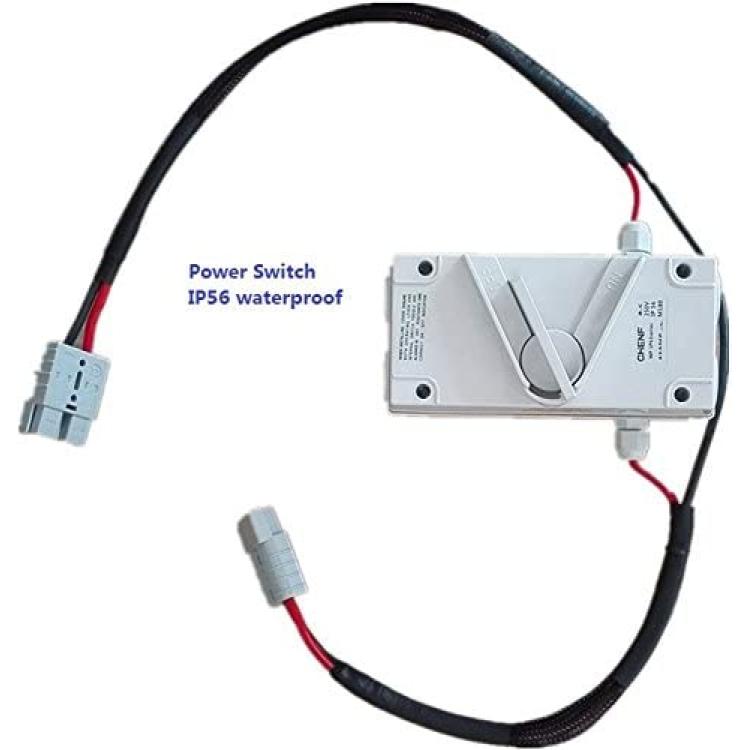

S300 includes a power switch with IP56 waterproof grade, a speed controller and premium battery cables with a quick connector for safe and convenient appliance.

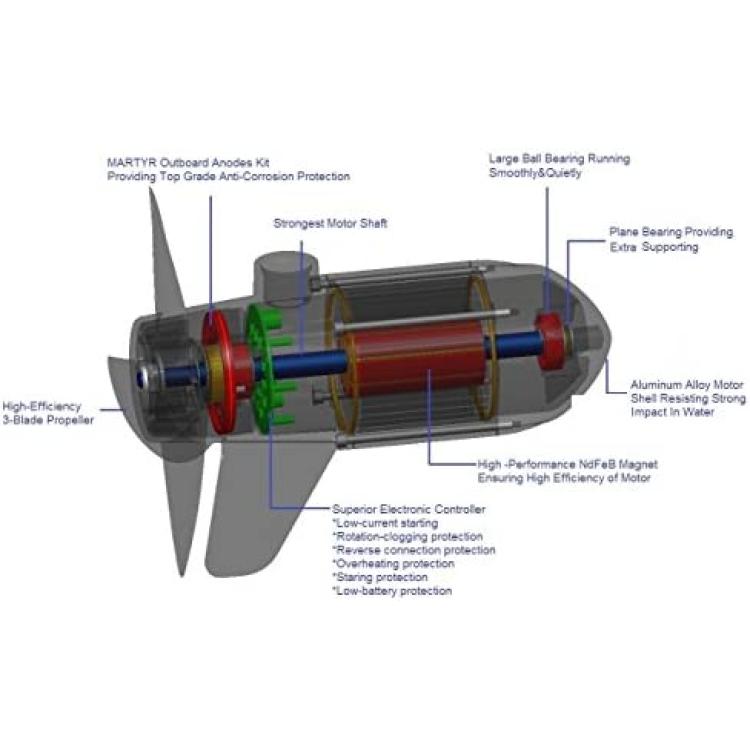

S300 adopts unique brushless technology, which distinguish it from competition.Other trolling motors use conventional commutator brushes which eventually wear out, consume additional power and generate unnecessary heat. S300 brushless electric motors use an electronic controller instead, providing these significant advantages:
Efficiency values is significantly higher 30%~60%
Much higher torque values at lower battery currents
5 times longer service life and no periodic maintenance required
Less noise, cooler operation and reduced battery consumption
Specifications
Maximum thrust: 160 pound
Input power:2000W
Maximum efficiency:65%
Volts:48V
Maximum current:43Amp
Maximum propeller speed:1500 RPM
Shaft: Stainless steel, standard length 36”(if need 10” or 42" , leave message, no cost. If other length, contact us.)
Transom mount: NOT included. Order in Amazon if need. We assemble it to motor shaft
Control: Speed Controller
Speeds: Variable
Motor unit cable length:39”
Power switch cable length:20” each side
Speed controller cable length:79”

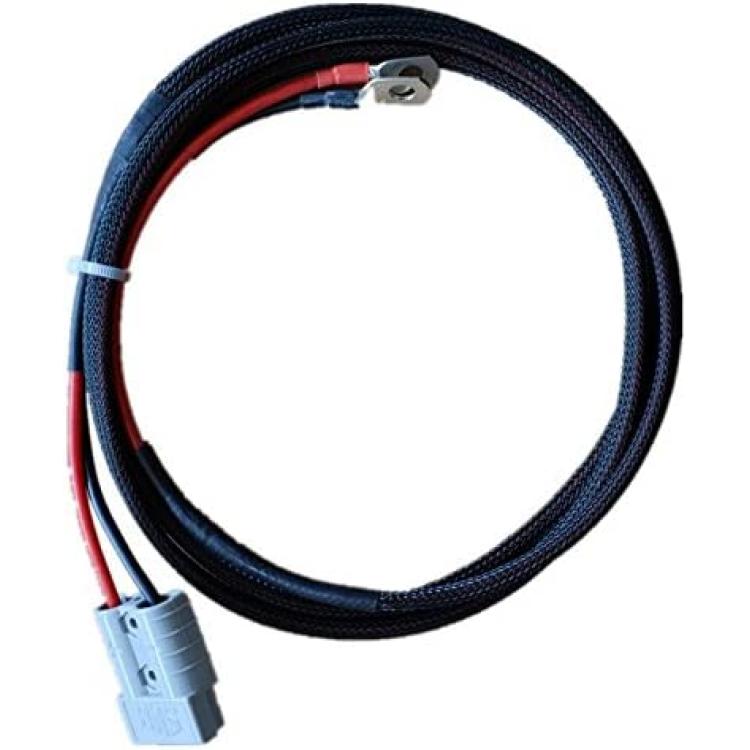

Battery cable length:71”
Operating Data(use 4*12V/100Ah batteries)
Slow Speed(MPH):1-2,Runtime(hours):45
Full speed(MPH):5 1/2-7,Run time(hours):2
Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.
Battery Instruction (battery not included)
Four 12V batteries or two 24V batteries series connection
