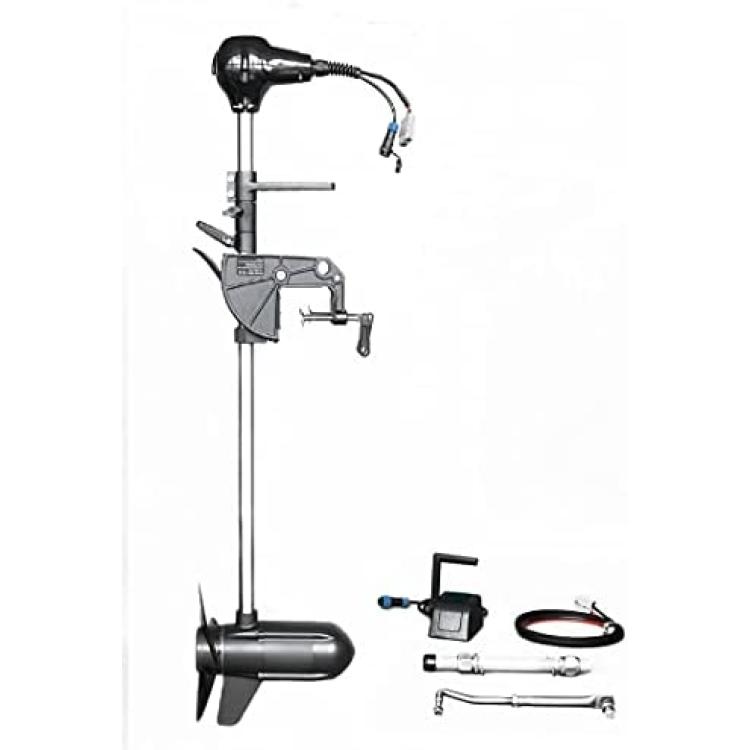

Caroute W300-24V 160LB Brushless Electric Boat Trolling Motor for Steering Wheel Control Large Thrust Saltwater 160 Pound

W300-24v has been designed for boat up to 3 tons. It is 2000 watt input power and 160lb thrust.

W300 high-efficiency contributes to more thrust, greater speed and ultra-longer operating time and superior range.

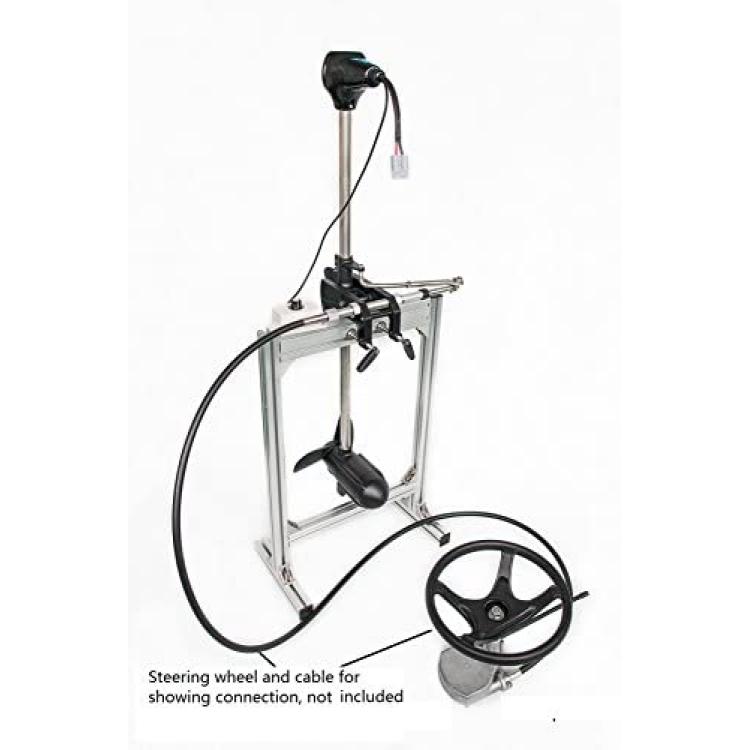

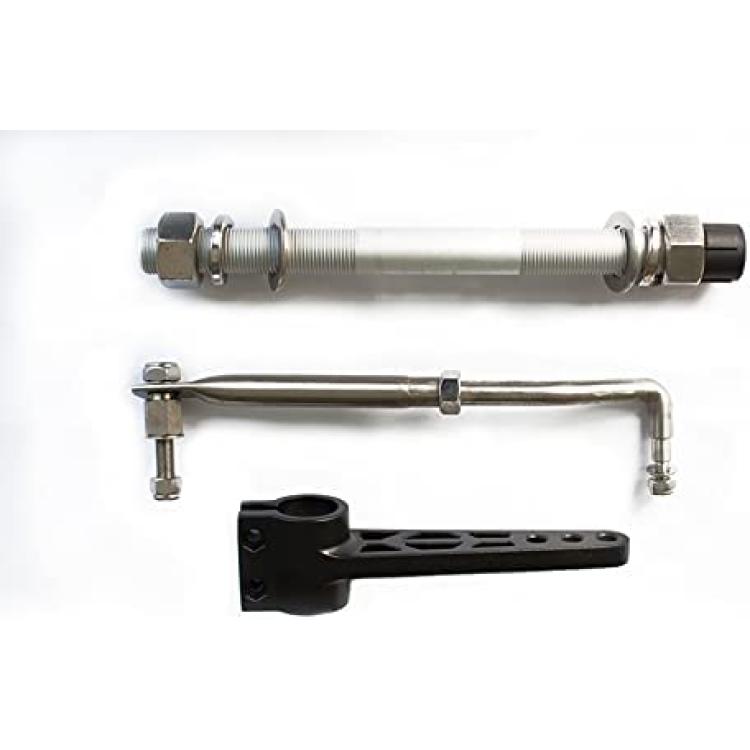

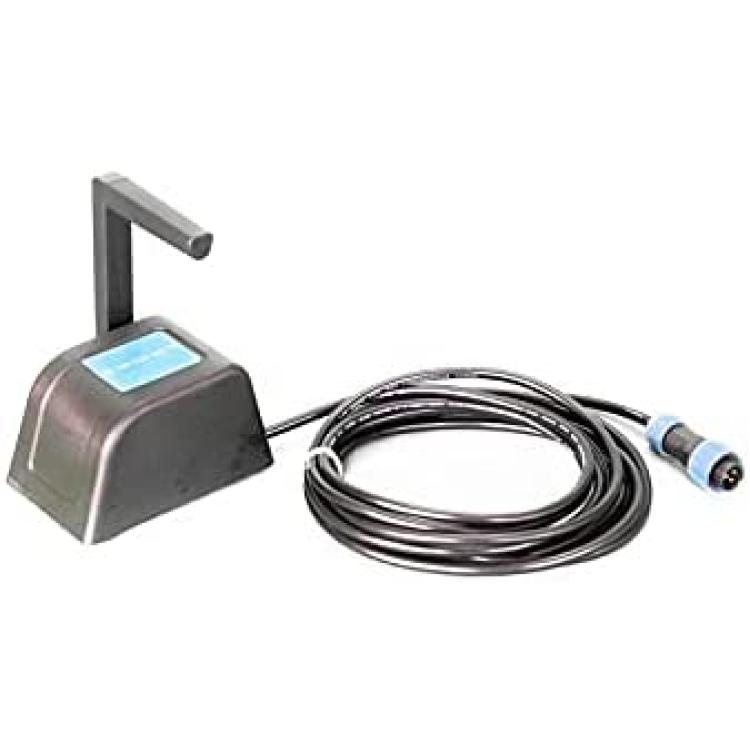

W300 includes connection parts for connecting steering wheel and cable, a speed controller and an aluminum transom mount for fast mounting on boat.

Comparing with the competition, Caroute adopts optimized brushless motor designs:
Advanced brushless technology
No reducer, high efficiency and quiet
Internal IC control board and water cooled
Rugged engineering & reliable performance.

Specifications
Maximum thrust: 160 pound
Input power:2000W
Maximum efficiency:65%
Volts: 24V
Maximum current:80 Amp
Maximum proper speed:1500 RPM
Maximum torque:10N.M
Shaft: Stainless steel, standard length 36”(if need 42”, 32" or 24”, leave message, no extra cost. If other length, contact us.)

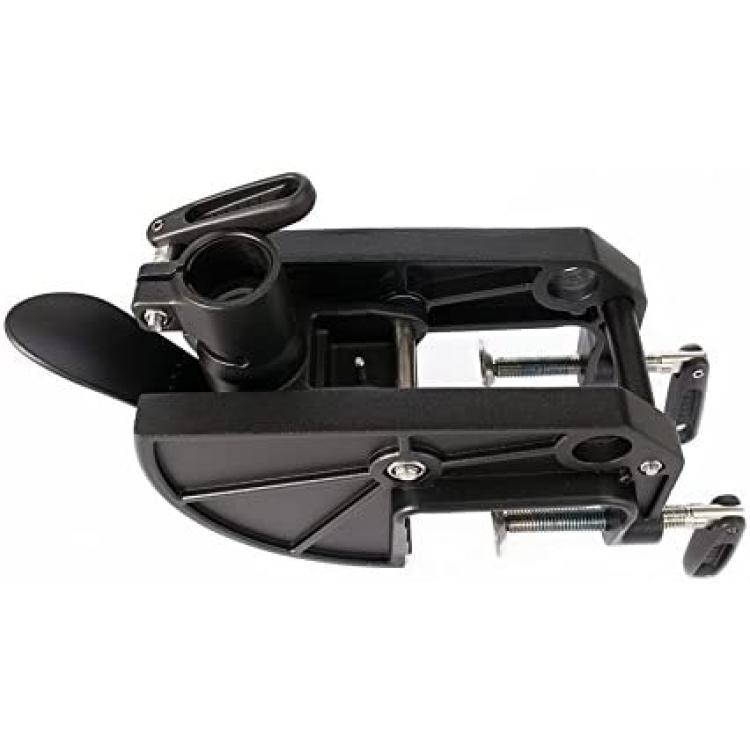

Mount: Aluminum transom mount
Speeds: Variable
Speed controller cable length:79”
Battery cable length:71”

Operating Data (use 2*12V/150Ah batteries)
Slow Speed(MPH):1-2,Runtime(hours):45
Full speed(MPH):5 1/2-7,Run time(hours):1 1/2
Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

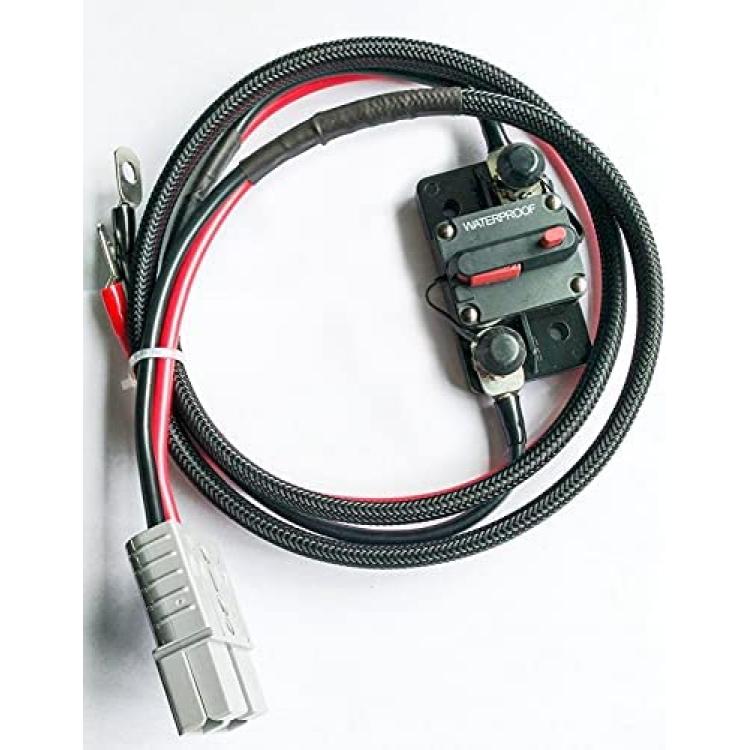

Battery Instruction (battery not included)
Two 12V batteries series connection or One 24V battery
