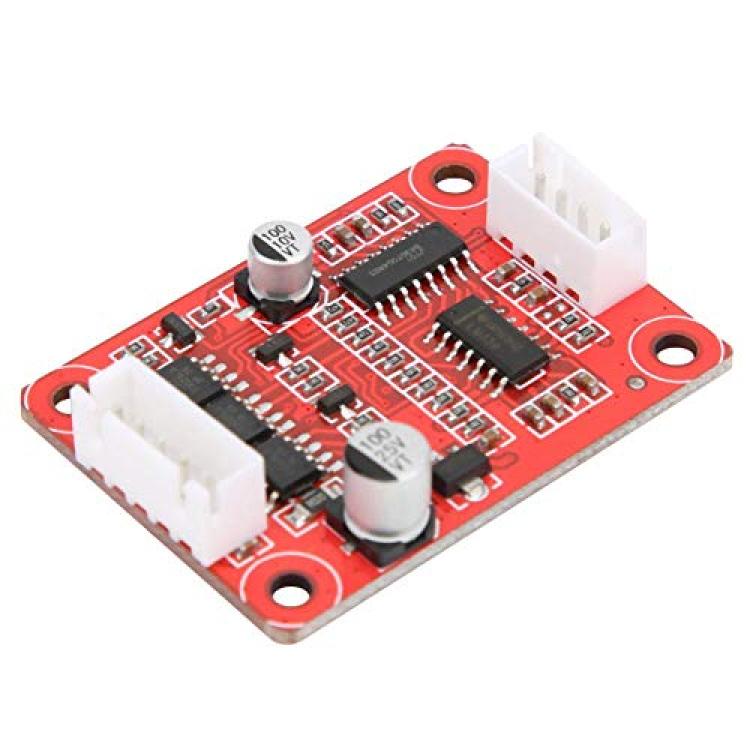

FTVOGUE DC7.5V-18V 30W Brushless Motor Controller Motor Driving Board CW CCW Rotation

Feature:

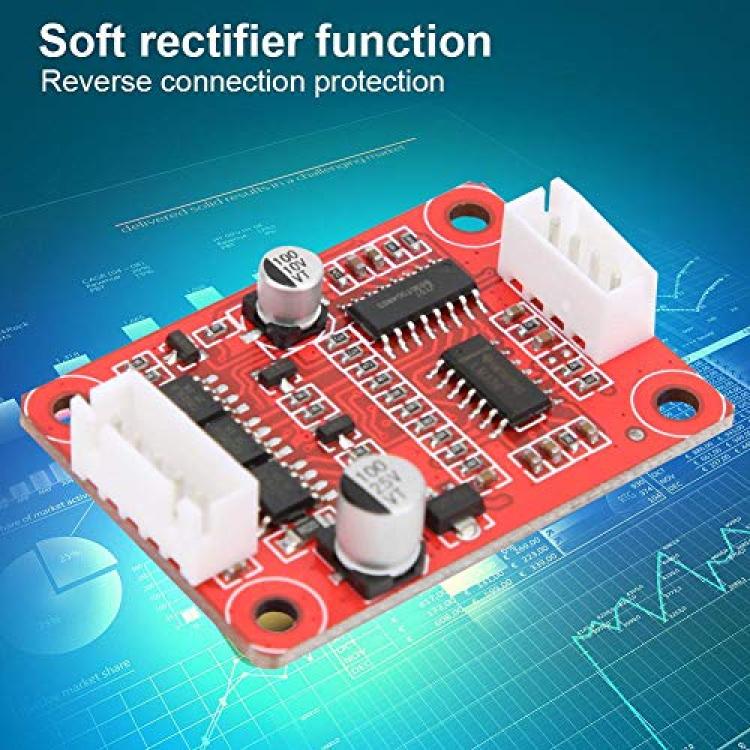

1. The controller is integrates with soft rectifier function.
2. With over current protection and reverse connection protection.
3. The board can control the motor speed during 5~100%.
4. With a potentiometer to adjust the speed of the motor.
5. The controller board can also control the rotation direction of the motor.

Specification:
Item Type:Motor Driver Board
Working voltage: DC7.5V-18V
Working current: 3A
Speed voltage: 0.25V-5V
Speed range: 5%-100%
Drive power: 30W

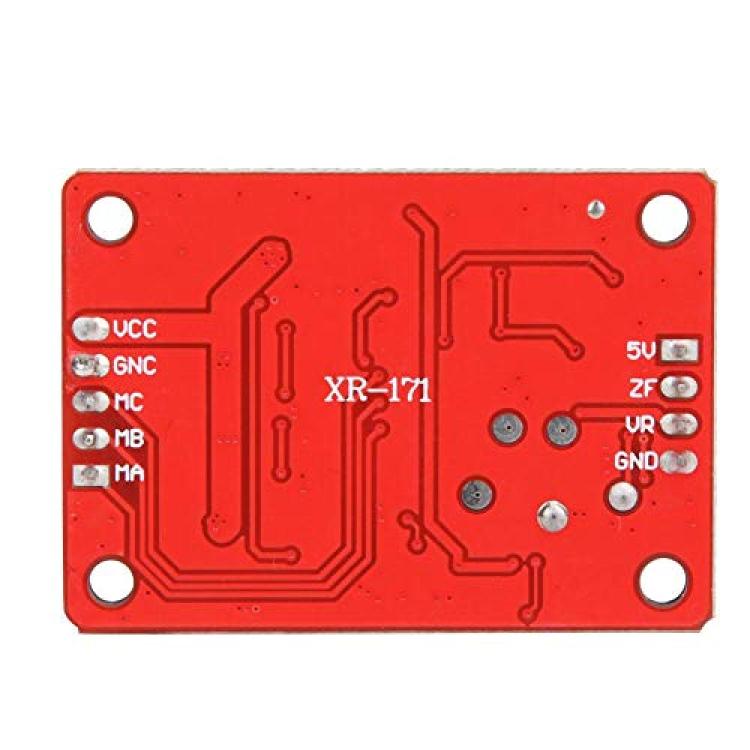

Wiring instructions:
1. Control terminal:
5V: Driver board output voltage, external speed potentiometer when used (empty when not in use)
ZF: Motor rotation direction control terminal, grounding or 5V can change the direction of the motor (can be left, the steering is fixed)
VR: speed signal input, voltage 0.25V-5V (when the voltage of the motor is less than 0.25V the motor does not rotate)
GND: shared control terminal
2, the output:
Power +: Connect the positive pole of the power supply, the voltage is 7.5volts 18V ---
Power - : Power ground, then power negative
MA / U: Turn off every three wires of the motor
MB / V: every three lines of the motor
MC / W: every three lines of the motor

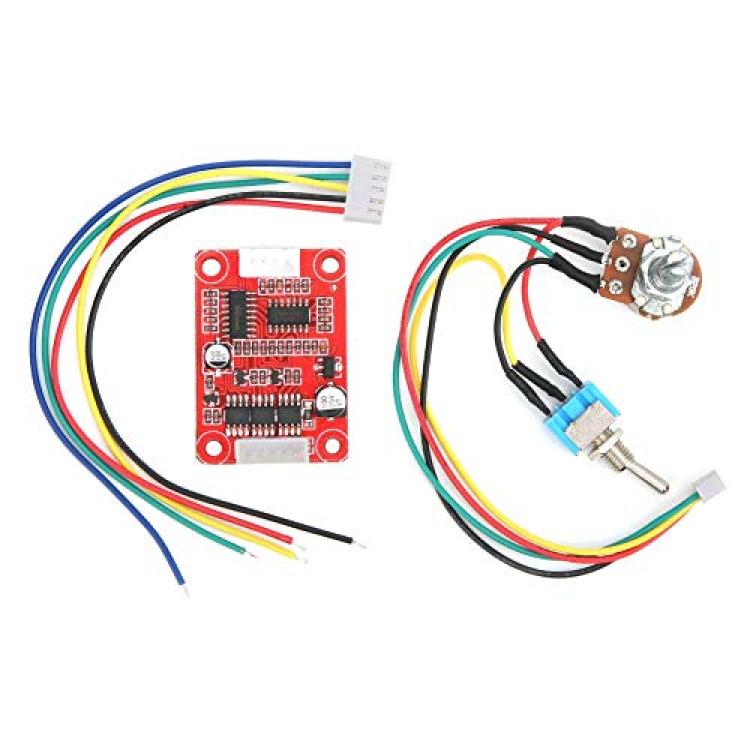

Package List:
1 x Brushless Motor Driver Board

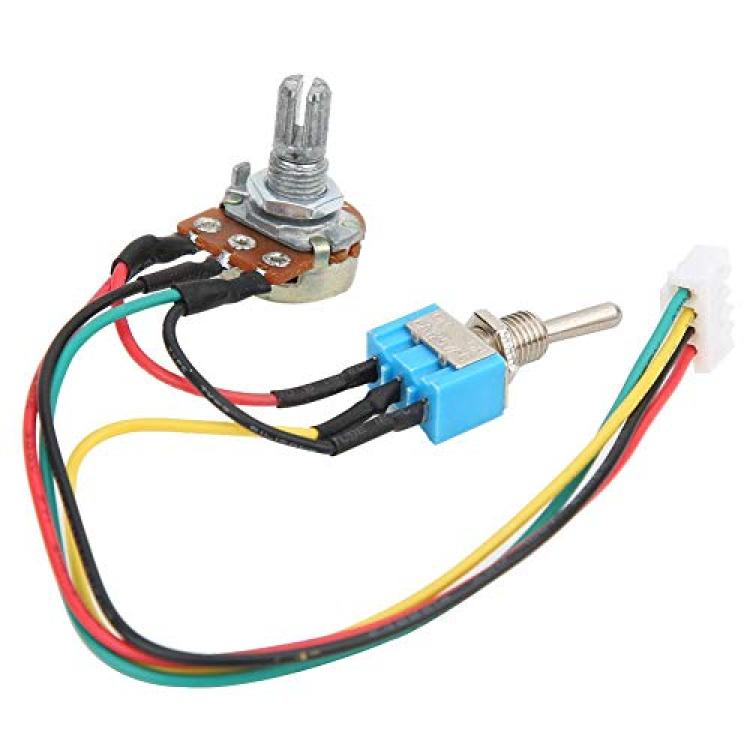

1 x Speed Adjuster + Positive and Negative Switch
1 x 5Pin Output Control Cable(Random Color)

Note:
In order to drive the motor better and more efficiently, we have divided it into 2 specifications.(Can be programmed)1, 12V ordinary, working voltage range 7.5V---18V, the highest speed 3000 rpm2, 12V high speed, working voltage range 7.5V---18V, the highest speed reaches 50,000 rpm
