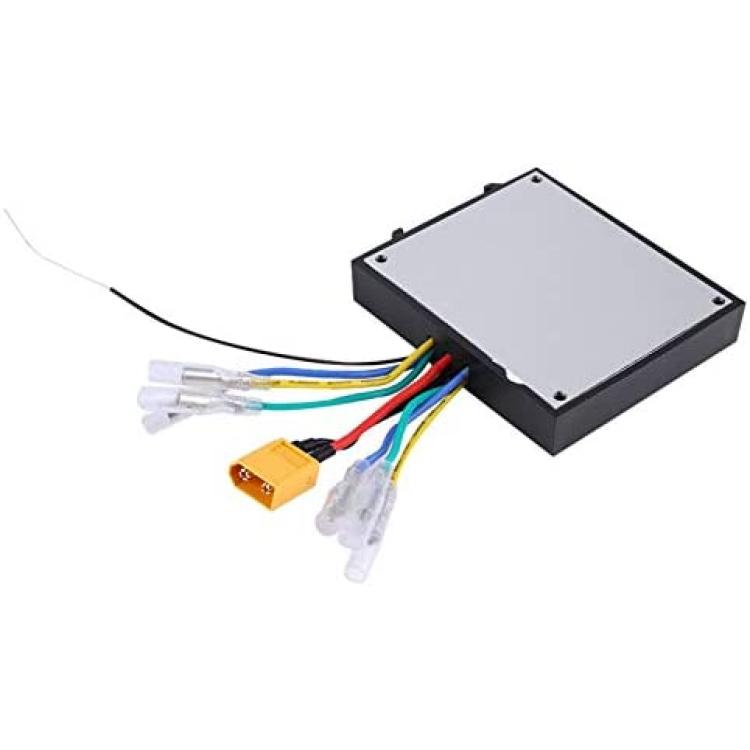

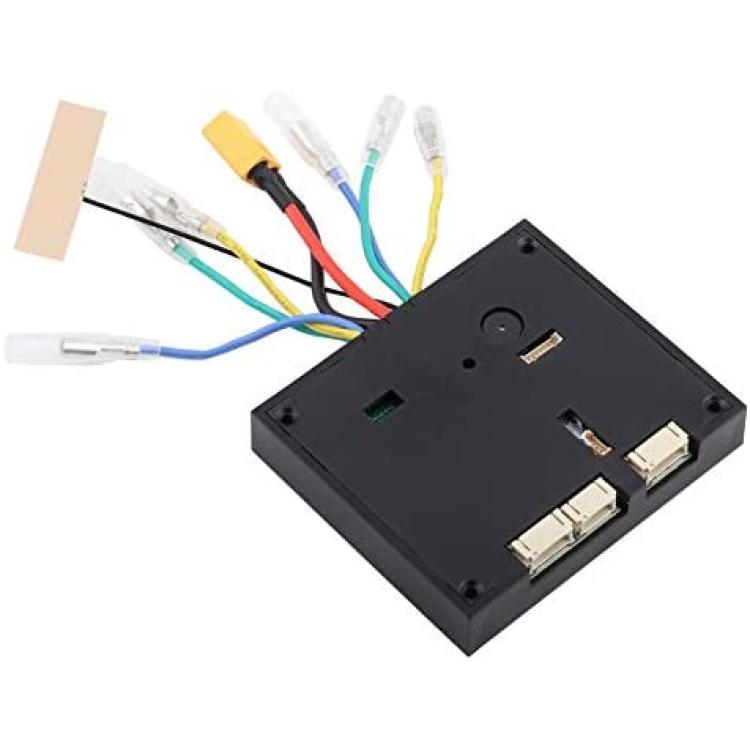

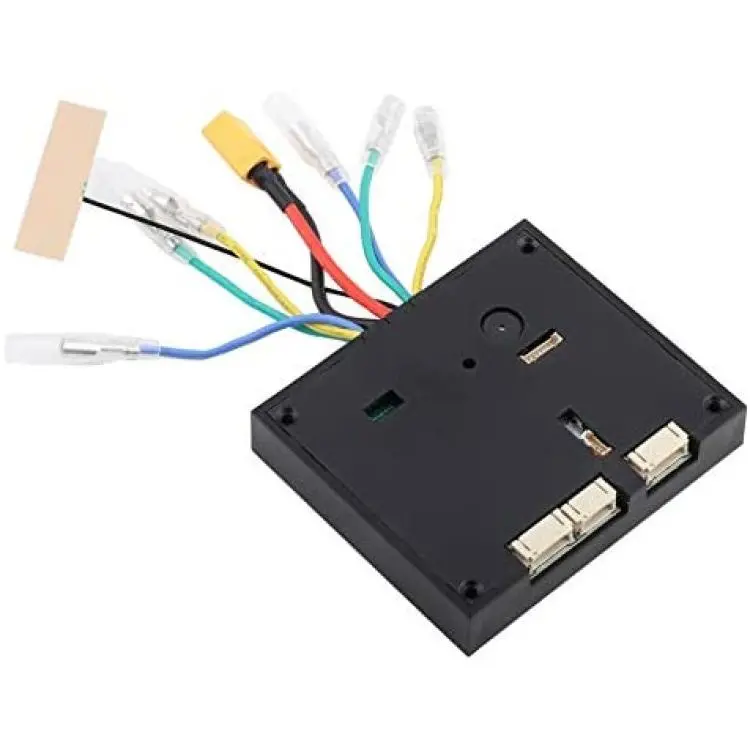

Electric Skateboard Longboard Dual Drive ESC Substitute Control Mainboard with LED Indicator Displays Signal Status,Adjustable 4 Speed Modes

Specifications:
Double drive: 100*76*18mm
Voltage: 36V
Current: 12A
Maximum RPM: 3000 rpm
Maximum power:  430W (36V)
Drive mode: sine wave FOC has a slow start
Maximum speed: 35KM/H
Protection: over-voltage, under-voltage, over-temperature, stall, CWCCW, speed control
Sensing method: Hall
Carrying weight: ?120KG
Power connector: XT60
Motor plug: 4mm banana plug
Hall interface: 5pin 2.0 connector
Size: approx. 18.5*10*4cm / 7.28*3.94*1.57in
Weight: approx. 227g

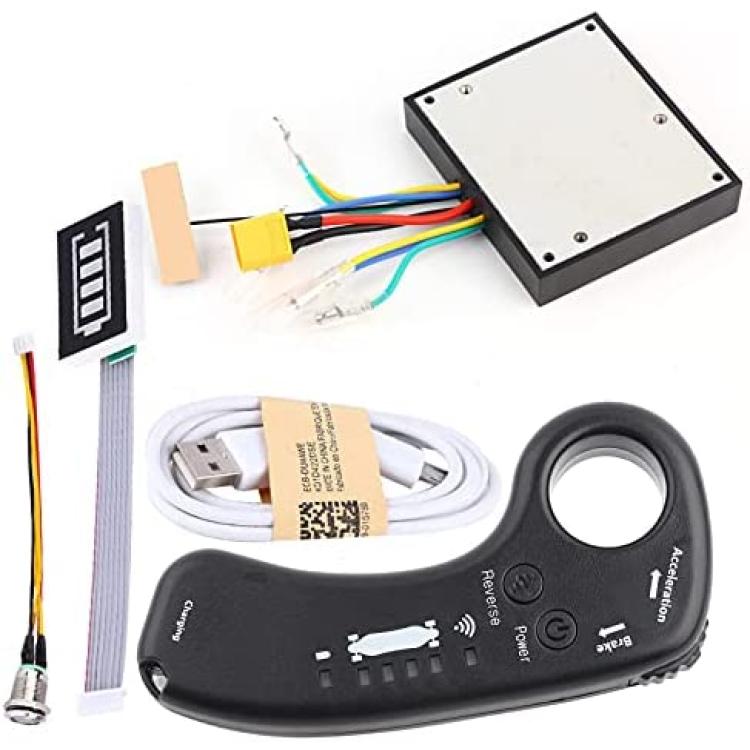

Package List:
1 * Control
1 * Remote Control Transmitter
1 * LED Battery Indicator
1 * Switch

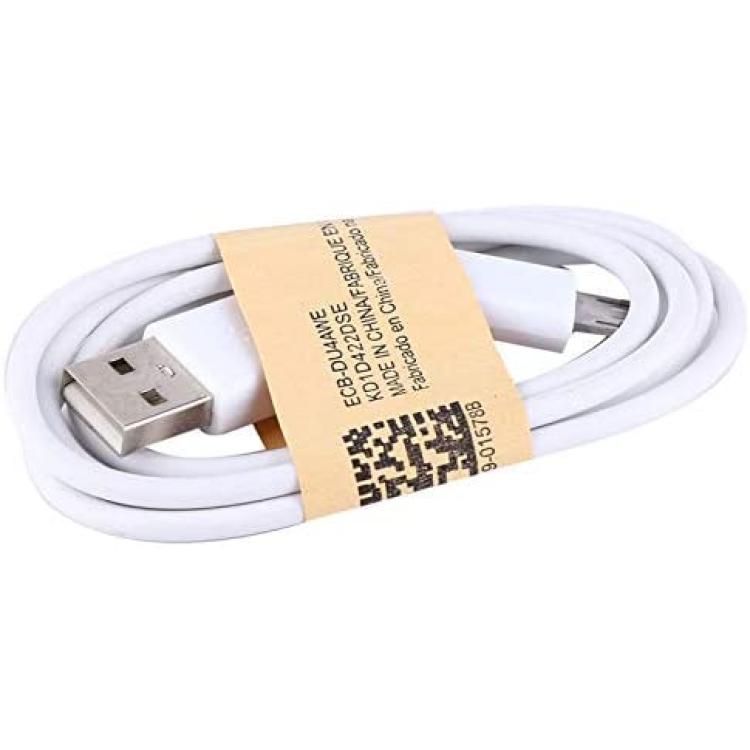

1 * USB cable

NOTE:
No Installation Guides are included, professional usage is strongly recommended.

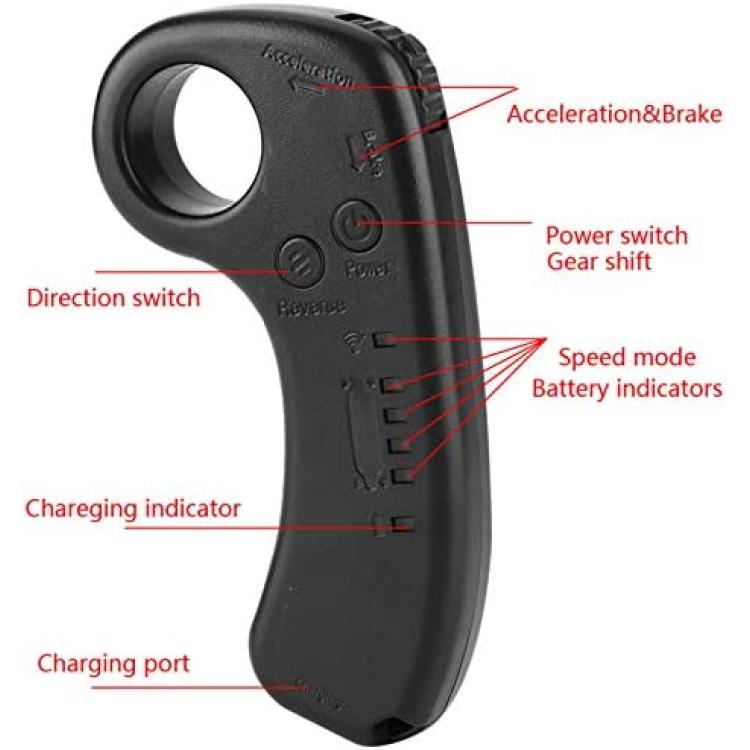

The remote controller matches the main controller with a signal description:
1: Connect the main control to the power supply
2: The power is turned on, wait for two seconds, then press and hold the key for about 6 seconds. Wait until the switch indicator flashes.
3: Turn on the remote control switch and use a small screwdriver to press the button inside the small hole in the lower left corner of the remote control.
4: The remote control is turned off for two seconds and then turned on. Wait for the remote control signal light and the switch signal light to flash at the same time to indicate that the match is successful.
