CONHIS MOTOR Ebike 36V 48V 52V 1200W-2000W 45A 3-Mode Sine Wave Motor and Speed Controller with Colorful LCD Display Electric Bicycle Brushless Controller
Description
36V 48V 1200W-2000W 45A Sine Wave 3-mode Intelligent Brushless Controller with Colorful LCD Display for eBike Electric Bike

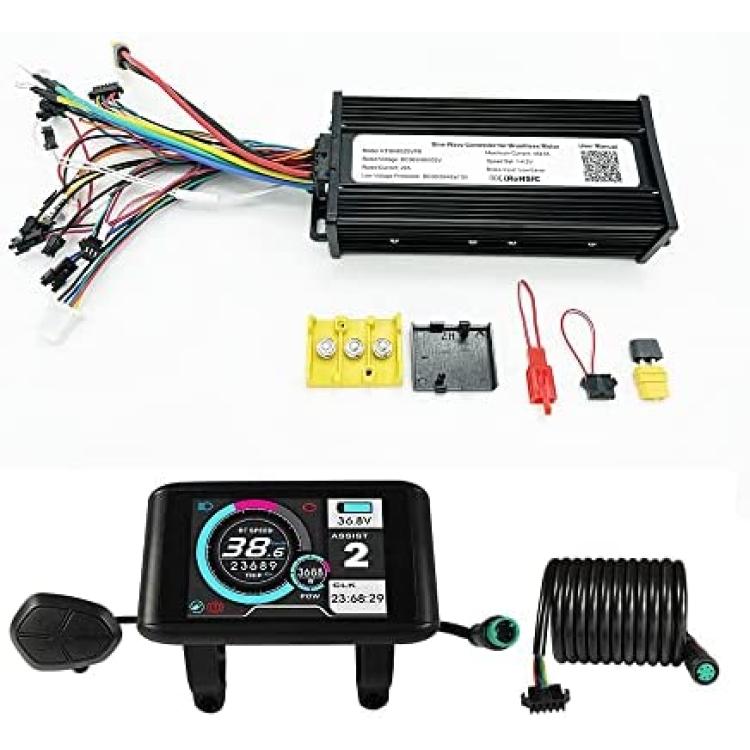

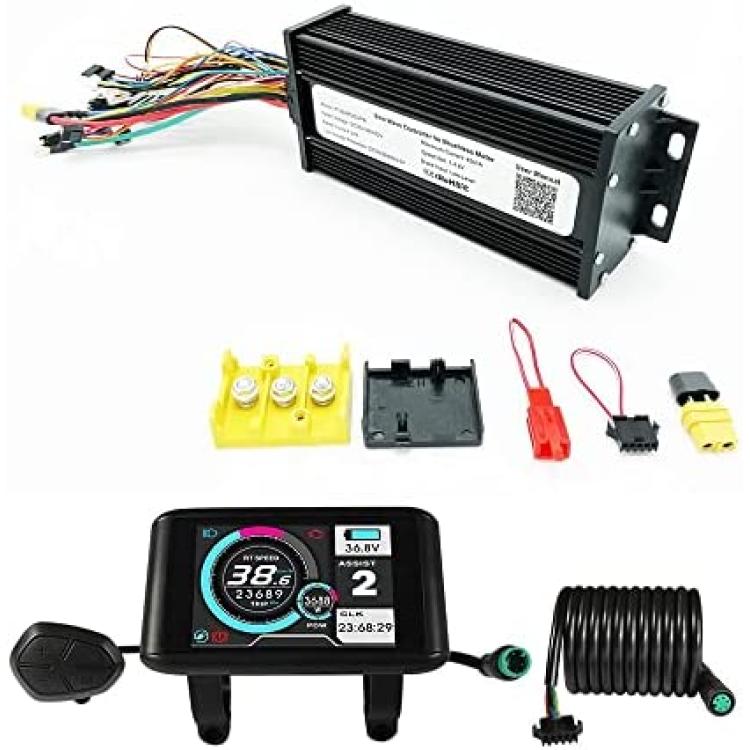

Parts Including:
1. 15 MOSFET 45A 36V 48V, 52V Universal Voltage 1000W-1500W Intelligent 3-mode Sine Wave Controller
2. 36V, 48V, 52V UKC1 Colorful Display (Optional)
Advantage:
1. Support dual mode: support hall sensor or Non-hall sensor
2. Self Learning: Even wrong 3-phase combination between motor and controller, doesn’t matter, above self-learning process can correct it!
3. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
3. Best heat sinking with Aluminium Case
4. Black anodized Aluminium Controller Case against scratch
Technical Data:
General Specification:
1. Rated Power: 36V 792W/ 48V 1056W/ 52V 1144W
2. Peak Power: 36V 1620W/ 48V 2160W/ 52V 2340W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. Size: 212x86.5x48.5mm
7. Net Weight: 610g
8. Waterproof Grade: IP65
FAQ:
1. How shall I match my motor for first time use? (Very Important)
1). Lift your motor wheel off ground (very important)
2). Connect Self-learning plug 6-8 seconds
3). You will see motor wheel rotate slowly
4). Please check whether rotation direction is correct
(a). If correct direction, then keep 6-8 seconds, then disconnect
(b). If reverse direction, then disconnect and plug again till get correct rotation direction, then keep 6-8 seconds, then disconnect
5). Motor and Controller Pairing finished!
2. Can I use this controller without display?
Yes, you can use this controller without display, just need to connect jumper connector
