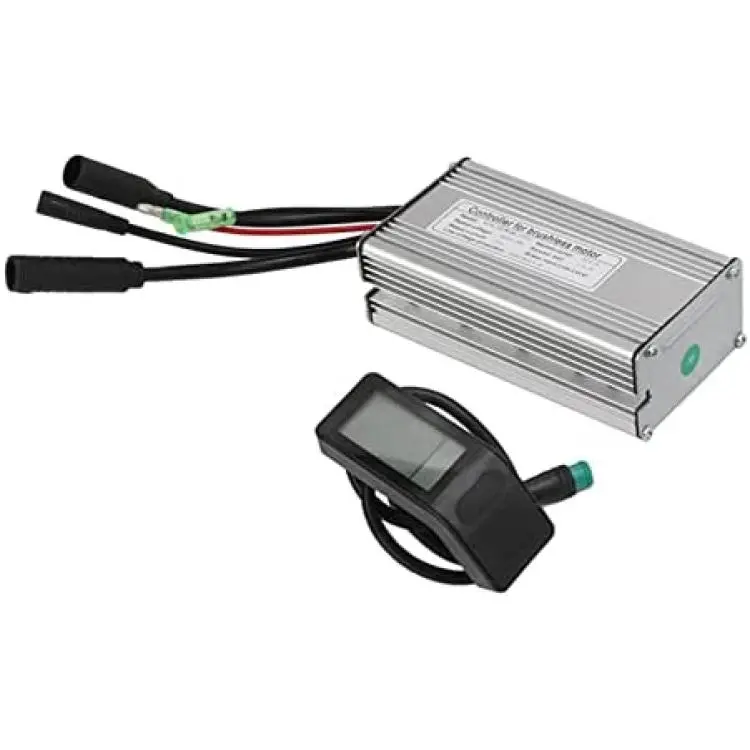

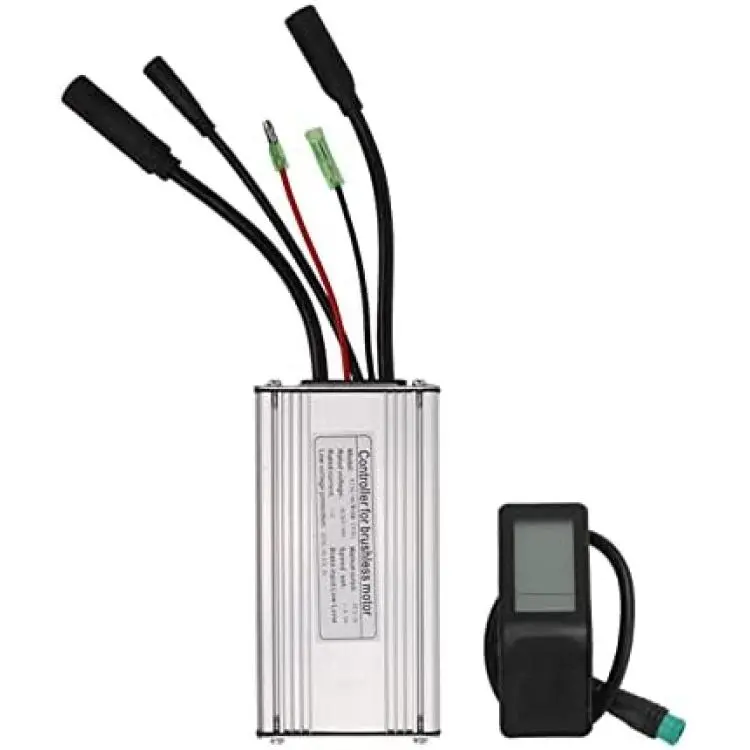

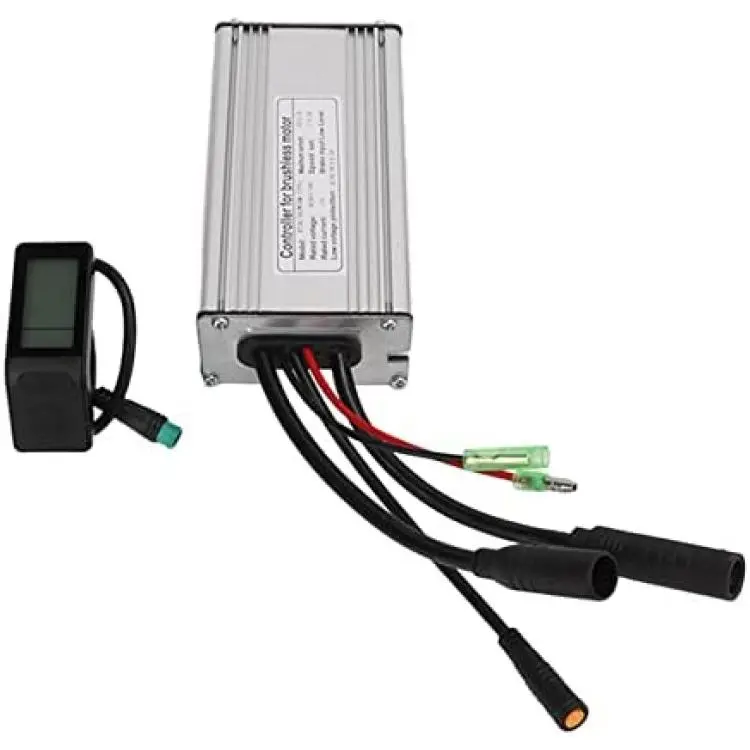

Bnineteenteam 36V 48V 500W Electric Bicycle Brushless Motor Controller,Electric Bicycle Controller Dispaly Kit for Electric Bicycle

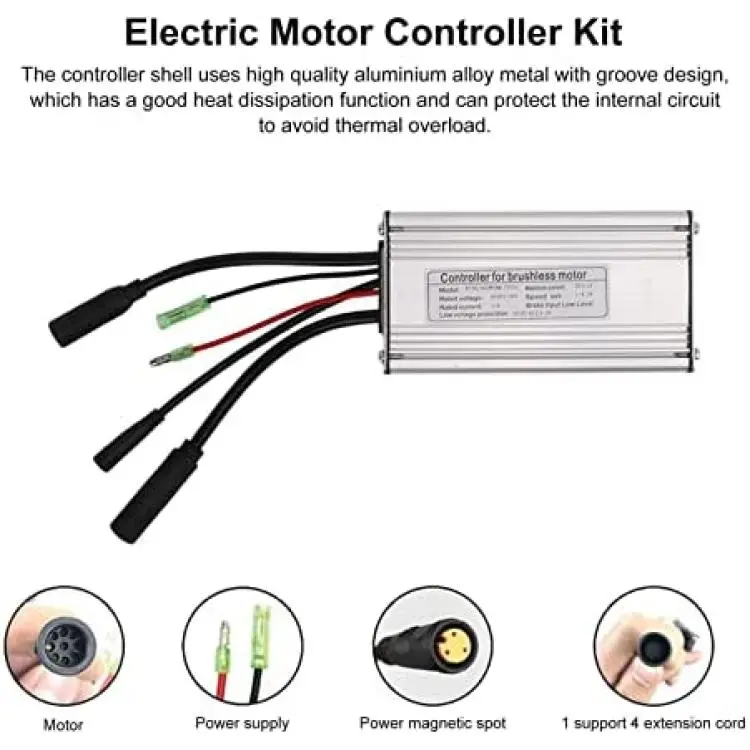

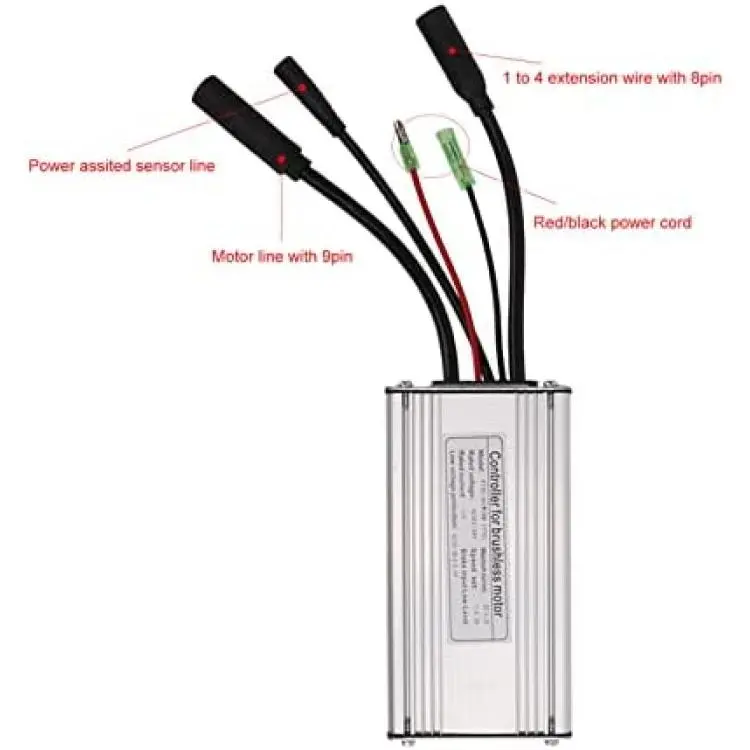

How to Use:
1. Black single large end wire with 9pin: Waterproof motor wire
2. Red and black single wire: Power cord
3. Black single large end wire with 8pin: 1 to 4 wiring (LCD Meter 5pin, throttle, 2 x brake lever)
4. Black single wire with 3pin: power assisted sensor wire
For specific instructions, please refer to the manual.


Specification:
Item Type: Electric Motor Controller Kit
Material: Aluminum Alloy + Plastic
Product Color: As Pictures Shown
Controller Box Size: Approx. 125x66x39mm / 4.9x2.6x1.5in
Product Weight: Approx. 989g / 34.9oz
Controller Connector Type: Waterproof Connector

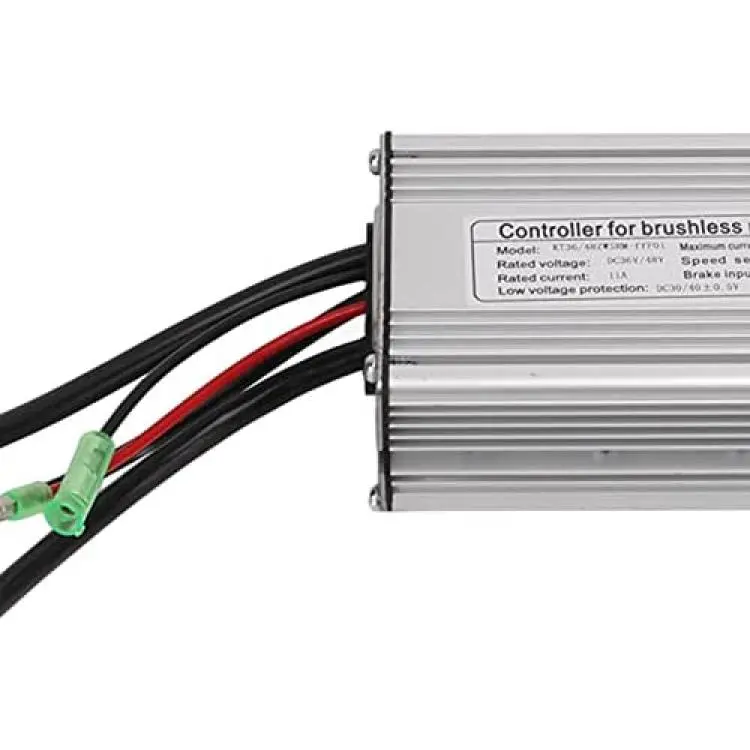

Controller Rated Voltage: DC 36V/48V
Controller Rated Current: 11A
Controller Maximum Current: 22±1A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30/40±0.5V
Applicable Motor Power: 500W

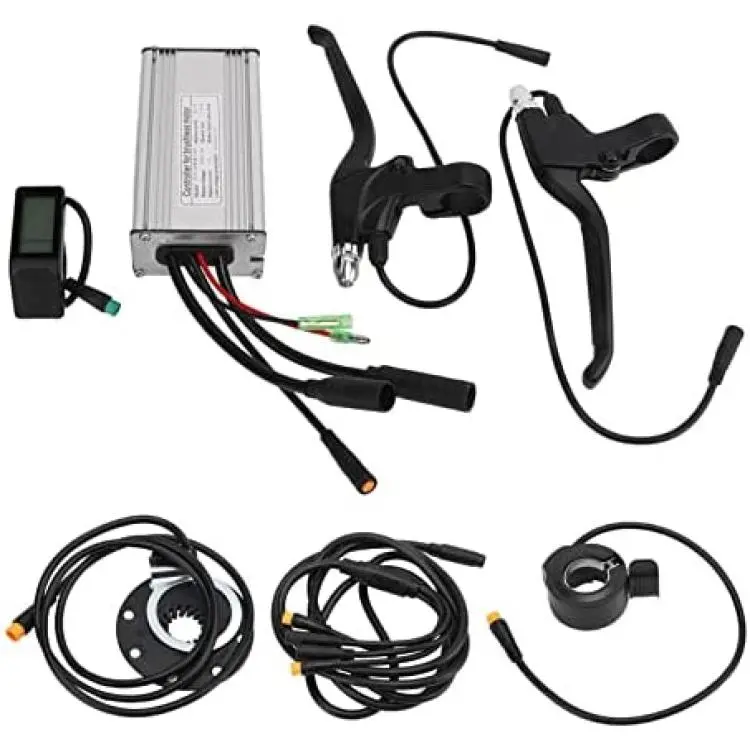

Package List:
1 x 22A Controller
1 x LCD4 Display Meter
1 x Meter Manual
1 x Throttle
1 x 8C Power Assist Sensor
2 x Brake Lever
1 x 1 To 4 Wire
1 x Controller Wiring Manual

Note:
1. It needs to be used in conjunction with products that conform to the communication protocol.
2. Please allow 1?2cm error due to manual measurement. Thanks for your understanding.
