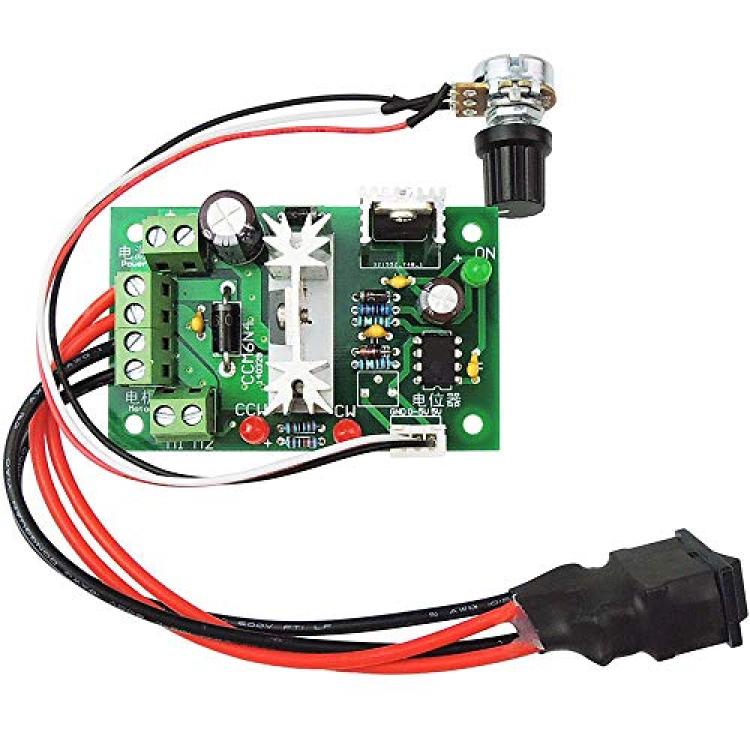

uniquegoods 6V 12V 24V 6A DC Motor Speed Governor Adjustable Reversible Switch PWM 200W Variable Speed Control Reversing - CCM6N
Availability: Pre-Order, Inquiry Price
About this product
*Input supply voltage: 6V-30VDC(max)
*PWM frequency: 16kHz; Duty Cycle adjustable: 0%-100%
*Item size: 2.9*1.85*1.1 inches ; Net weight: 2.54 ounces
*The maximum output power: 200W; Power-On LED indicator;
*The maximum continuous output current :6A; Peak current is 10A
Description
Features:
CCM6N DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).Â
Control the forward or reverse direction and the stop of DC motor by switch.
Incorporate a high power MOSFETÂ and a high quality potentiometer.
Adjustable speed range is 0%-100% (both Positive and Negative DC output). Â
Suitable for the DC motor (or DC load) within 6A.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
1. Connect wires refer to the “wiring diagram” (NO.5 picture).

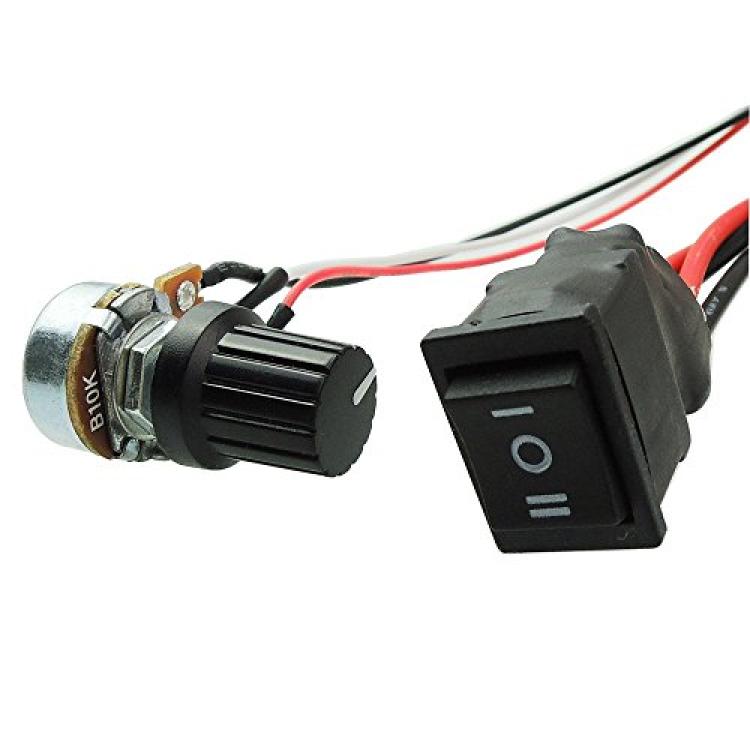

2. Turn on the power, and adjust the potentiometer and the switch.

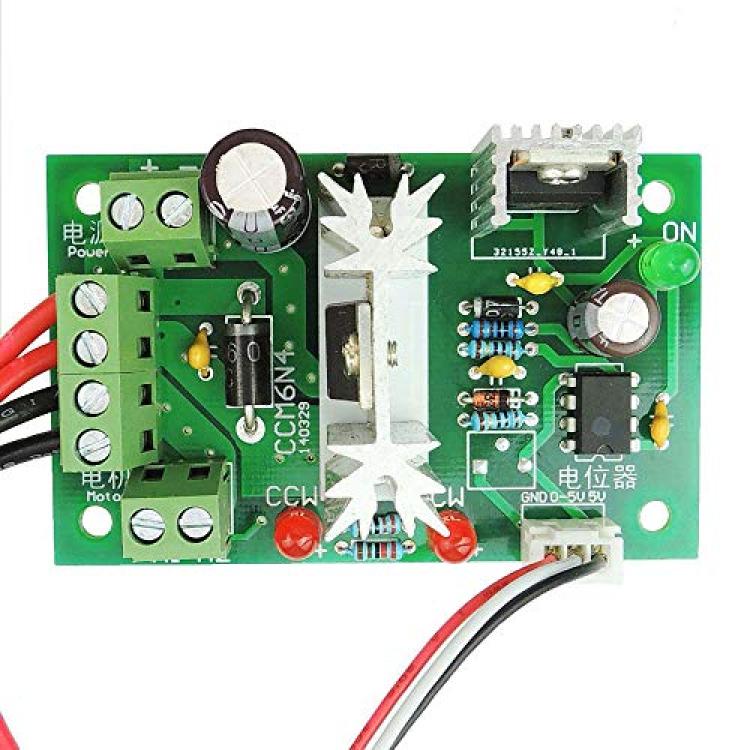

3. The green LED lights, the power is OK. The red LEDs indicate the motor speed and direction.
4. To use the 0-5V external voltage to control the DC motor speed, connect wires refer to the “wiring diagram 2”(NO.5 picture)
Package Including:
1 x DC Motor Speed Controller
