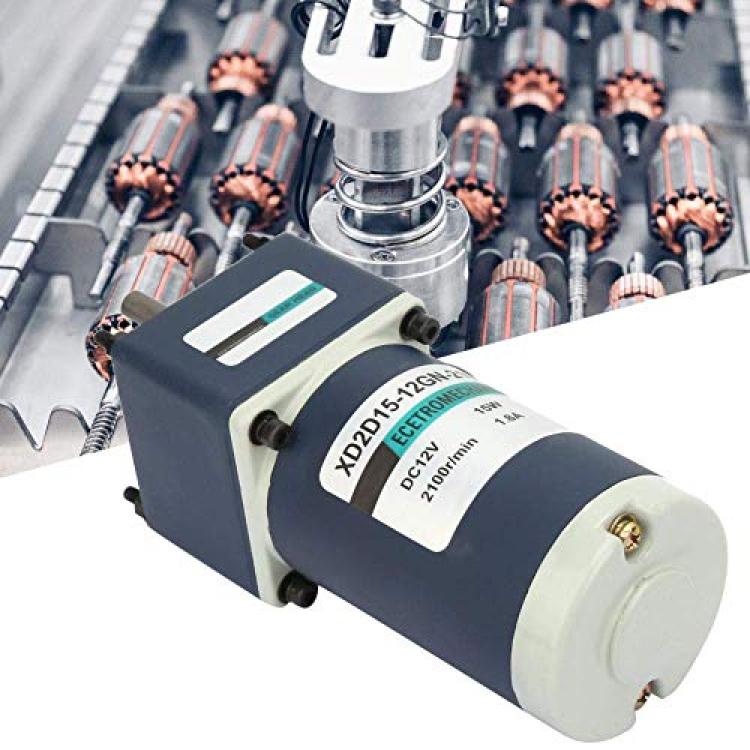

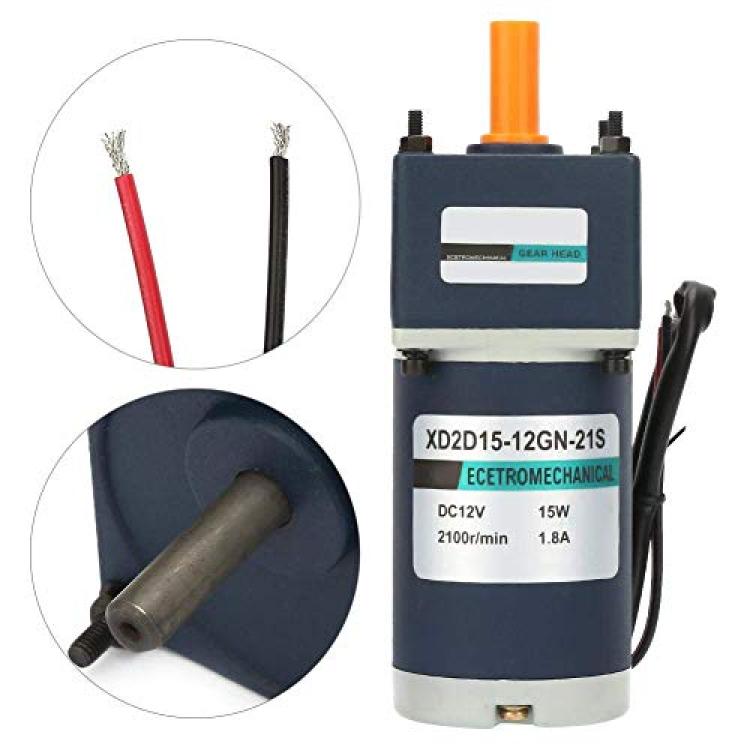

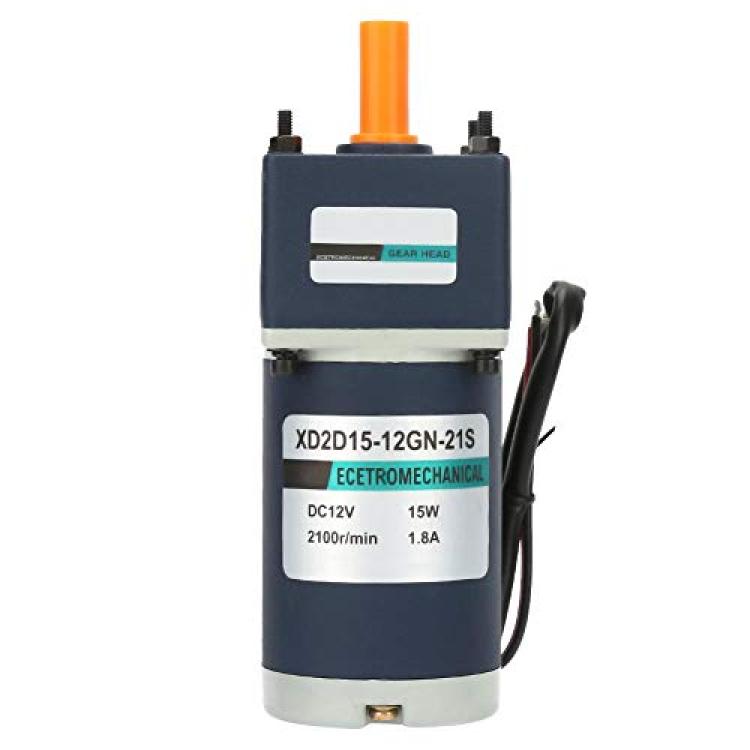

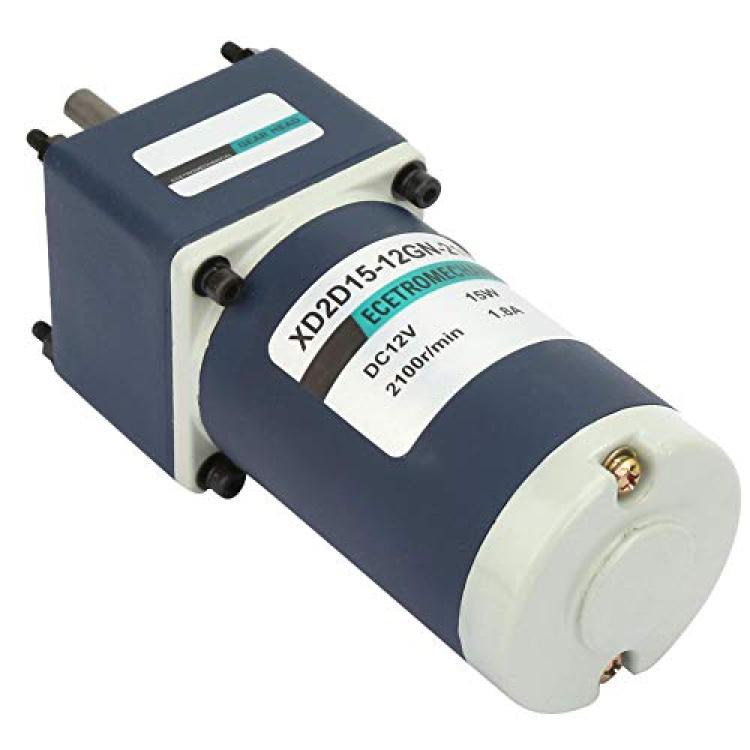

DC12V Gear Motor, 15W 1800/2100RPM Reduction Geared Motor Electric Permanent Magnet DC Gear Motor Metal Large Torque Motor Class B Gear Reducer Motor(150 / 15RPM)
Availability: Pre-Order, Inquiry Price
About this product
*✔【High Quality Geared Motor 】-- Compared with traditional motors, permanent magnet motors have lower power consumption and longer service life.
*✔【Excellent Performance 】-- Low heat generation, stable motor operation and reliable performance. Metal gears, large torque.
*✔【Safety 】-- After strict safety electromagnetic testing, the insulation grade is Class B.
*✔【Rotating Speed 】-- The motor no-load speed is 2100rpm and load speed is 1800rpm
*✔【Quality Assurance】-- The quality of our products is guaranteed and can be used without hesitation. If you have any questions during use, please feel free to contact us.
Description
Feature:
The motor no-load speed is 2100rpm and load speed is 1800rpmÂ
After strict safety electromagnetic testing, the insulation grade is Class B.
Compared with traditional motors, permanent magnet motors have lower power consumption and longer service life.
Low heat generation, stable motor operation and reliable performance.
Metal gears, large torque.
Specification:
Model: XD2D15-12GN-21S
Voltage: 12 V
Power: 15 W
Motor no-load speed: 2100 RPM
No-load current of the motor: 0.6 A
Motor load speed: 1800 RPM
Motor load current: 1.8 A
Torque: 0.5 kg.cm
Insulation class: Class B

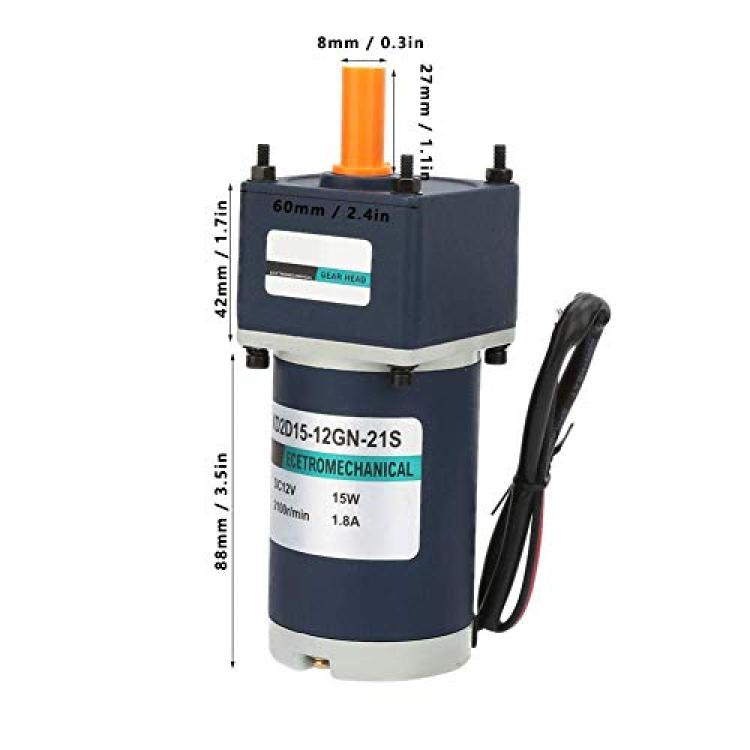

Motor size: 60*60*130mm

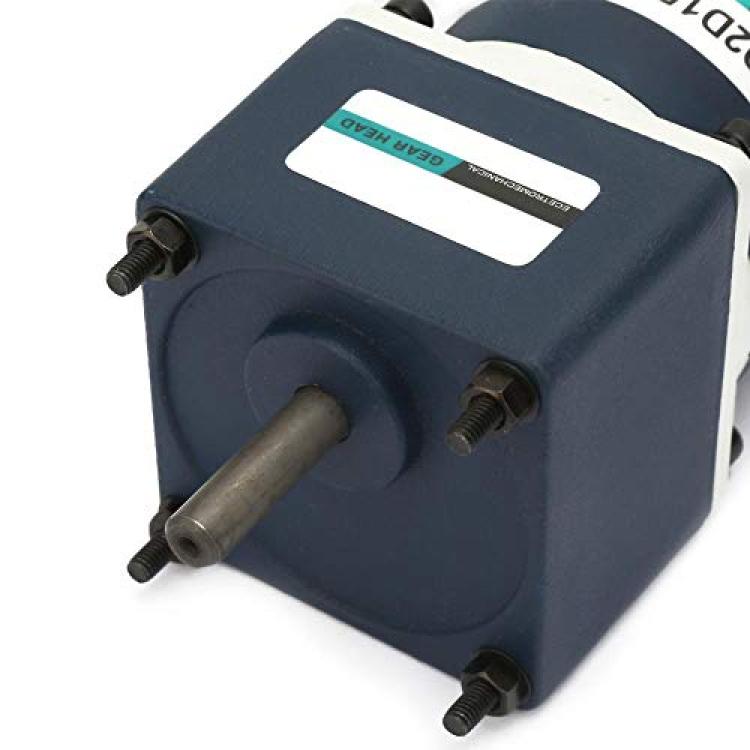

Reducer box shaft size: 8mm * 27mm (diameter * length)
#16
Reduction ratio: 150
Gearbox output shaft speed: 15RPM
Package list:
1 * Motor
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
