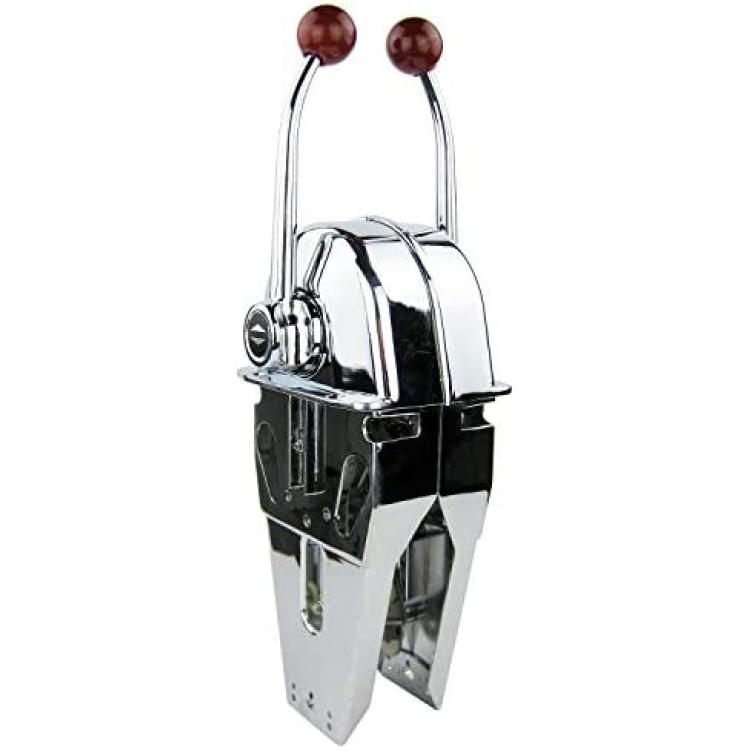

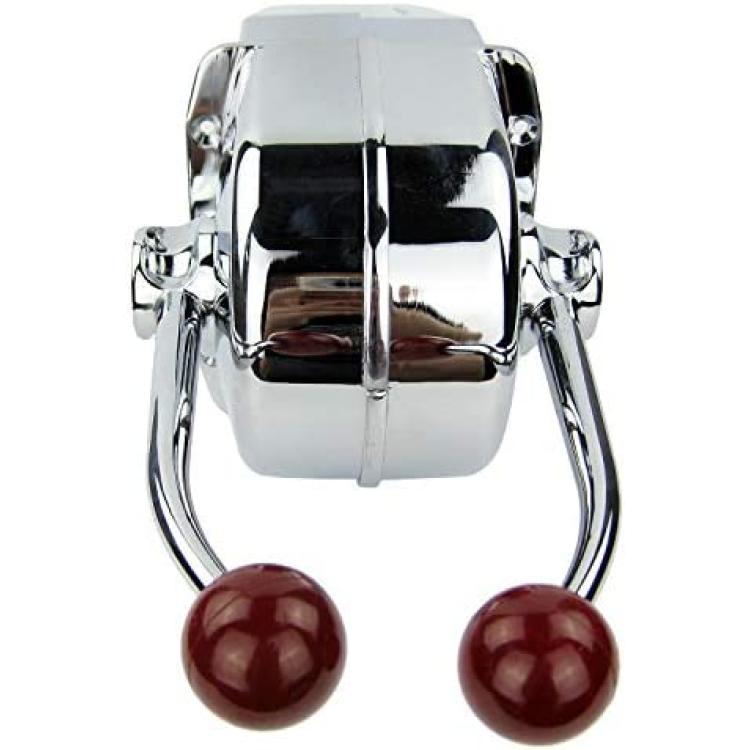

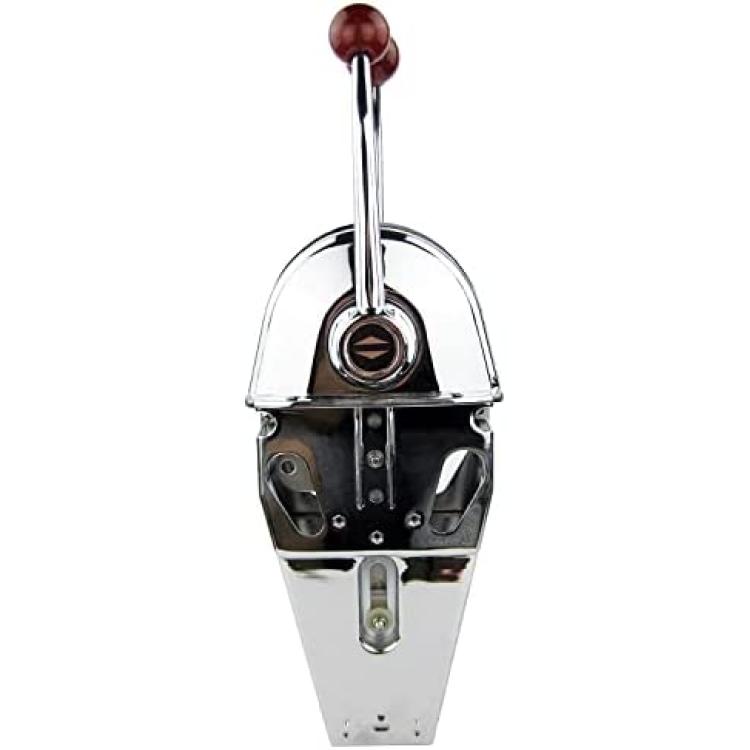

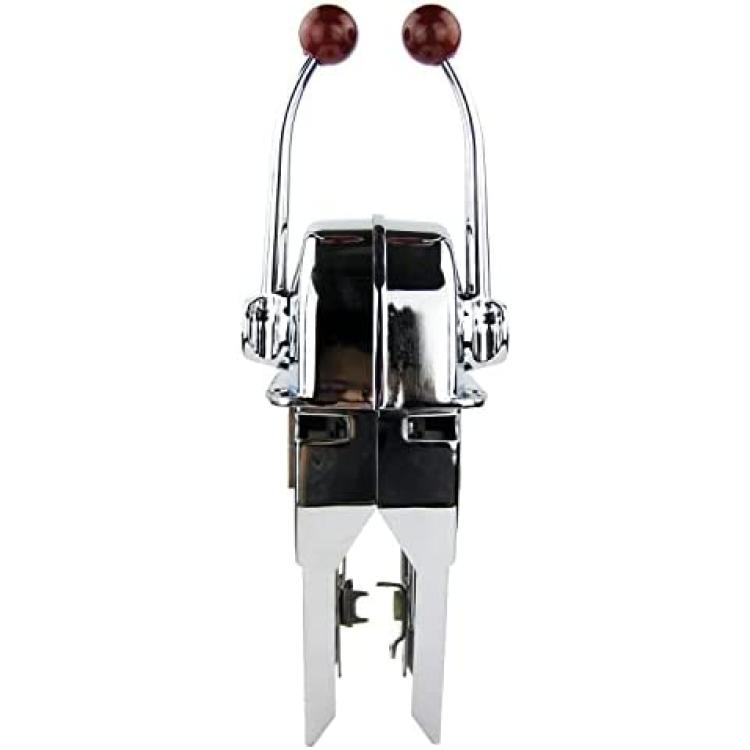

NEWMAIX Universal Boat Dual Lever Throttle Control,Marine Top Mount Twin Lever Engine Control Zinc Alloy Dual Handle Shift for Any Type of Boat with Outboard Inboard or I/O Power

The control system is mainly used for yachts, fishing boats and other water vehicles throttle and gear control, using a single handle to achieve control of the throttle and gear.

Specification:

Item Type: Twin Lever dual Engine Control

Material: Stainless Steel + Zinc Alloy + Brass

Warranty: 1 Year

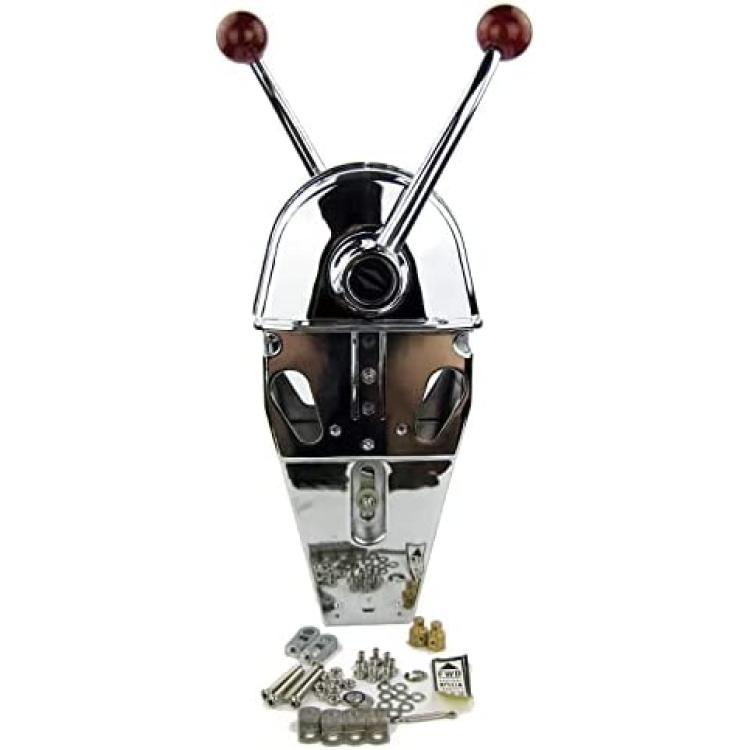

Package Included:

1 x Dual Lever Throttle Control

1 x Screw Pack

The neutral position is done by pulling out the hand levers 30 degree.

Open the throttle step as follows?

1. Remove the lever.

2. Unlock the throttle and pull the flexible shaft.

3. Remove the swivel bracket.

4. Loosen the two (2) hex head screws at the link mechanism and remove the linkage. Make sure that the shift arm engagement teeth position is not changed.

5. Push the throttle arm toward the housing and rotate it 180 degrees until it bounces back.

6. Use the hex head screw to fasten the connecting rod mechanism to the desired position.

7. Insert the swivel bracket into the appropriate hole.

8. Re-install the push-pull flexible shaft and handle bar.

Notice : We value the shopping experiences and satisfaction of each customer, so we provide technical support. If the product install or quality have any problem, please contact us in time.We will solve it as soon as possible.
