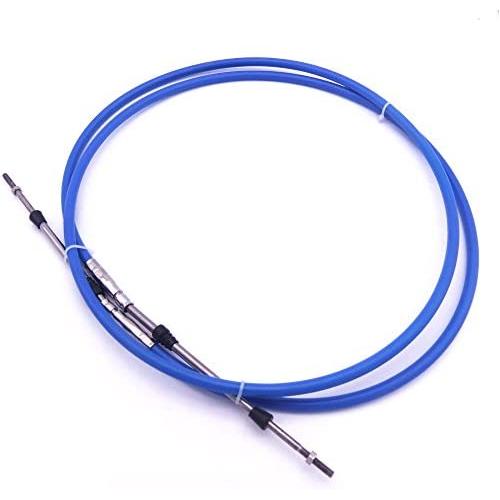

ABA-CABLE-08-GY Outboard Engine Remote Control Throttle Shift Cable 8ft for Yamaha Boat Motor Steering System 2.438m Blue, Universal Type 3300/33C

Replacement:

This aftermarket throttle shift cable replace Yamaha motors parts number: ABA-CABLE-08-GY

Parameter:

Length: 8FT, 2.438Meter

Color: Blue

Specifications: 92mm stroke, 200mm bend radius

We can also produce other lengths 10ft-25ft

Condition: New

Application:

This aftermarket parts fits Yamaha outboard 703 and 704 remote control boxes / inboard and stern drive engines.

Features:

This aftermarket remote control can be perfectly matched to your Yamaha & fits Tohatsu outboard and its controls.

(1)A stainless steel core with special nylon covering using plastic-on-plastic technology that increases cable performance.

(2)A splined inner core for ultra-low friction and reduced end play. A 45% reduction in cable friction (vs. standard marine cables) for smoother operation.

(3)A 4" bend minimum radius offers superior flexibility and easier rigging.

(4)Stranded core wires increase strength and resist kinking.

(5)Exposed metals are stainless steel to help protect against corrosion.

(6)An ultraviolet-stabilized jacket resists cracking and water migration to the core.

(7)Factory-installed anti-corrosion materials extend the life of the cables.

Note:

When choosing the correct cable length for your application, be sure to add the distance from the center of the engine to the bilge area through the rigging tube, from that point to the gunnel (usually starboard) where the cables will run to the console, the length of the gunnel or rigging tube, and the distance from the gunnel to the console where the remote control box will be located - then add two feet. This extra distance will allow for any errors in measurement and ensure sufficient bend radius for smooth, easy shifting.
