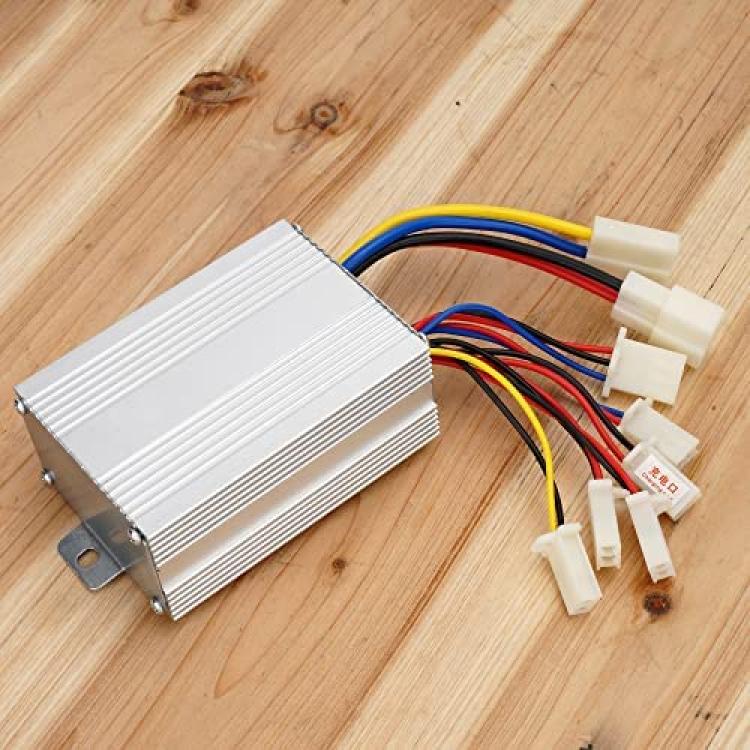

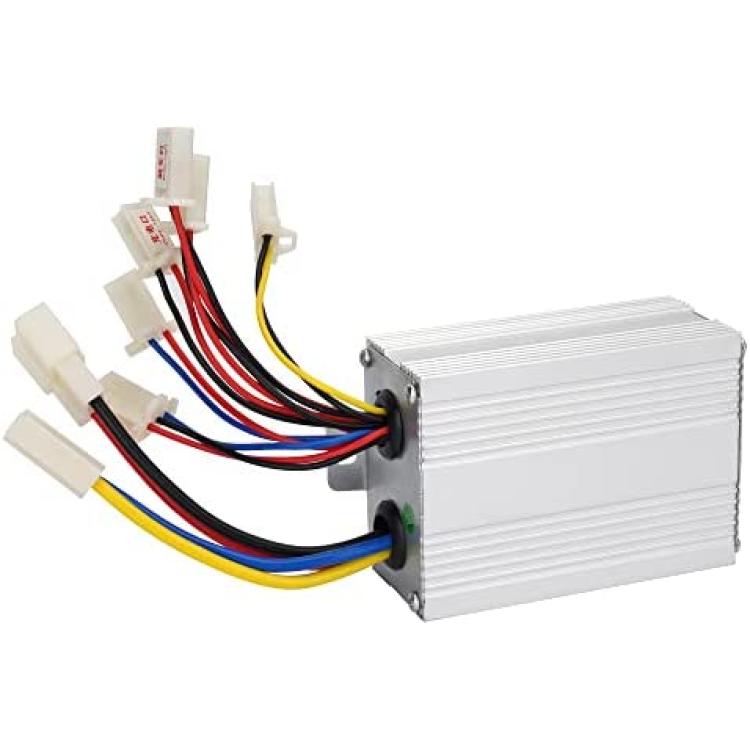

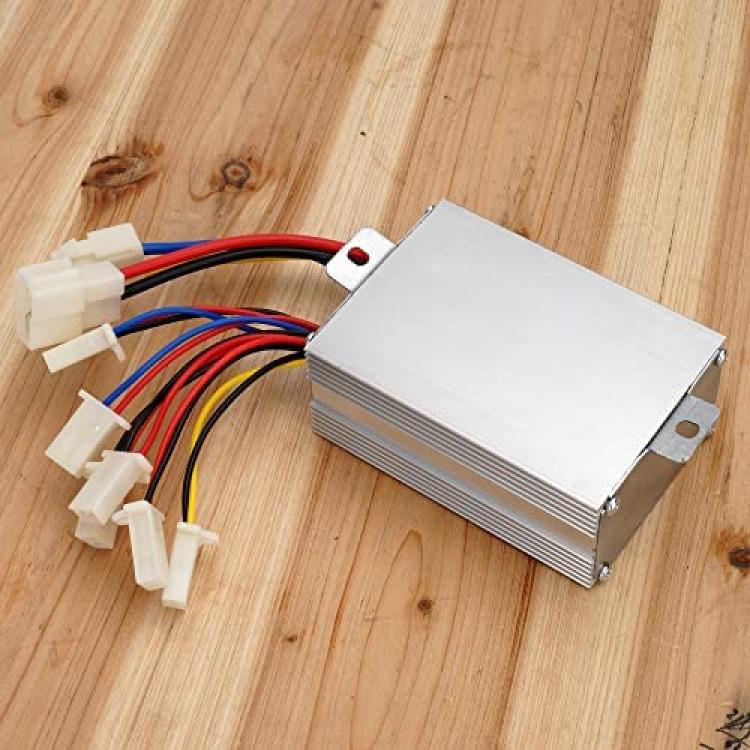

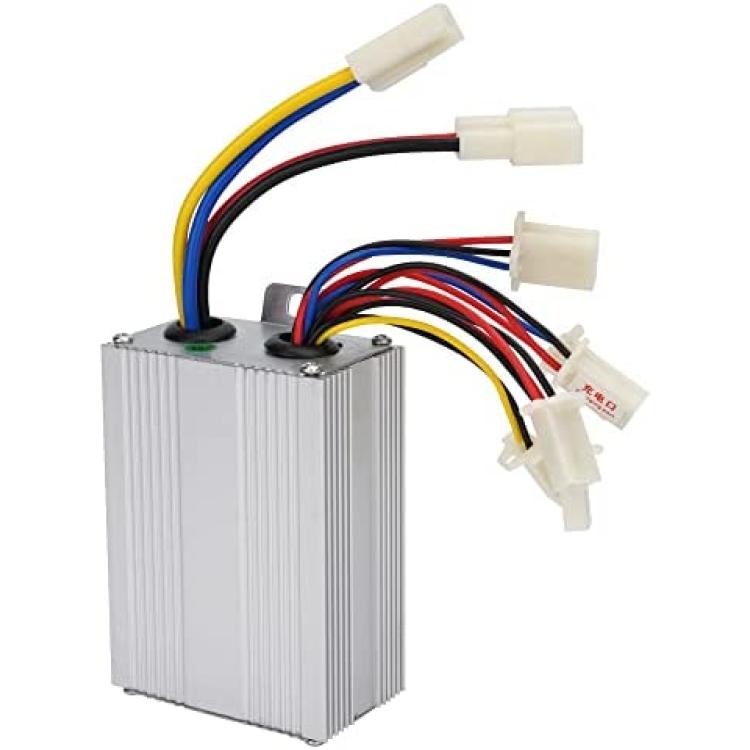

36v 800w Motor Speed Controller Electrical Scooter E Bike Bicycle Brush Motor Control Box

Work Voltage: 36Volts
Matching Motor: DC brushed motor
Rated Motor Power: 800 watts
Under Voltage Protection: 31.5V±0.5V
Usable Motor: 36V 800 Watts
Speed governor 1-4 V(Throttle )

Function:
This controller is uitable for electric bike tricycle & scooter
This is a brush motor controller.


Wires Interface Description:
Red & Black(1): Brake light, Thin red (power Positive) /thin black (Power negative)

Red & Black(2) (small cable): Charging port.Thin red (charge input power Positive) /thin black (Power negative)

Red & Black(3)(small cable) : indicator light.Thin red (Indicator power output) /thin black (indicator negative)

Red & Blue(4): Key Switch(power locks).Thin Red(VCC)/Thin Blue. (If there is no power locks,red connection to blue)

Yellow & black(5) : brake,Thin yellow (Brake signal)/thin black(Negative Power)

Red, Black & Blue(6): Speed governor(Throttle ) Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(1-4V Positive Power)

Red & Black(7) (large cable) : Battery connections, Thick Black (Power Negative) /Thick Red (Power Positive)

Yellow & Blue(8) : Motor connections, Thick Yellow (Motor Negative) /Thick Blue (Motor Positive)
