Brushless Motor Controller,Electric Motor Controller Brush DC Motor Speed Control For Electric Tricycle Scooter Bicycle (60V 1500W) brushless motor controller
About this product
*The controller shell is made of aluminium alloy with groove design, which can protect the inner circuit due to good heat dissipation feature to avoid thermal overloading.
*The controller shell is made of aluminium alloy with groove design, which can protect the inner circuit due to good heat dissipation feature to avoid thermal overloading.
*This item is a brushless motor controller, it can provide steady speed and sensitive control of braking and direction changes.
*The wires and interfaces are durable, and ensure low malfunction of long time use.

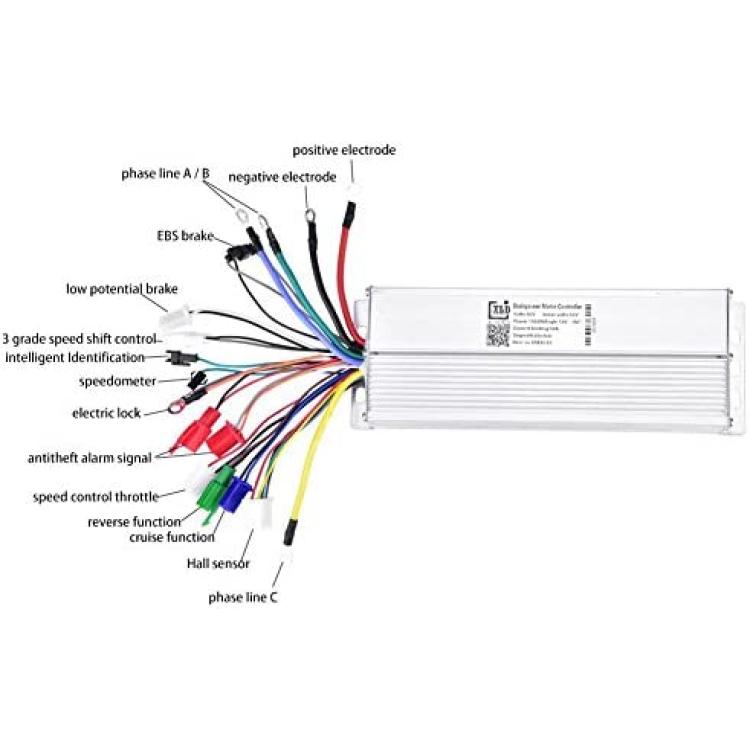

*The cables have different colors for your easy installation.
Description
Specification:
36/48V 1200W br>Rated Working Voltage: 36/48V br>Rated Power: 1200W br>Current: Max. 45A
Low Voltage Protection: 31/42V
36/48V 1500W
Rated Working Voltage: 36/48V
Rated Power: 1500W
Current: Max. 50A
Low Voltage Protection: 31/42V
60V 1500W
Rated Working Voltage: 60V
Rated Power: 1500W
Current: Max. 50A
Low Voltage Protection: 53V
Material: Aluminium alloy
Suitable Motor Phrase Angle: 60 / 120 degree
Suitable for: electric bicycle, scooter, etc

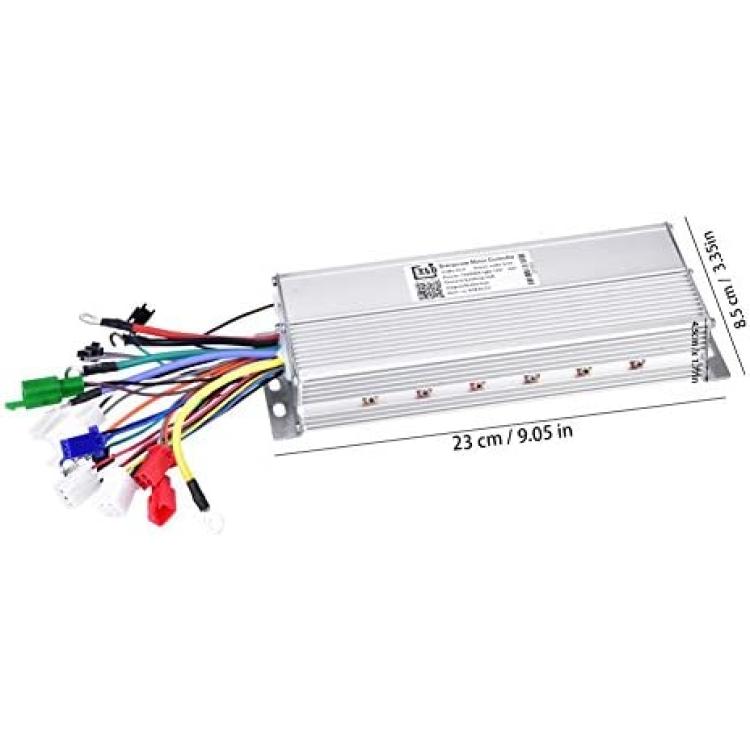

Size: Approx. 23 x 8.5 x 4.5cm / 9.05 x 3.35 x 1.77inch
Weight: Approx. 728g
Package List:
1 x Brushless Controller
