BAFANG 36V/48V Ebike Motor Mid Drive BBS/BBSHD Motor Front and Rear Wheel Hub Motor Electric Bike Engine 250W 350W 500W 750W 1000W

Warm Tips:This only a single motor, it does't contain other accessories . If you need complete accessories, please search this ASIN: B07KYMJL9K to order

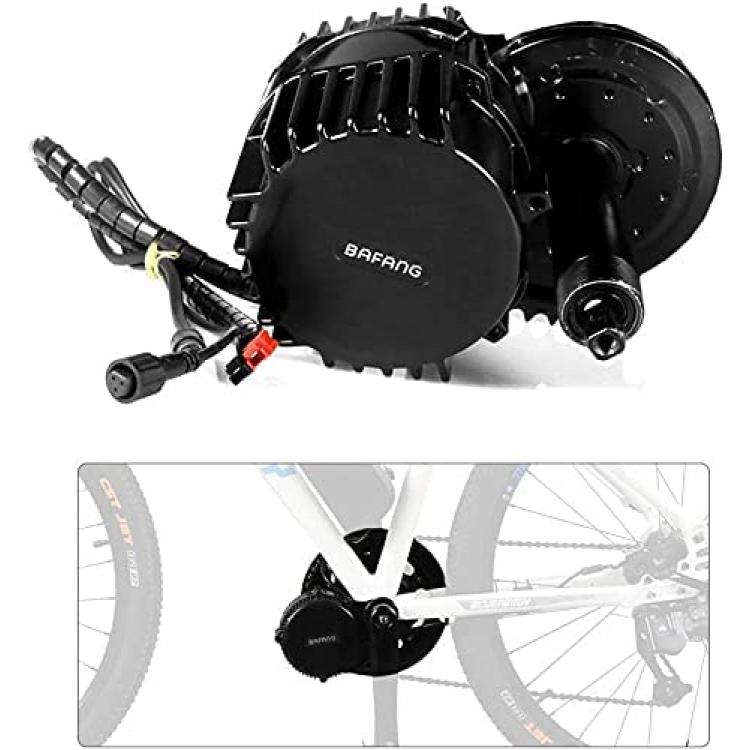

? Motor Parameter---
?Model: 36V----250W/350W/500W; 48V----350W/500W/750W/1000W
?Construction: Gear Drive
? n0(Rpm):120/126/160
?Rated Power(W):250W/350W/500W/1000W
?nT(Rpm):113/118/125
? Max Torque(N.m):100/160
?Efficiency(%):?80
?Pedal Sensor: Speed
?Shaft Standard:JIS
?Weight(kg):4.3/5.6
? Noise Grade(dB): <55
?E-Brake:Yes
?Light Drive Capacity(DVC/W):6/3(max)
?Test&Certification:IP65/CE/EN14764/ROHS

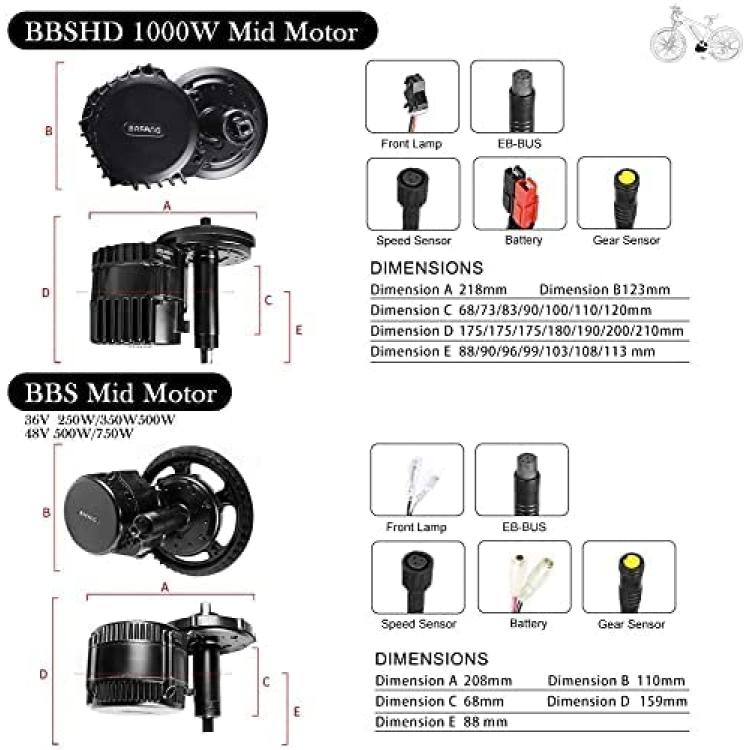

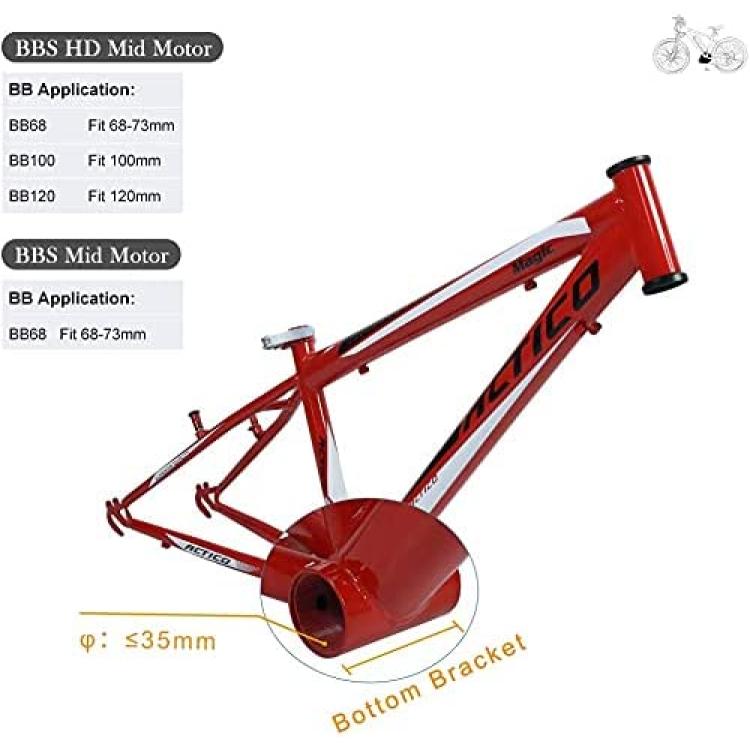

? Mounting Parametes: suitable bike with BB68-73mm

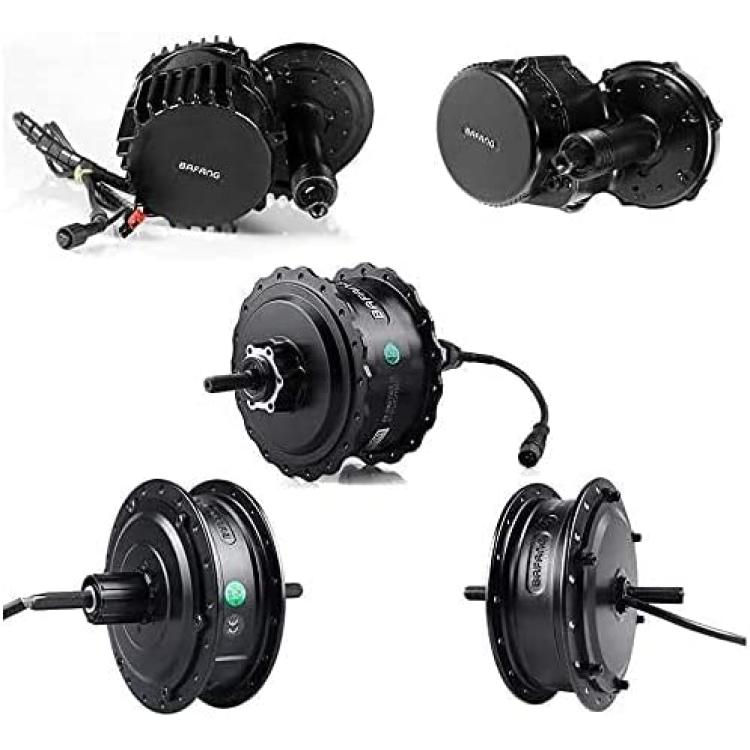

?Front Wheel Hub Motor Parameter:
?Construction:Gear Drive
?Rated Voltage(VDC):36/48
?n0(Rpm)325/245;260/420
?Max Torque(N.m):45/50
?Efficiency(%):?80
?Weight(kg):4
?Test&Certifications:IP65/CE/EN 14764/ROHS
? Mounting Parameters: Disc Brake; Installation Widths 135-142mm;Wheel size 20"/24"/26"/27.5"/700C

? Rear Wheel Hub Motor Parameter:
?Construction:Gear Drive
?Rated Voltage(VDC):36/48
?n0(Rpm)325/245;260/420
?Max Torque(N.m):45/80
?Efficiency(%):?80
?Weight(kg):4.3
?Test&Certifications:IP65/CE/EN 14764/ROHS
? Mounting Parameters: Disc Brake; Installation Widths 138/175mm;Wheel size 20"/24"/26"/27.5"/700C/28"

Notice---.20" motor is applicable to 20" wheel;26" motor is applicable to 26"/27.5"/700C wheel
