BAFANG BBS02B 48V/36V 500W Ebike Motor with LCD Display 8fun Mid Drive Electric Bike Conversion Kits

Item Specifics:
Voltage:48V/36V
Wattage:500W
Motor Type:Brushless Gear Hub Motor
Bafang motor Model:BBS02
Bafang Motor Position:Mid Crank
Bafang Controller:Integrated Inside the Motor

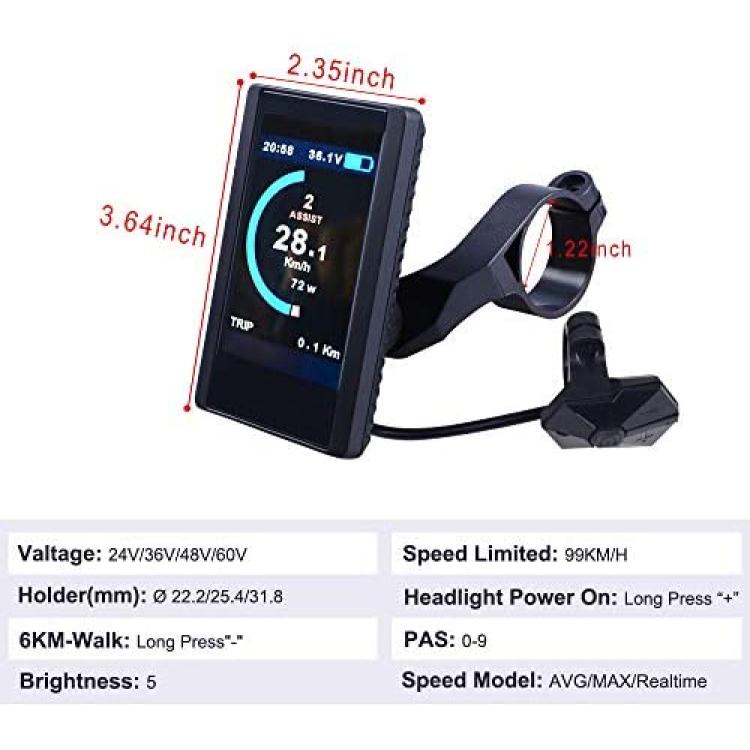

Display:C961/850C/P860C/500C/500C-H/750C/750C NEW VERSION
Chainring:44T/46T/48T/52T
Certification:CE/EN/ROHS

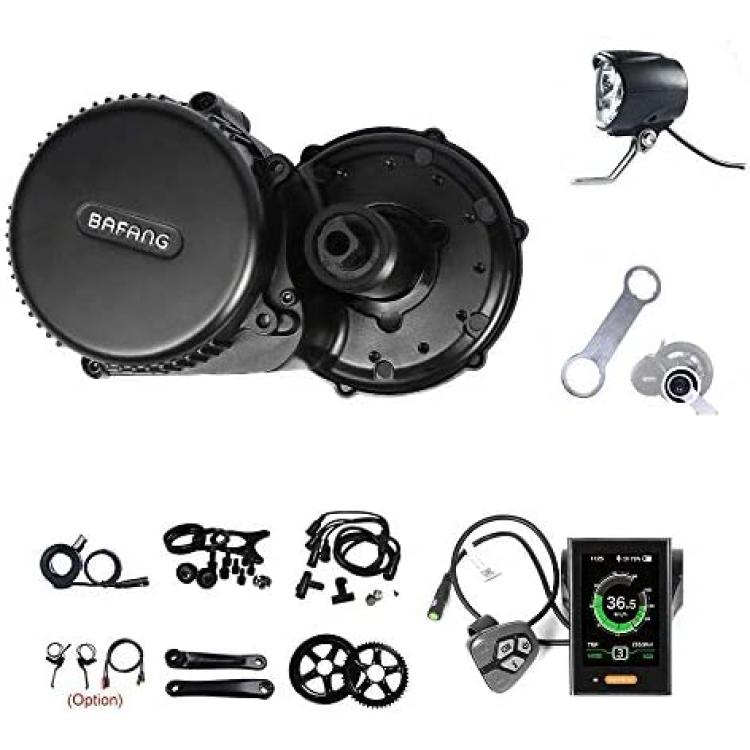

Packing List
1.Bafang central Motor(with integrated controller and PAS sensor) 1pcs
2.Optional LCD display 1set
3.brake lever 1 pair
4.thumb throttle 1set
5.chain wheel 1pc
6.chain cover 1pc
7.crank 1pair
8.speed sensor and magnets 1set
9.1 to 4 cables 1pc
10.nuts 1set
11. More accessories(Headlight & Ebike Tool)


FAQ:
What is the max voltage this motor can handle?
The 36V model should only be powered by an 36V battery, when fully charged a 36V battery will actually produce 42-43V approximately as to where a 48V battery will put out 54.6V.

Which bike can use this motor kits?
Bottom Bracket Width shall be 68-73mm

How to install?
1.Open the package and take out drive unit accessories;And check the specification whether it is correct.
2.Fix the chain wheel on drive unit with 5pcs Screw M5*10, then fix chain cover on chain wheel with 5pcs screws ST3.9.
3.Fix the drive unit axle tube on frame bottom bracket.4.the surface wit teet of fixing plate towards inside,then fix the plate on drive unit with 2pcs M6*10.
5.Hold the driveunit near to bicycle fork,force less than 5kgs,tight 1st nut M33 onto axle tube with force:30-40N.m.
6.Fix 2nd nut M33 onto axle tube,tightening force:30-40N.m.
7.Fix the left crank on the bike with M8 inner hexagon screw.Tightning force:35-40Nm.
8.Fix the right crank on the bike with M8 inner hexagon screw. Tightening force:35-40N.m.

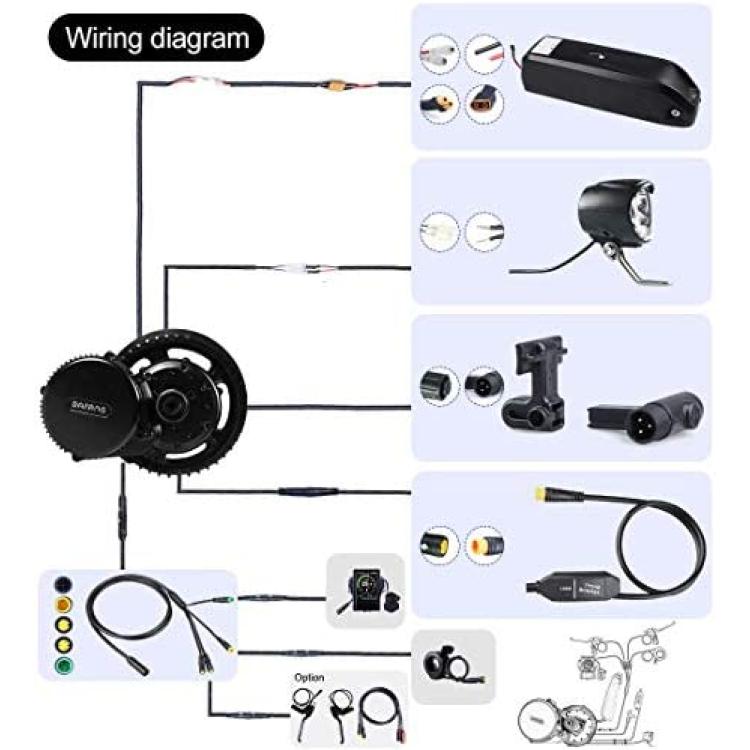

9.Connect all cables for battery,display,speed detecting sensor and so on.
