BAFANG BBS02 48V 750W Mid Drive Kit with Battery (Optional), 8Fun Bicycle Motor Kit with LCD Display & Chainring, Electric Brushless Bike Motor Motor para Bicicleta for 68-73mm BB

BAFANG 48V 750W electric bike conversion kit on this product page fits for 68-73mm bottom bracket . Screws and nuts for 73mm bottom bracekt are included. If you are looking for a 750W motor kit for 100mm bottom bracket , please search B099Z8Y6QN on Amazon and order it.

Specification for BAFANG BBS02B Mid Drive Kit
Volatage: 48V
Wattage: 750W
Motor Type: Brushless Gear Motor
Bafang Motor Model: BBS02B
Bafang Motor Position: Mid Crank
Bafang Controller: Integrated, inside the Motor
Shaft Standard: JIS
Operating Temperature: -10-45?

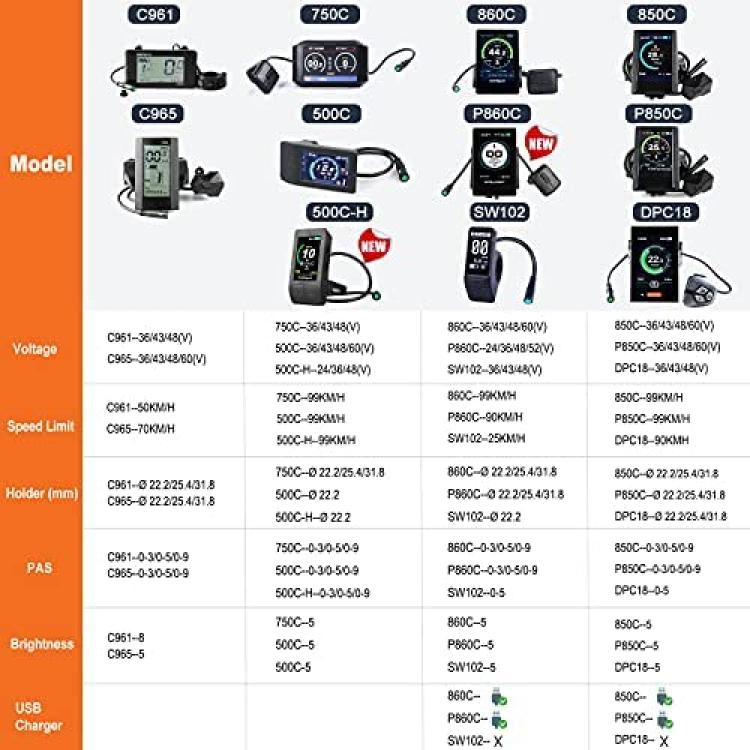

Display (optional): 500C/500C-H/750C Bluetooth/850C/P850C/P860C/DPC18/Touch T1/C961/800S/DM03
Chainwheel: 36T/44T/46T/48T/52T (36T chainring is without chain guard)

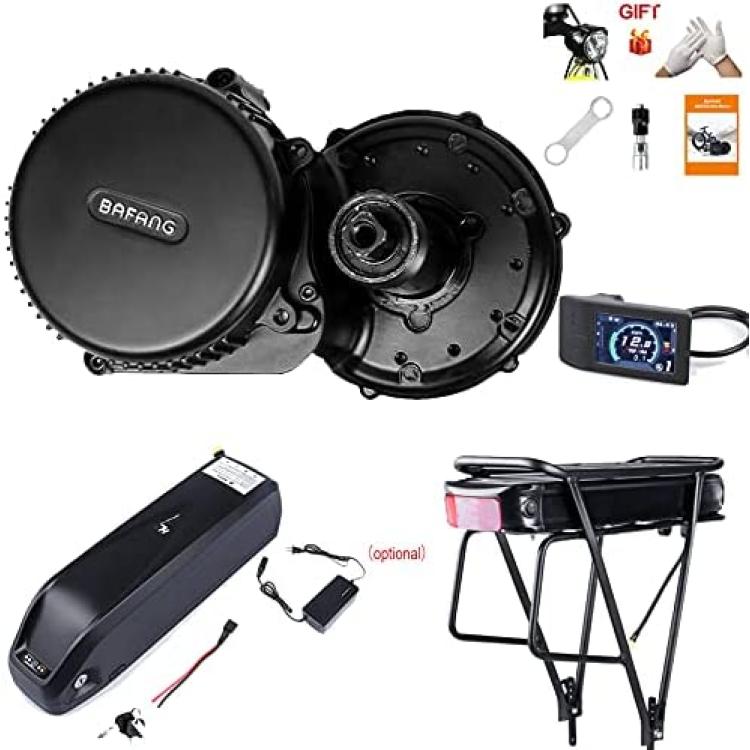

Packing List BAFANG Mid Drive Motor ( with Integrated Controller )
Battery (optional)- Shark Battery with Charger ( Bike Frame/Downtube Battery ): 48V 13Ah/17.5Ah/18Ah/20Ah
- Rear Battery with Charger ( Rear rack is included ): 48V / 52V 17.5Ah
LCD Display (optional)
Brake Lever (Default) OR Brake Sensors
Thumb Throttle
Chainwheel
Cranks
Speed Sensor & Magnets
1T4 Cable (EB-BUS Waterproof Cable)
Lock Nuts *1 set
Manual
Free Gift ( Headlight, Wrench, Crank removal tool, Gloves, Extension Cable, Stickers, Bolt and Gaskets for BB73mm

FAQ:

1. What kind of bike can be installed with the motor?

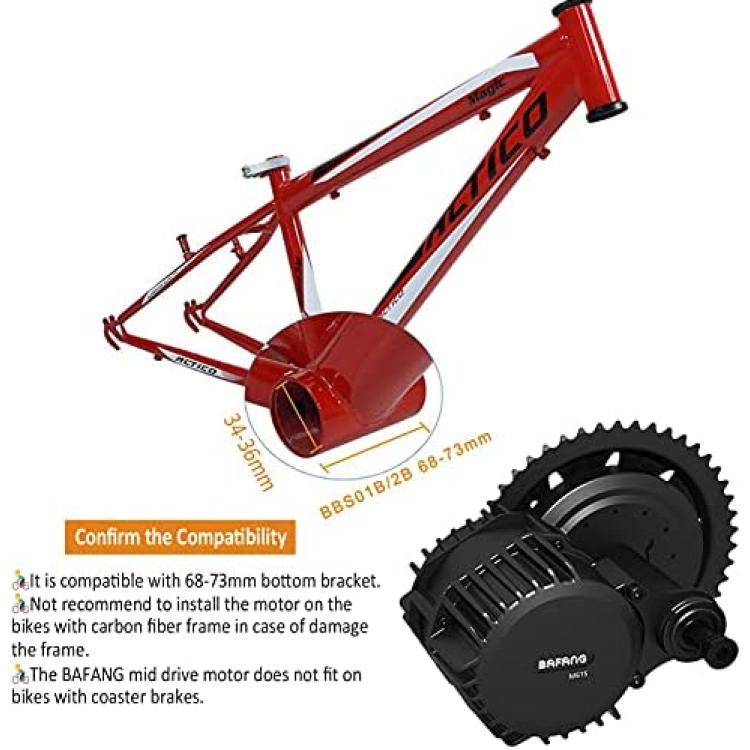

---- The BBS02B mid drive motor fits for 68-73mm bottom bracket.

2. How can I exchange the brake levers to brake sensors?
---- Please send us an email with your order number, we will ship you the brake sensors as you request.

3. If you want to change to other specifation, such as a chainring with different size or another display that is not listed. Please send us an email and we will help you.
