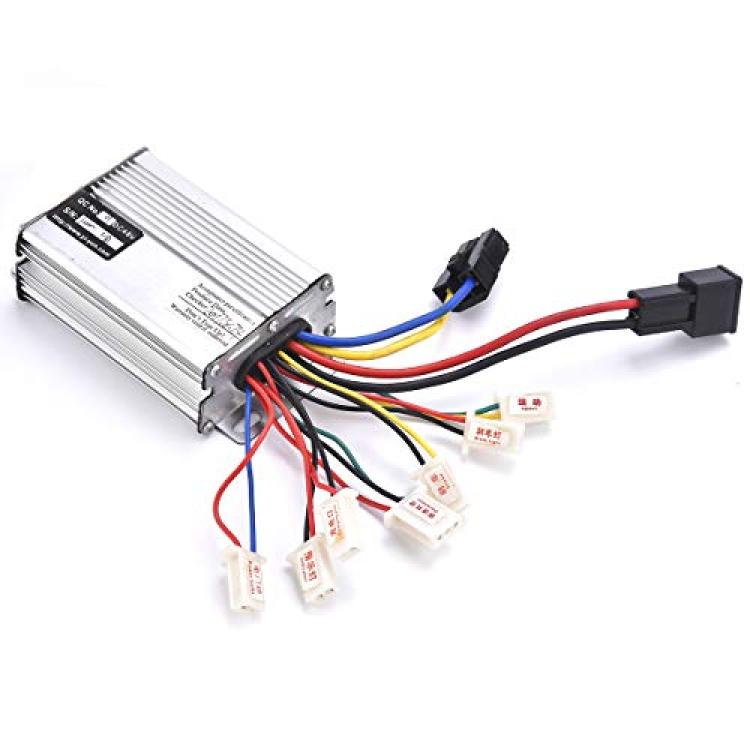

Aftermarket Controller 48v 1000w for Brushed Electric Motor Engine Scooter with Black Battery Connector Terminal

Controller for 48v 1000w brushed electric motor/engine.

Specifications:
Voltage: 48V
Rated Power: 1000W
Compatible for: 700-1000W motor

Controller wiring instructions
To the motor to work at least first connected to the first four connectors, the first controller on the two thicker blue and white lines connected to the motor, in which the blue line of the red motor, white line to the motor black line. Followed by the controller of the two red and black lines connected to the battery, the red line then the battery cathode, black line connected to the negative. The third re-connected to the speed control to the joints, (speed control turn to have three lines, be sure the red line on the red line, black line on the black line phase). Once again connected to the electric lock, open the door locks, turning the motor can run.

Wiring Diagram

?Red & Blue (Small Cable): Key Switch(Power Lock): If there is no switch please connect red to blue.
?Red & Black (Small Cable): Indicator
?Red & Black (Small Cable): Charging Port, Red to +, Black to -
?Red, Black & Green(Small Cable): To Speed Regulator, 1-5v Throttle. Red:+5v, Black: -, Green: Signal
?Yellow & Black (Small Cable): Brake, to front/ rear brake switch on brake levers
?Red & Black (Small Cable): Brake Light
?Green & Yellow(Small Cable): Sports Model Switch
?Red & Black (Thick Cable): To Battery, Red: +, Black: -
?Blue & Yellow (Thick Cable): To Motor, Blue: +, Yellow: -

Notes
1.Do not take the wrong power cord, or will burn.

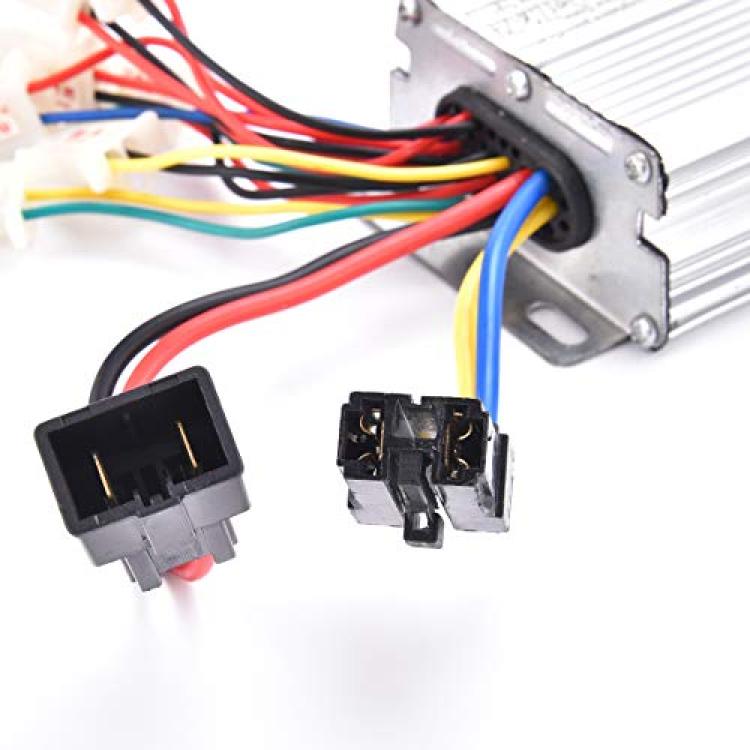

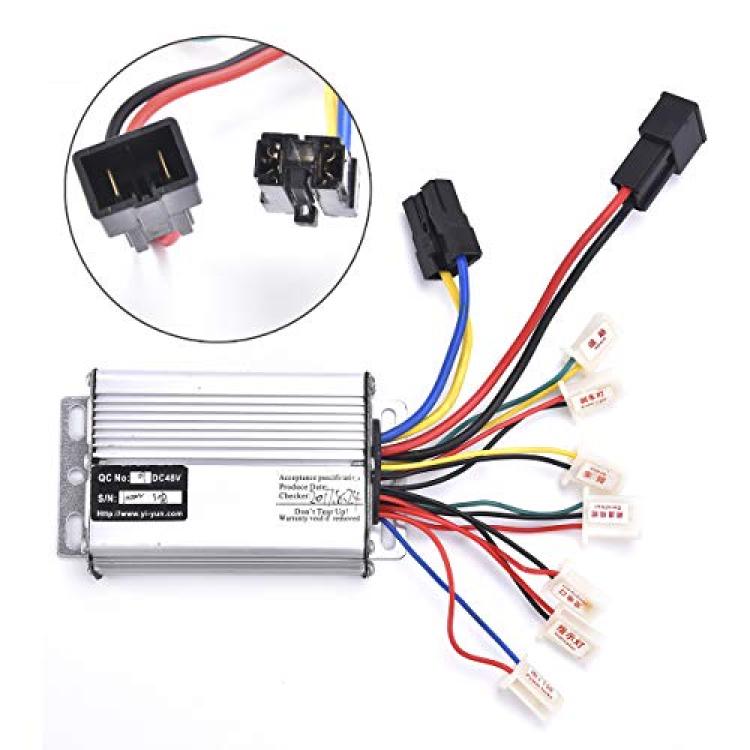

2.There are 2 styles of battery and engine connector for this controller.They are not compatible. This listing is with BLACK connector as picture showed.
