OVNSHVN Electric Bike Controller 48V 1000W Brushed Controller Electric Bicycle E-Bike Scooter Motor Brush Speed Controller Accesso silver

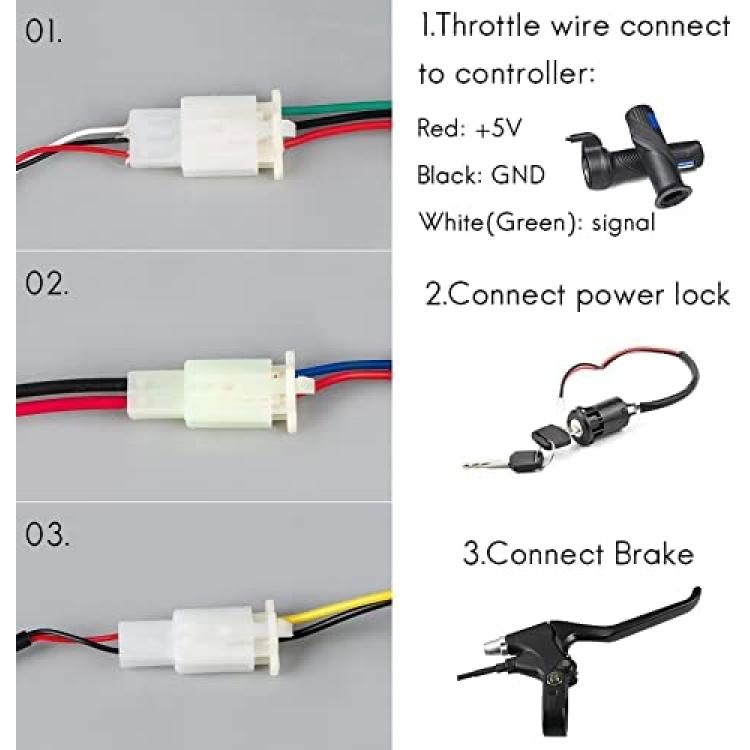

Specification: Voltage: 48V Rated power: 1000W Compatible for: 700-1000W motor Colour: silver Material: Metal Application: electric bicycles, scooter, Controller wiring instructions: the motor will be working should be connected to the first four connectors at least The first controller on the two thicker and white lines connected to the motor, in which the line of the red motor, white line to the motor black line Followed by the controller of the two red and black lines connected to the battery, the red line then the battery cathode, black line connected to the negative The third re-connected to the speed control to the joints, (speed control turn to have three lines, be sure the red line on the red line, black line on the black line phase) Once again connected to the electric lock, open the door locks, turning the motor can run Package Contents: 1 x Brush motor controller Note: Only the above package content, other products are not included. Light shooting and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is +/- 1-3cm
