520 High Torque Micro Brush DC Motor Low Speed Gear Reduction Motor Eccentric Shaft Gearbox Diameter 37mm High Torque All Metal Gear Electric Micro Gear Motor (24 Volt, 200RMP)
Availability: Pre-Order, Inquiry Price
About this product
*All gears are made of metal materials, with stable rotation, wear resistance and large transmission torque.
*Pure copper coil can effectively isolate dust and high temperature. Its service life is ten times that of ordinary coating. The power output of the motor is like running water.Low noise and high torque, such as 200 rpm, can drive 0.58 kg / cm.
*D-shaped output shaft is made of 45 steel to improve service life.
*Metal gear;Supporting speed regulation;High-quality magnetic tile; Super torque; Pure copper coil;Forward and reverse rotation.
*Overload / locked rotor use will cause the motor to burn down or the gear set to crack.
Description

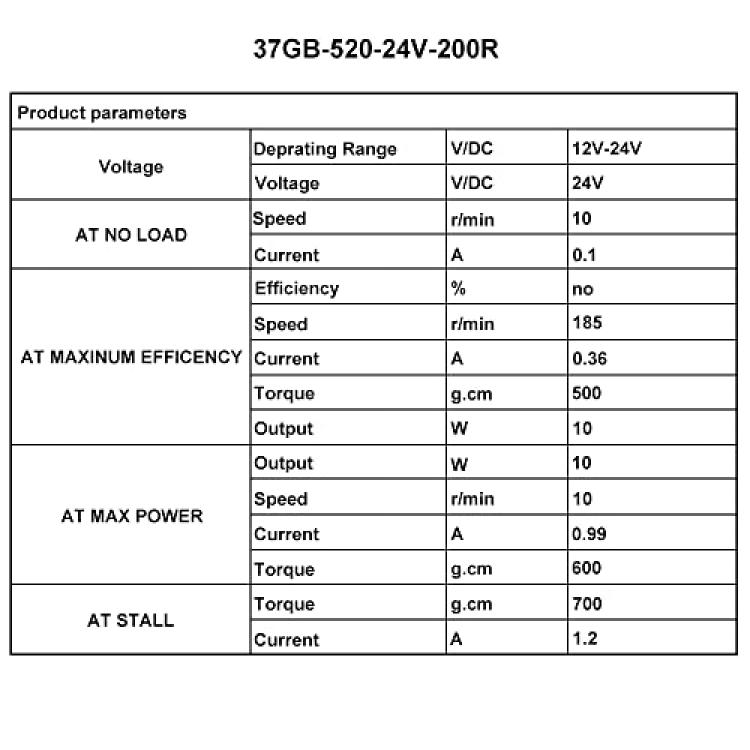

Product parameters
Mode name: 24V-37GB520-200R
Rated Voltage: 24V
Reduction ratio: 1:30
No Load Speed: 200RPM
No Load Currrent?0.3A
Rated torque: 0.58kg f/cm
Rated current: 1A

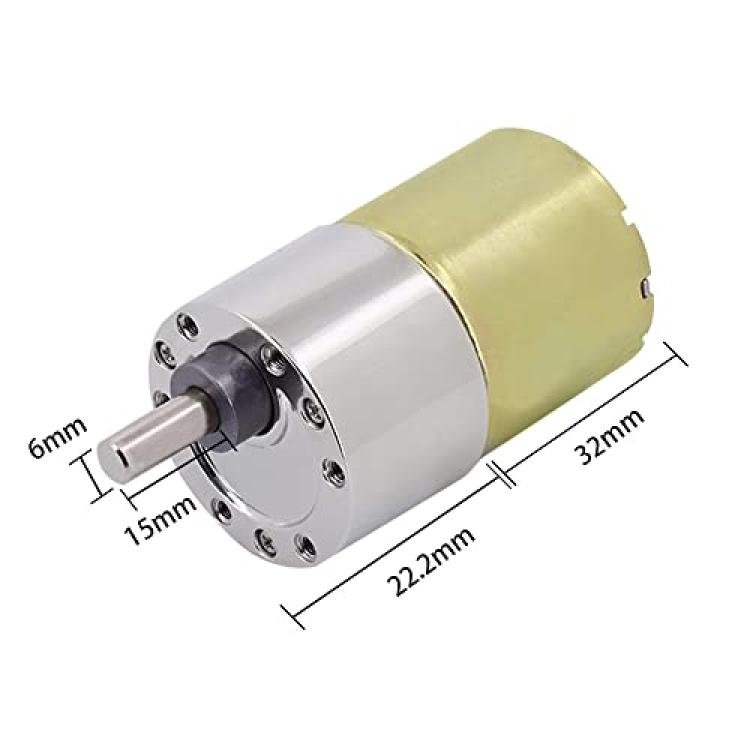

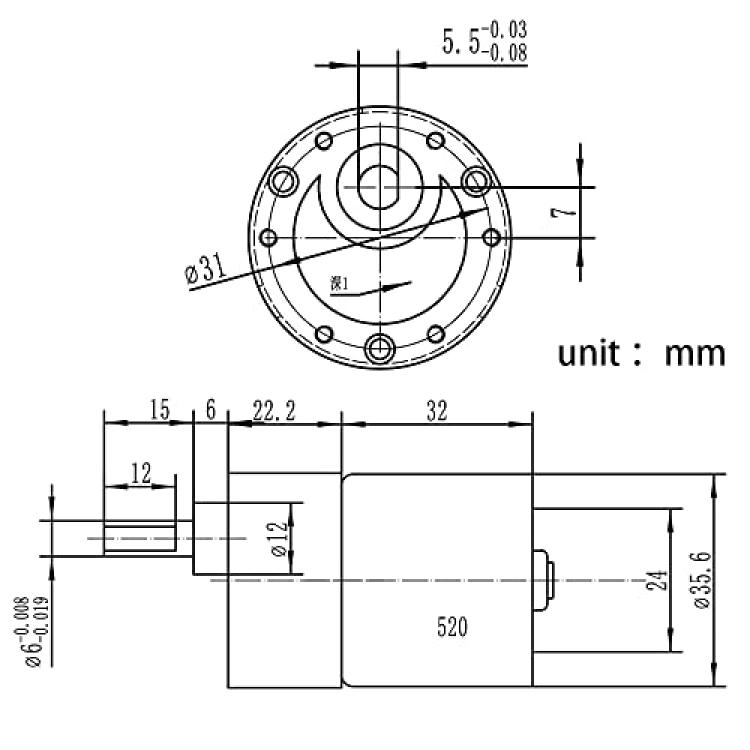

D-shaped output shaft size: 6 * 15mm (0.24 inch x 0.59 inch)
?D*L?Gearbox size: 37 x 22.2 mm (1.46 in X 0.87 in)
Motor size: 35.5 x 32 mm (1.40 "x 1.26")
Mounting hole size: m3 (excluding)
