555 High Torque Micro Brush DC Motor Low Speed Gear Reduction Motor Eccentric Shaft Gearbox Diameter 37mm High Torque All Metal Gear Electric Micro Gear Motor(24 Volt, 200RPM)
Availability: Pre-Order, Inquiry Price
About this product
*All gears are made of metal materials, with stable rotation, wear resistance and large transmission torque.
*Pure copper coil can effectively isolate dust and high temperature. Its service life is ten times that of ordinary coating. The power output of the motor is like running water.
*D-shaped output shaft is made of 45 steel to improve service life.Low noise and high torque, such as 200rpm, can drive 1.7 kg / cm.

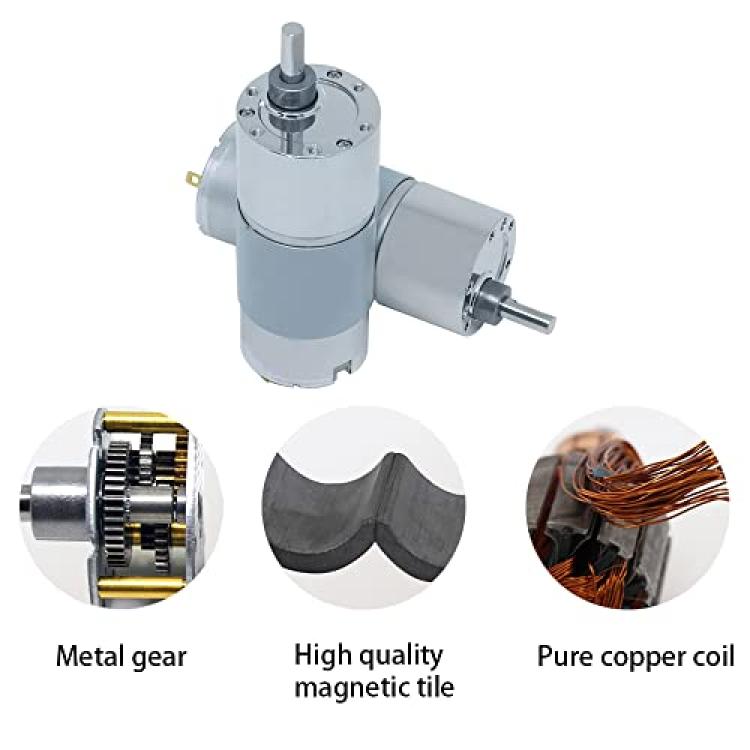

*Metal gear;Supporting speed regulation;High-quality magnetic tile; Super torque; Pure copper coil;Forward and reverse rotation.
*Overload / locked rotor use will cause the motor to burn down or the gear set to crack.
Description

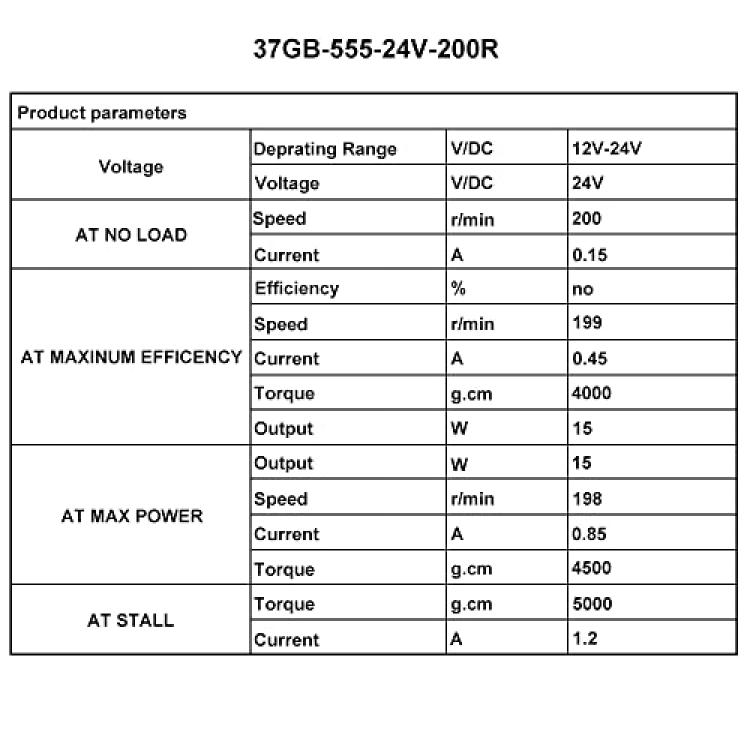

Product parameters
Mode name: 24V-37GB555-200R
Rated Voltage: 24V
Reduction ratio: 1:30
No Load Speed: 200RPM
No Load Currrent?0.3A
Rated torque: 1.7kg f/cm
Rated current: 1A

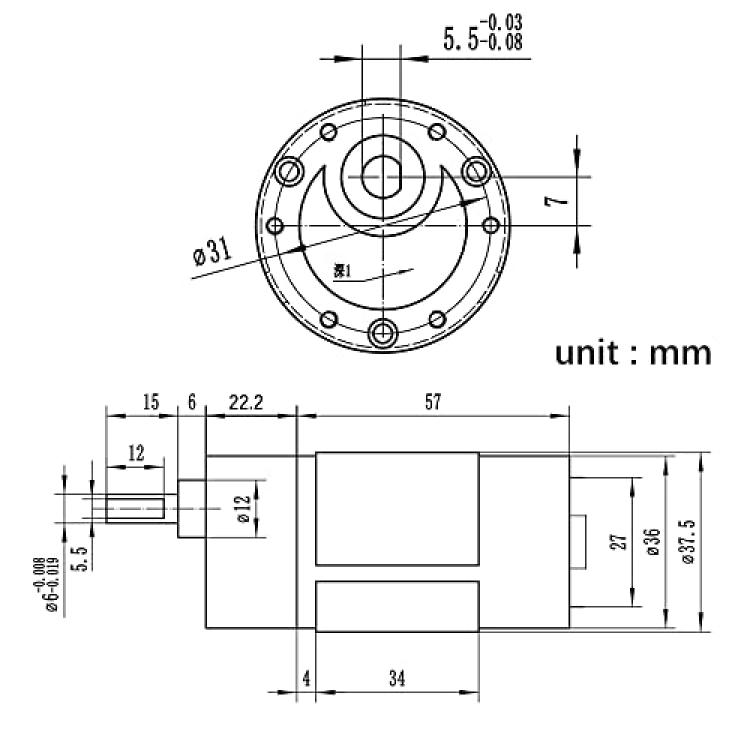

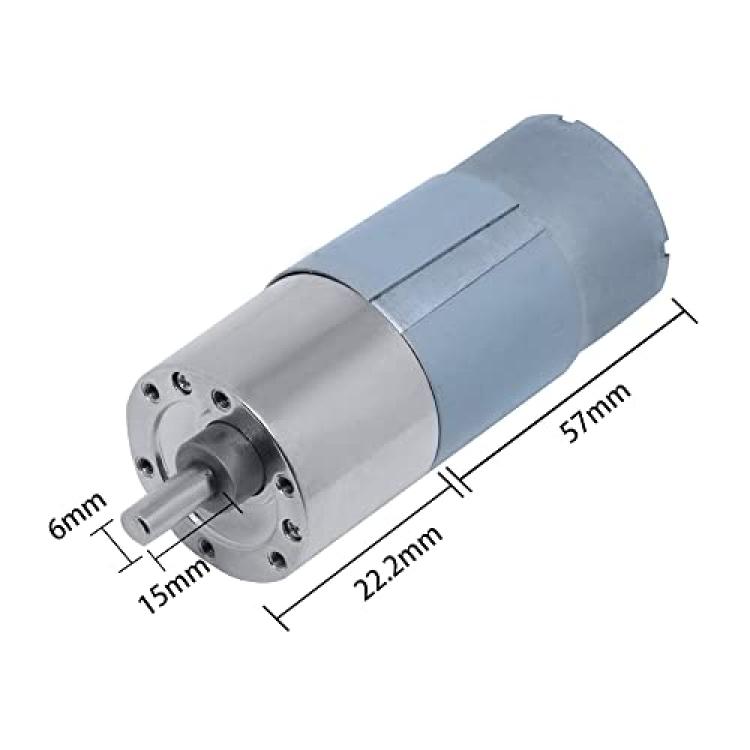

D-shaped output shaft size: 6 * 15mm (0.24 inch x 0.59 inch)
?D*L?Gearbox size: 37 x 22.2 mm (1.46 in X 0.87in)
Motor size: 36.5 x 57mm (1.44 "x 2.24")
Mounting hole size: m3 (excluding)
