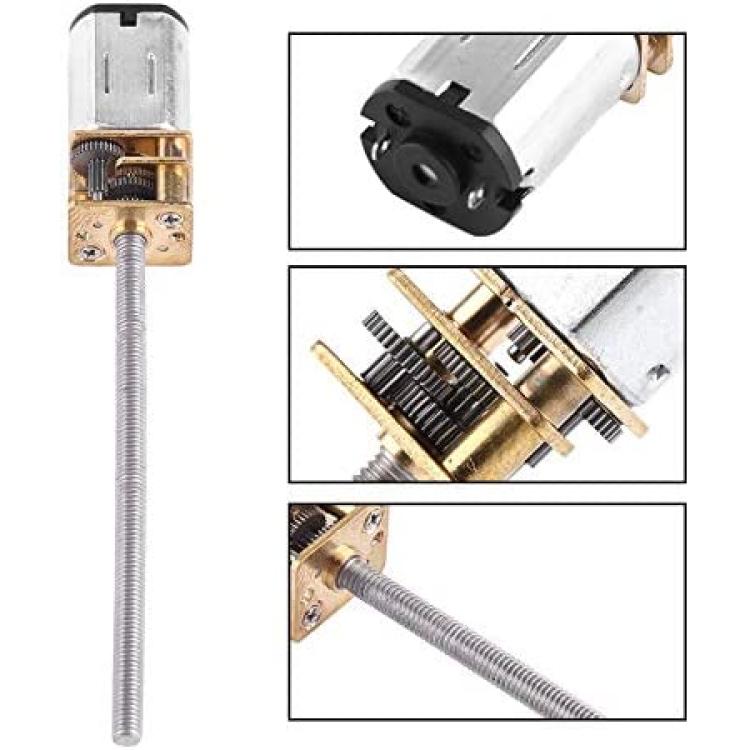

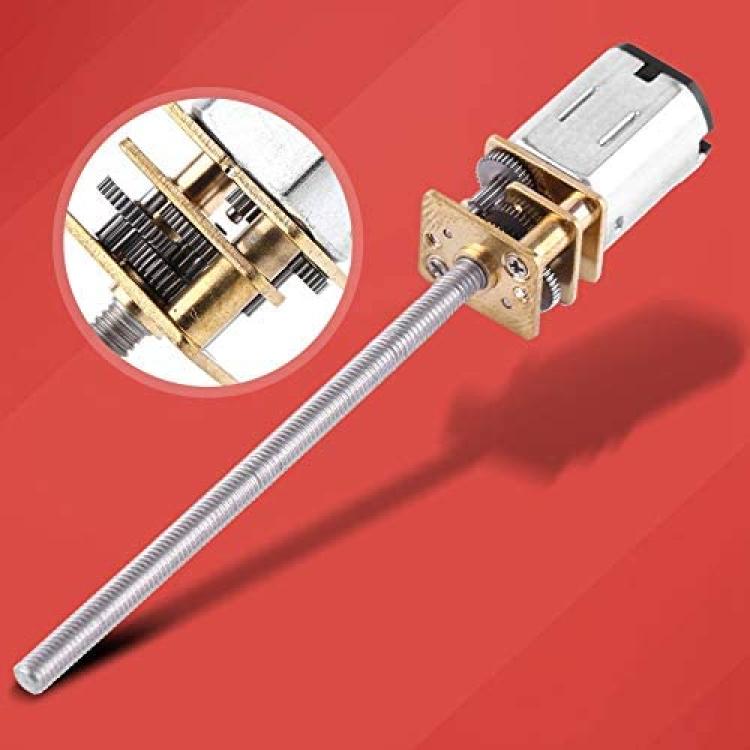

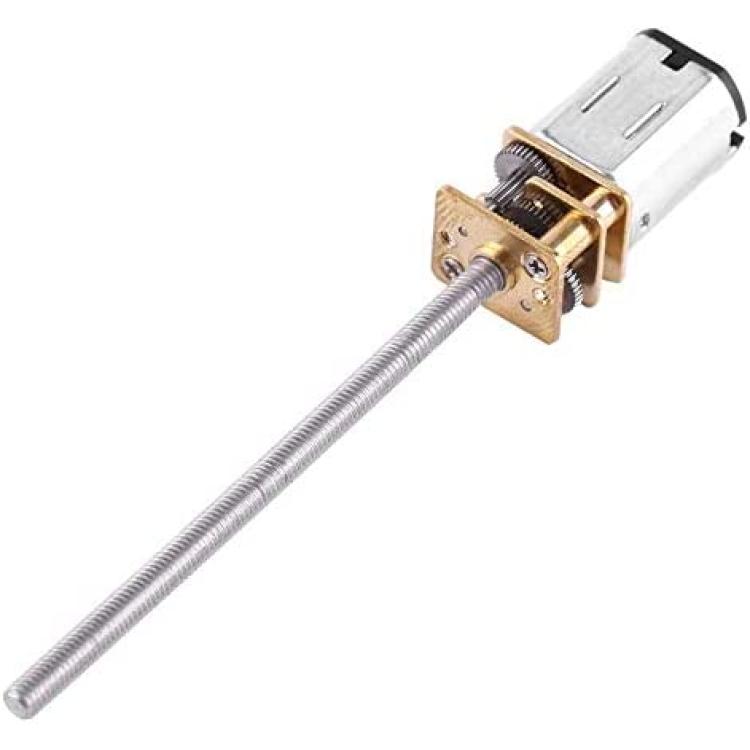

DC 6V Gear Motor High Torque Electric, with Long M3*55MM Screw Thread Output Shaft 30/60/100/150/200/300/400/500RPM for Many Devices in Your Home(6V 60RMP)
About this product
*【Features】Gear motor is a specific type of electrical motor, primarily used to reduce speed in a series of gears, which in turn creates more torque
*【All Metal】High-temperature resistance, high abrasion resistance, strong load capacity, ensure a longer service life, effectively protect the gear box motor body
*【Speed Optional】This gear motor has eight different speeds, include 30/60/100/150/200/300/400 / 500RPM, you can adjust it according to your needs
*【Application】The gear motor has many different application fields and can be widely used in many devices in the home.
*【compose】This DC gearmotor has an integrated M3*55mm threaded rod as its output shaft, turn it into a linear actuator
Description
Features:
A gear motor is a specific type of electrical motor that is designed to produce high torque.
Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more torque.
Full metal gears would ensure a longer service life, high torque and less noise.
There are eight reduction gear motors of different speed and you can choose the one you need.
Gear motors can be found in many different applications, and are probably used in many devices in your home.
Specifications:
Voltage: DC 6V
Speed: 30RPM, 60RPM, 100RPM, 150RPM, 200RPM, 300RPM, 400RPM, 500RPM(Optional)

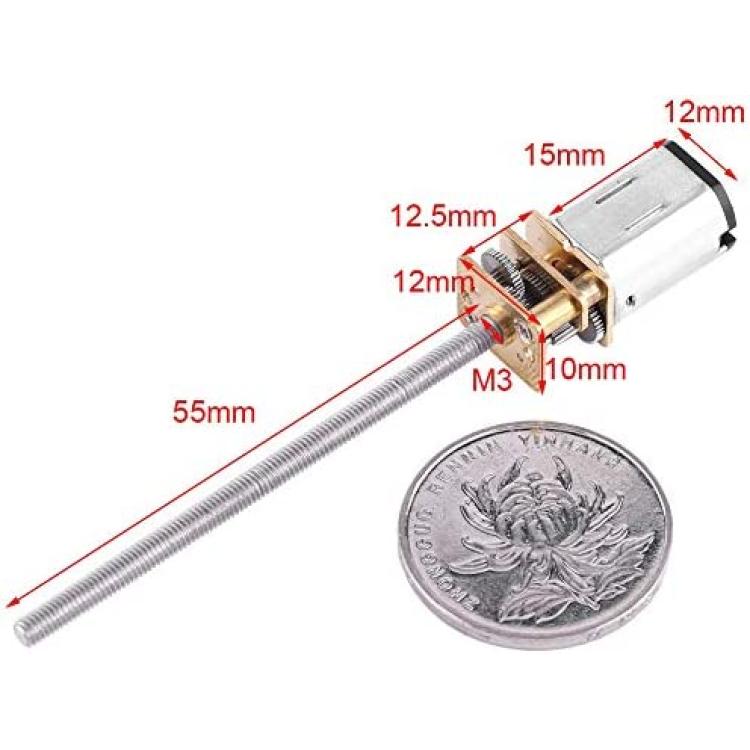

Output Shaft Length: 55mm / 2.16"
Output Shaft Diameter: M3
No Load
Rated Load / Stalling Speed(RPM) /Current(A)/ Speed(RPM) /Current(A) /Torque(KG.CM) /Torque(KG.CM)/Current(A)
500/0.16/400/0.23/0.15/1.0/0.56
400/0.04/340/0.07/0.17/1.40/0.2
300/0.03/240/0.04/0.20/1.60/0.2
200/0.03/160/0.06/0.30/1.80/0.23
150/0.03/120/0.05/0.35/2.40/0.25
100/0.01/80/0.03/0.40/3.20/1.0
60/0.03/50/0.05/0.60/3.20/1.0
30/0.02/25/0.04/1.50/10.00/1.0
Package Includes:
1 x Gear Motor
