4 inch Motor Wheel Kit for Small Scooter 200W Brushless Gearless Hub Motor Diameter 105mm White Screen Display

4 inch Electric Motor Wheel Kit For Small Scooter 200W Brushless Gearless Hub Motor Diameter 105mm White Screen Display

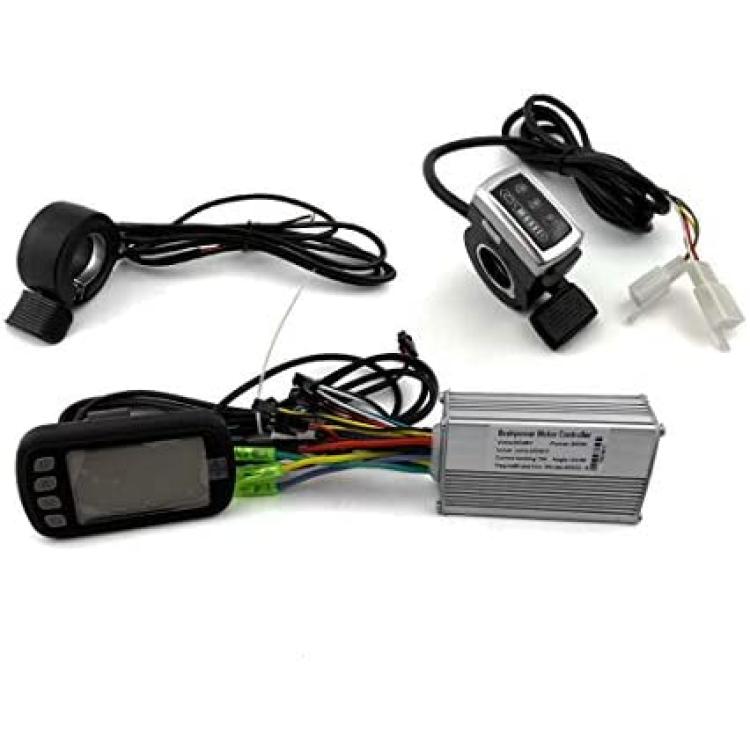

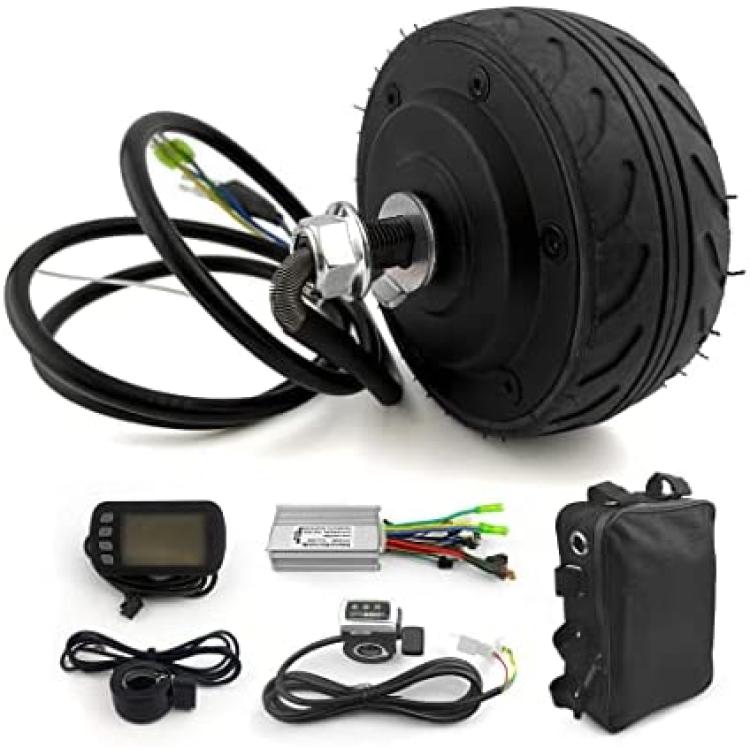

The kit includes:

1). 1x 4 inch 200W motor wheel

2). 1x Controller

3). 1x Accelerator thumb throttle (with button switch & battery indicator lights)

4). 1x Electric brake thumb throttle

5). 1x Bag (no battery)

6). 1x LCD display

7). Some cable ties and pipe



Note: this kit without battery and battery charger .



---------------------------------

This is a 4" brushless hub motor for electric scooter .

It is a gearless brushless hub motor. It is designed for high speed electric scooter or other high speed electric vehicles.

This motor with hall sensor, and its current power is 200W.

Motor specification

Model: FLD-4

Voltage: 24 / 36 Volt

Output: 200 Watt

Max speed: 20 KM/H

Rated Efficiency: 79%

Rated Current: 8.3A / 5.6A

Max Torque: 3.8 N.m

Max Loading: 70 KG

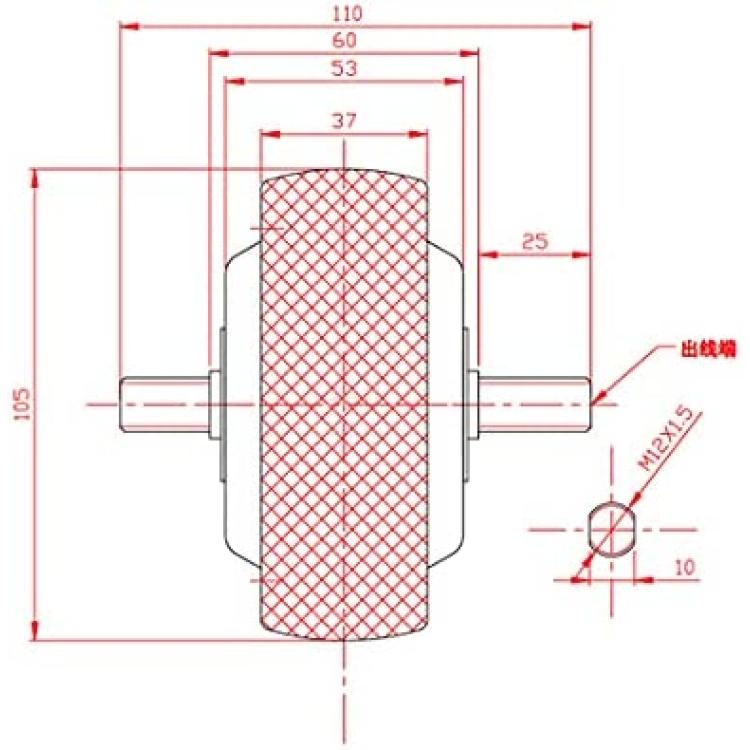

Wheel Size: 4 inch (outer diameter about 105mm)

Net Weight: 1.3 KG

Wuxing brand thumb accelerator (with power switch button and battery indicator lights):

Wuxing brand electric brake thumb throttle:

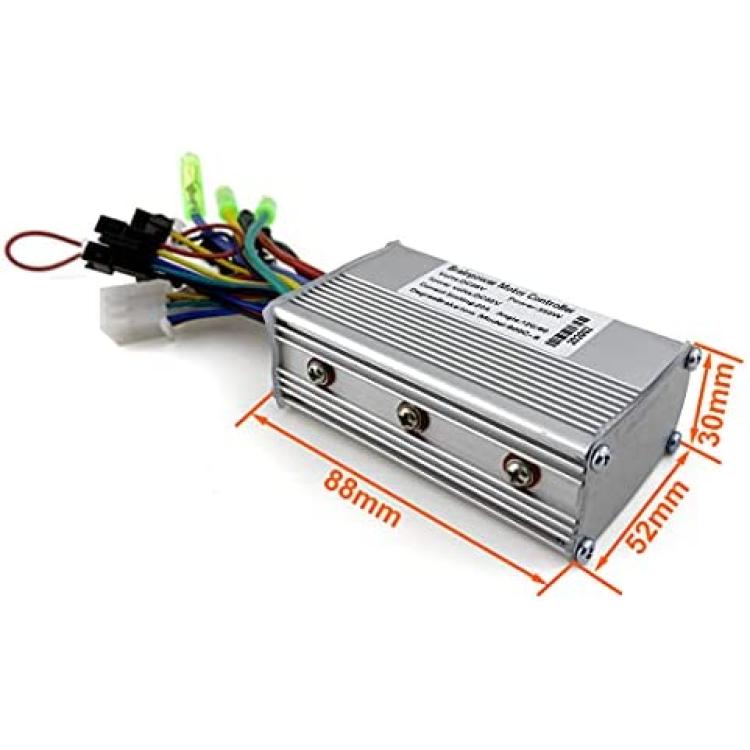

Controller:

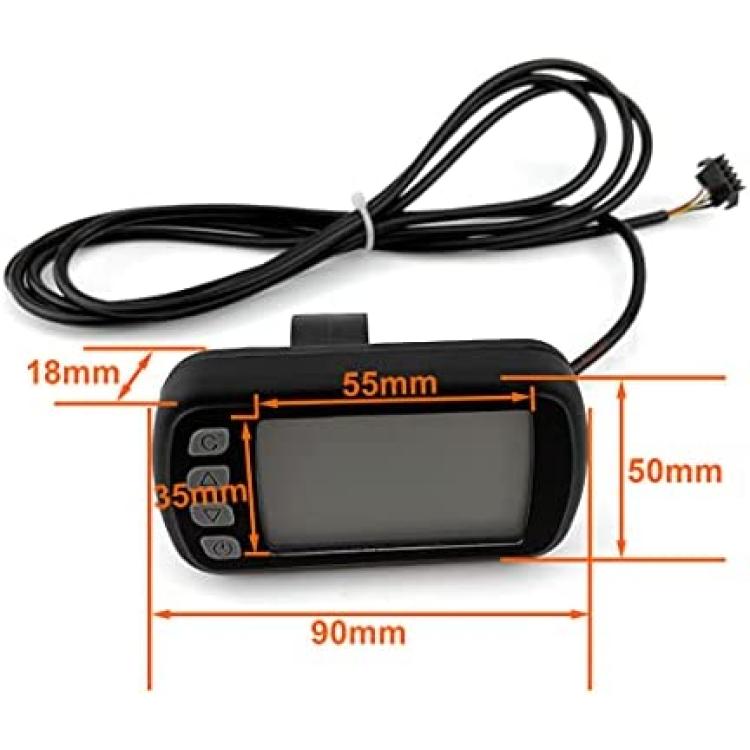

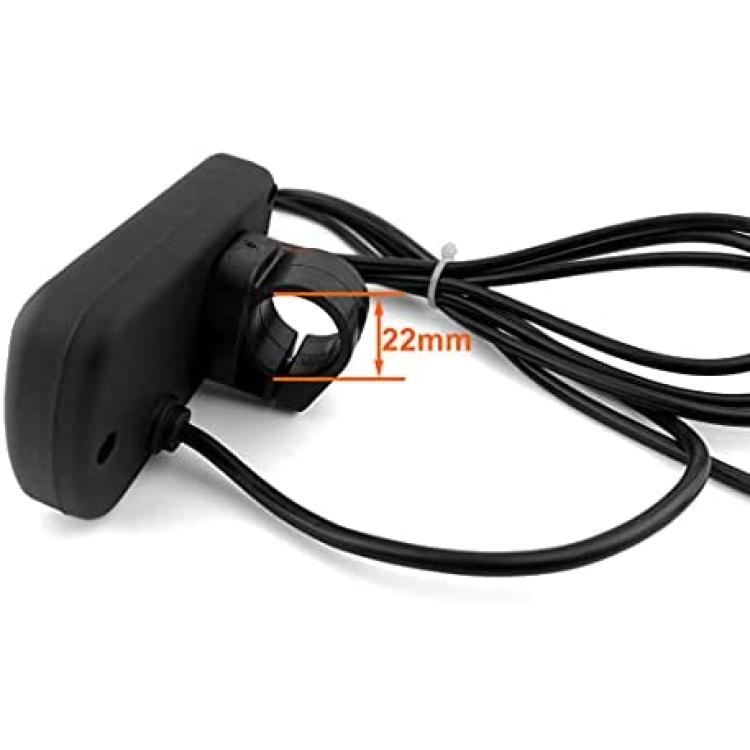

LCD display:

Battery bag:

(outer dimension is about 215x15x95 mm, fit the battery dimension 200x150x85 mm)

Cable ties and pipe:

8-inch motor wheel installation for reference only:
