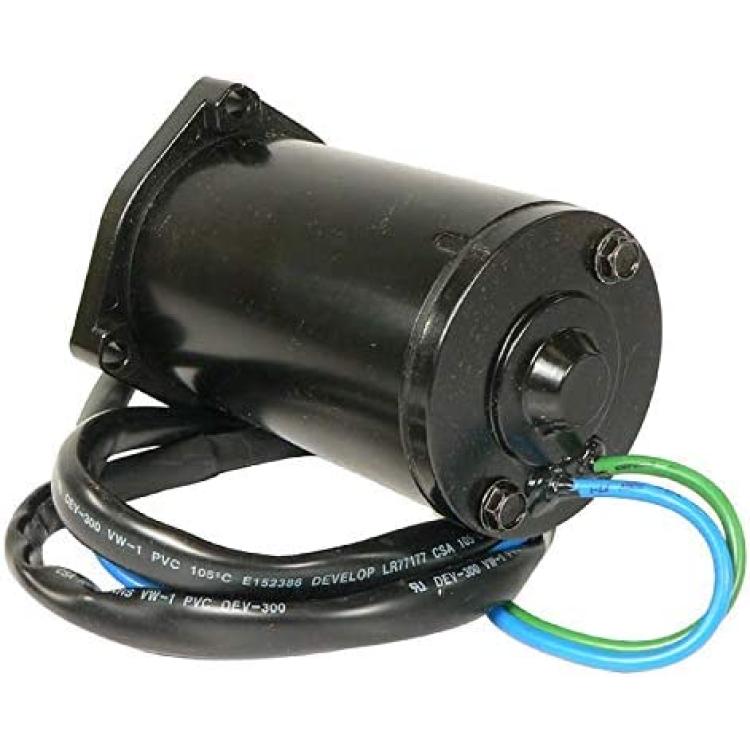

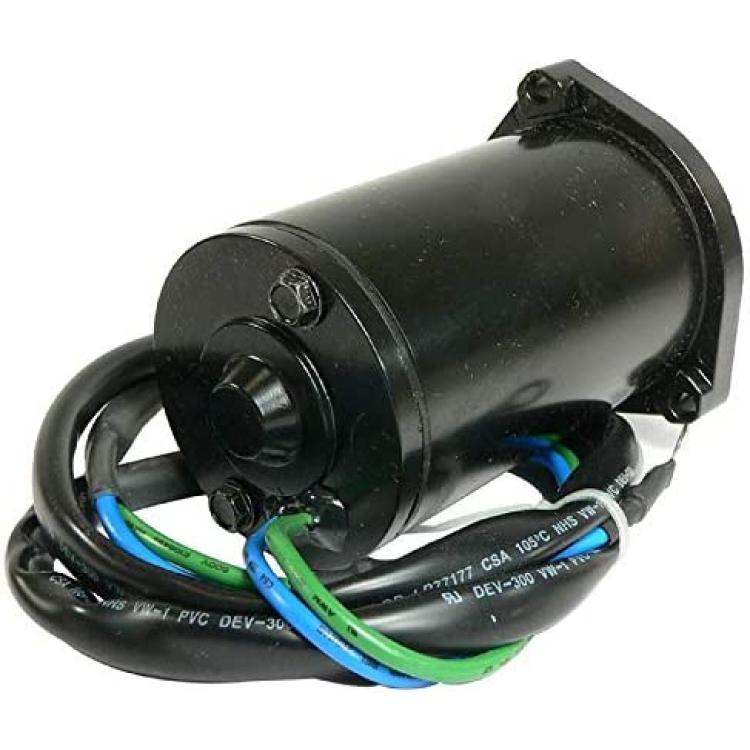

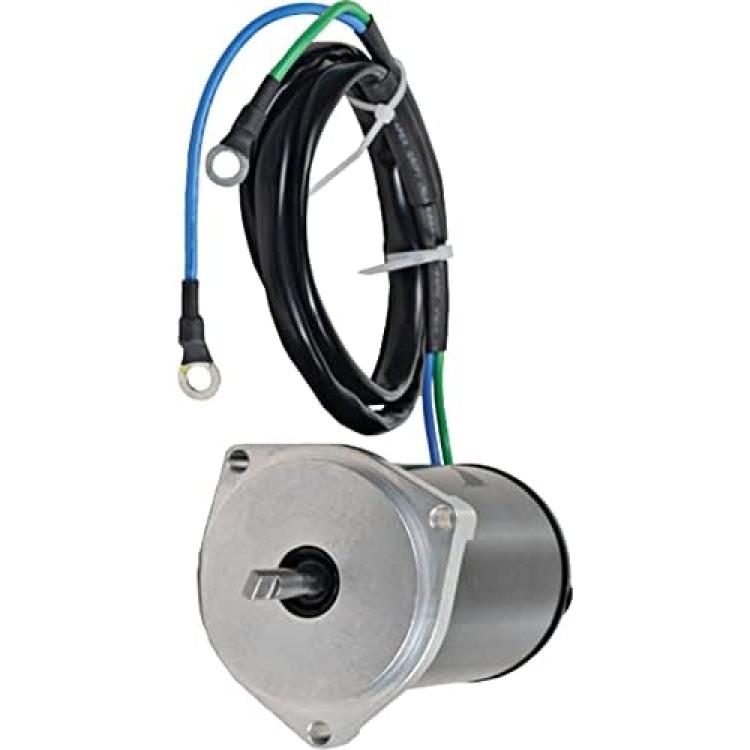

DB Electrical TRM0083 Power Tilt Trim Motor Compatible With/Replacement For Yamaha F50 F60 50 60 HP 2005 2006 2007 2008 2009 /6C5-43880-00-00, 6C5-43880-01-00/12 Volt
About this product
*Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit:, OD: 2.52in / 64mm, Shaft OD: 0.315in / 8mm, Length: 5.78in / 146.8mm, Terminal Size (2): 6.5mm, Notes:, (3) 5.2mm OD Mtg. Holes, Mtg. Holes 65.0mm, 67.4mm, 75.5mm C-to-C, 64.7mm Mtg. Ring OD, 6.3mm OD Eyelets on End, Brief: Yamaha 50-60HP Outboard Motors 2005-16
*Replaces OEM Numbers: API MARINE: PT625NM, ARCO MARINE: 6257, ARROWHEAD: TRM0083, EMP UnitS: 4-6836, J & N: 430-22077, LESTER: 10860, QUICKSILVER: 8M6007564, WAI: 10860N, Yamaha: 6C5-43880-00-00, 6C5-43880-01-00
*Compatible With/Replacement For: YAMAHA F50LA 2013-2013, F50LB 2014-2016, F50TLR 2005-2012, F60JA 2013-2013, F60JB 2014-2016, F60LA 2013-2013, F60LB 2014-2016, F60TJR 2005-2012, F60TLR 2005-2012, T50LA 2013-2013, T50LB 2014-2016, T50TLR 2005-2005, T60LA 2013-2013, T60LB 2014-2016, T60TLR 2005-2012
*1-year warranty protects you after your purchase. Were confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, well replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
*100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications
Description
**Verify part fits before purchasing**
Specs:
Unit Type: Tilt & Trim Motor
Voltage: 12
Rotation: RE
Replaces OEM Numbers:
API MARINE: PT625NM
ARCO MARINE: 6257
ARROWHEAD: 430-22077
EMP PARTS: 4-6836
J & N: 430-22077
LESTER: 10860
WAI: 10860N
YAMAHA: 6C5-43880-00-00, 6C5-43880-01-00
Compatible With/Replacement For:
YAMAHA: F50LA 2013, F50LB 2014-2016, F50TLR 2005-2012, F60JA 2013, F60JB 2014-2016, F60LA 2013, F60LB 2014-2016, F60TJR 2005-2012, F60TLR 2005-2012, T50LA 2013, T50LB 2014-2016, T50TLR 2005, T60LA 2013, T60LB 2014-2016, T60TLR 2005-2012
