Greenergia 9Pin Waterproof Extension Cable for BAFANG Hub Motor Ebike Conversion Parts Extension Wire 9PIN （80CM/158CM/90CM/150CM

9Pin Waterproof Wheel Motor Extension Cable for BAFANG Electric Bike Front Rear Hub Motor Conversion Kit Wire

ITEM SPECIFICATION:

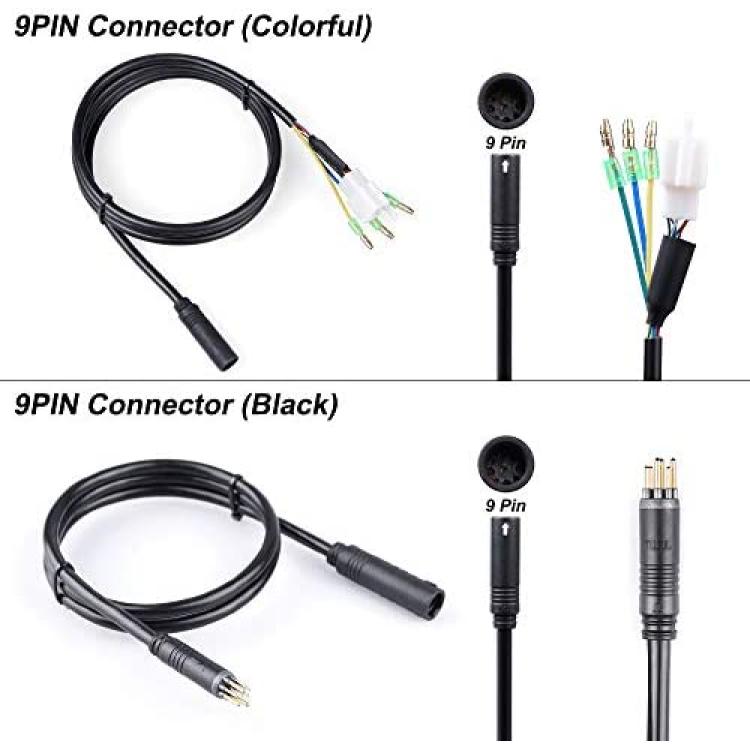

9PIN Conector (Colorful):
?Suitability:Motor Extension Cable
?Cable Length:80cm/158cm
?Connector Size(mm):Max Ø 10*50
?Pin Surface Treatment:Gold Plating
?IP-Code:IP 65
?Cetifications:ROHS
?Attention:We advise 80cm cable uses for rear hub motor, 158cm cable for and front hub;The blue, green and yellow lines are phase lines, the other 6 lines are hall current sensors, where the white lines are speed measuring signal lines.

9PIN Conector (Black):
?Suitability:Motor Extension Cable
?Cable Length:65cm/90cm/125cm/150cm
?Connector Size(mm):Max Ø 10*50
?IP-Code:IP 65
?Cetifications:ROHS
?Attention:Extension cord with arrow mark for easy installation
