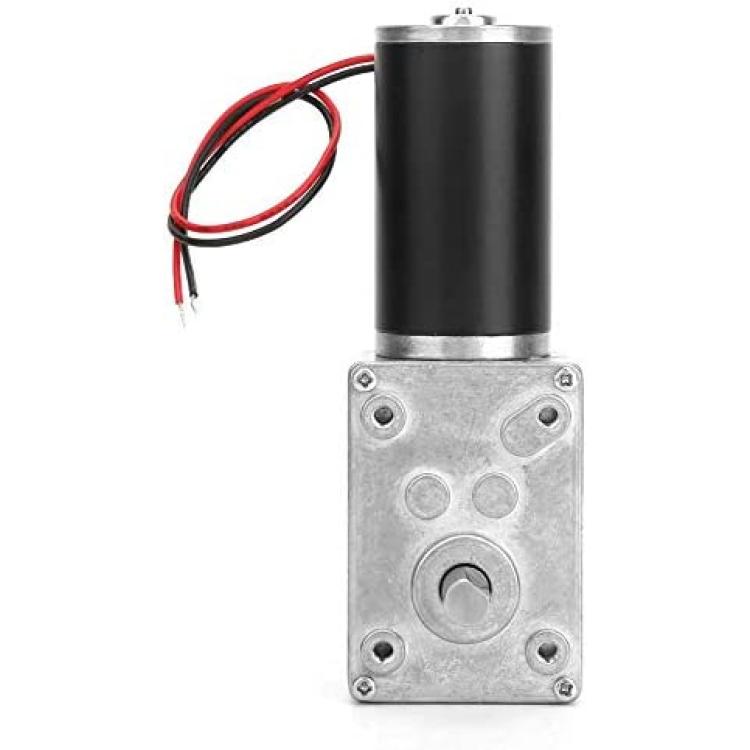

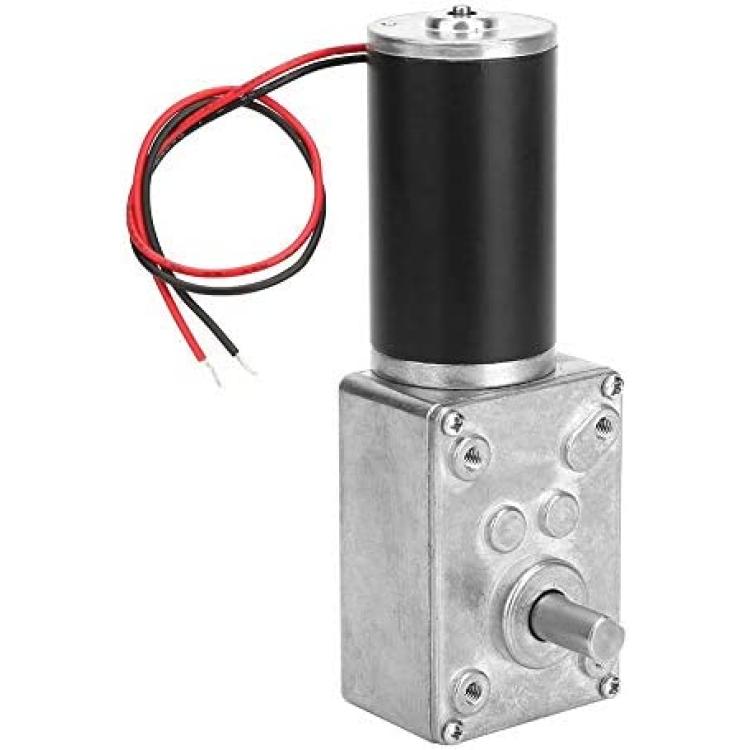

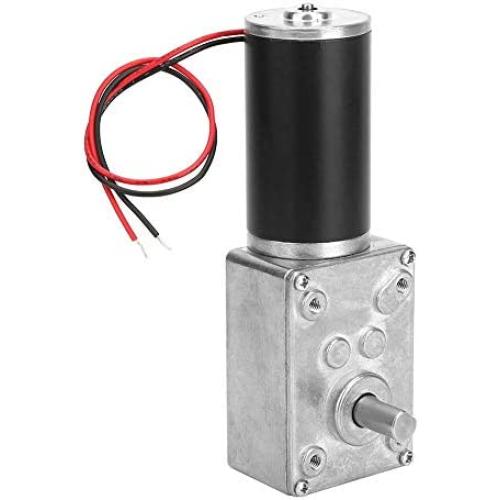

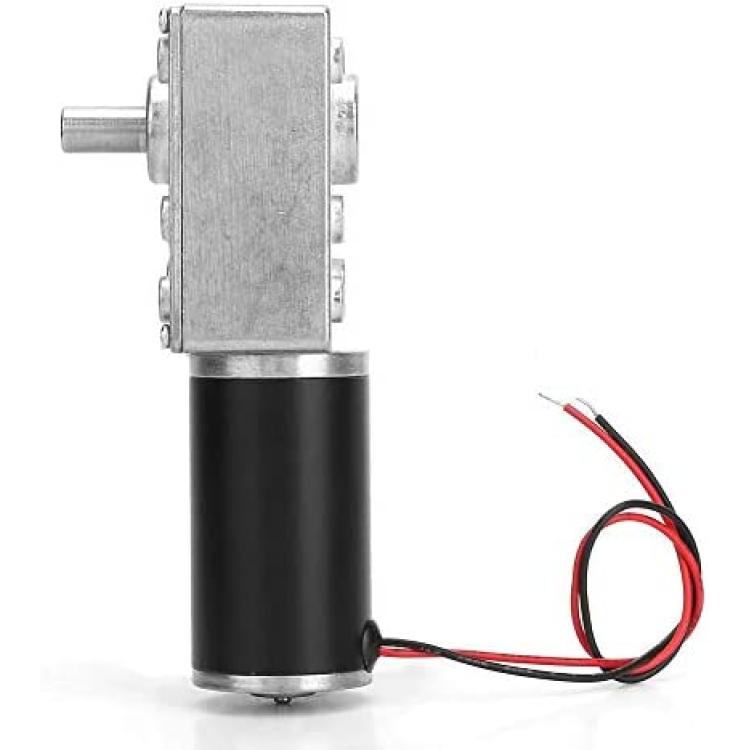

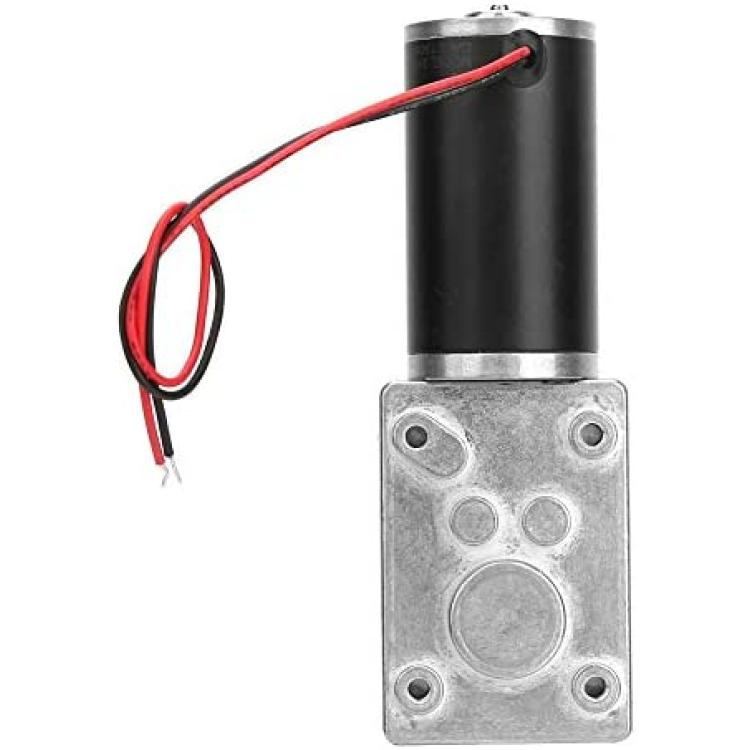

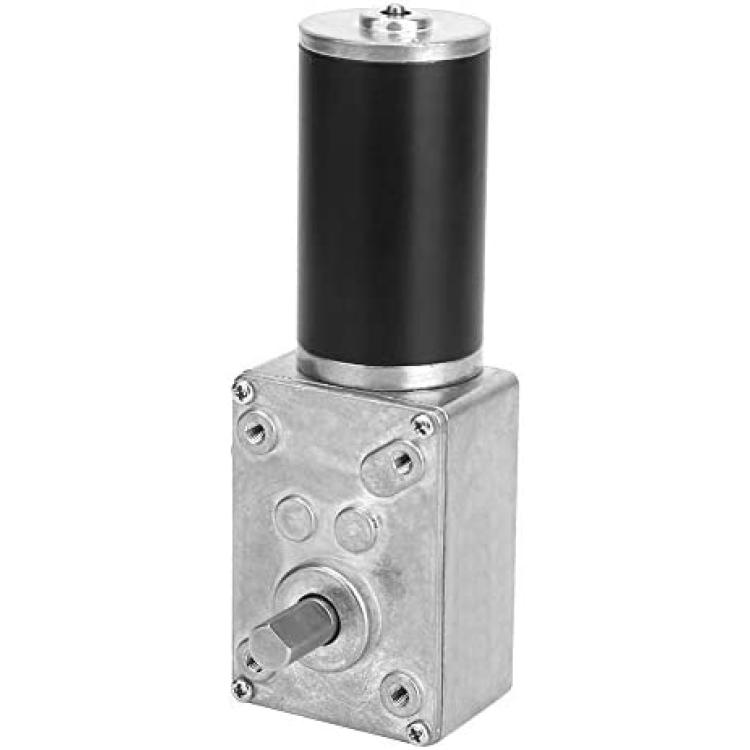

Motor High Torsion Speed Reduce Electric Gearbox Motor Reversible Worm Gear Motor 8mm Shaft Permanent Magnet Controls Power Tool Replacement Parts 24V(70RPM)
About this product
*【LONG SERVICE LIFE】: Made of high quality material, durable and long service life.
*【SMALL VOLUME AND BIG TORSION】: 31mm high quality copper tube motor, small volume and big torsion
*【RESISTANCE OF SHAFT】: Ball bearing design enhances the wear resistance of shaft
*【IMPACT RESISTANT】: All metal gears are impact resistant, long life and low noise
*【WIDESPREAD USE】: Generally used in curtain machines, advertising equipment, window openers and smart devices
Description
Specification:
Condition: 100% Brand New
Voltage: 24V
Optional Style: 200RPM, 100RPM, 70RPM, 35RPM, 20RPM, 12RPM, 7RPM, 5RPM
Voltage V
24
24
24
24
24
24
24
24
Rated speed RPM
200
150
100
50
20
15
10
5
Rated torsion Kg.cm
3.4
6.2
10
20
40
60
70
70
Rated current A
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Maximum torsion Kg.cm
5
9
15
29
60
70
70
70
Stop current A
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
Package List:
1 * Worm Gear Motor
Instructions for Use:
1. The gear can withstand up to 70KG, it is forbidden to block, and it is easy to burn the motor after blocking for a long time.
2. The motor has a self-locking function of power-off, and the positive and negative poles of the switching motor are controlled to reverse.
