Geare Motor, 24V High Torsion Reversible Worm Gear Motor Speed Reduce Electric Gearbox Motor 8mm Shaft Speed Reduce Motor for Smart Devices,Curtain Machines,etc(10RPM)
Availability: Pre-Order, Inquiry Price
About this product
*Made of high quality material, durable and long service life.

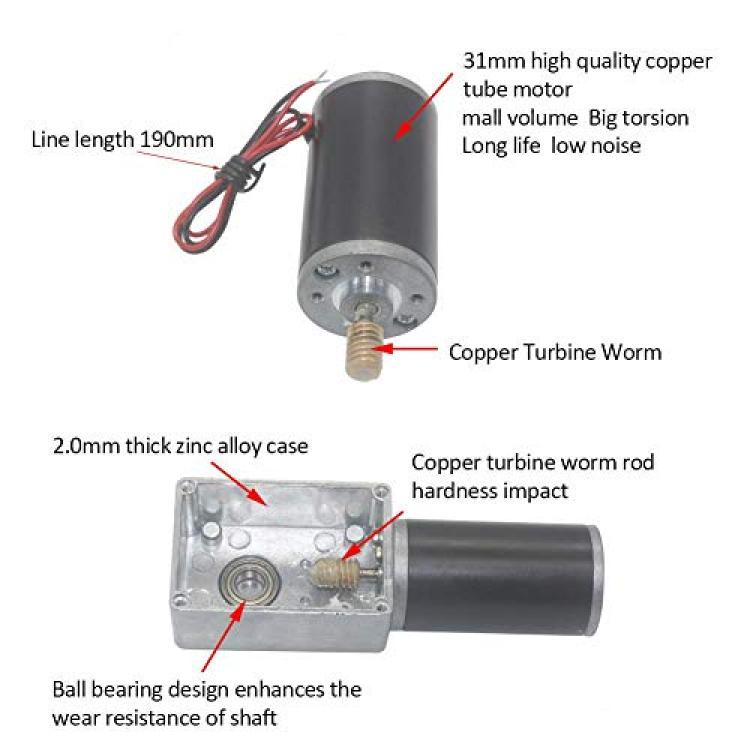

*31mm high quality copper tube motor, small volume and big torsion

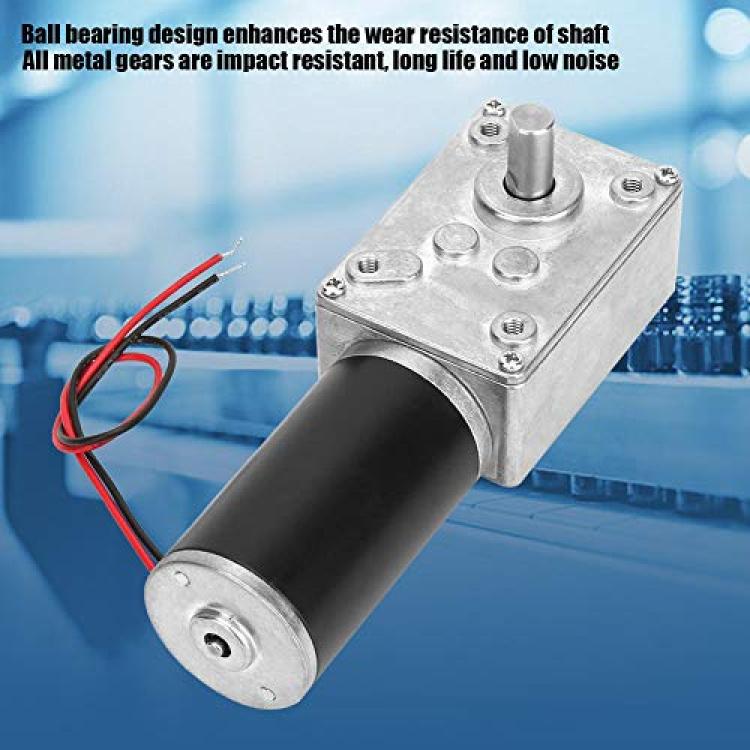

*Ball bearing design enhances the wear resistance of shaft

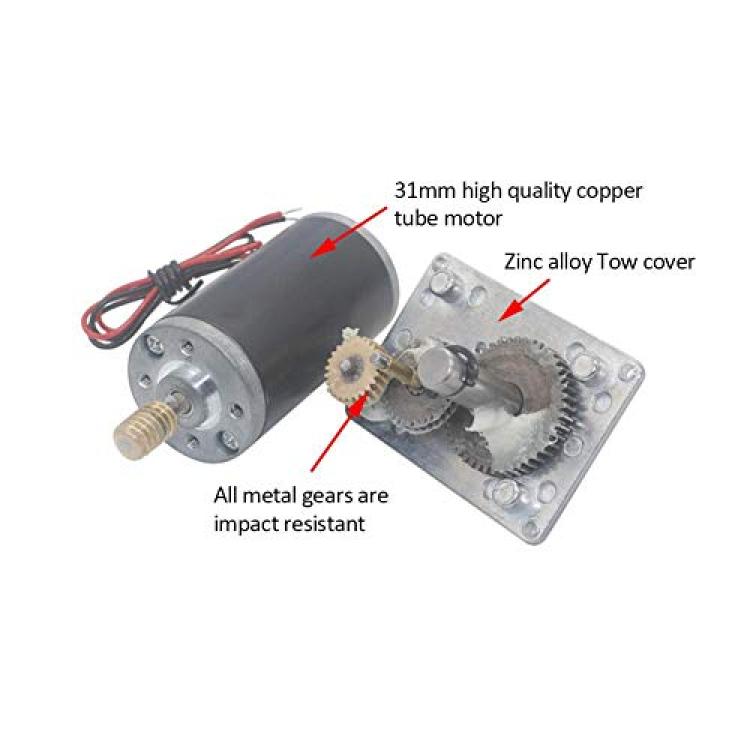

*All metal gears are impact resistant, long life and low noise
*Generally used in curtain machines, advertising equipment, window openers and smart devices
Description
Features:
1. Made of high quality material, durable and long service life.
2. 31mm high quality copper tube motor, small volume and big torsion
3. Ball bearing design enhances the wear resistance of shaft
4. All metal gears are impact resistant, long life and low noise
5. Generally used in curtain machines, advertising equipment, window openers and smart devices
Â
Specification:
Condition: 100% Brand New
Voltage: 24V
Optional Style: 230RPM, 130RPM, 80RPM, 40RPM, 20RPM, 15RPM, 10RPM, 5RPM
Voltage V
24
24
24
24
24
24
24
24
Rated speed RPM
230
130
80
40
20
15
10
5
Rated torsion Kg.cm
3.4
6.2
10
20
40
60
70
70
Rated current A
?0.6
?0.6
?0.6
?0.6
?0.6
?0.6
?0.6
?0.6
Maximum torsion Kg.cm
8
15
25
51
70
70
70
70
Stop current A
2
2
2
2
2
2
2
2
Â
Package List:
1 * Worm Gear Motor
Â
Instructions for Use:
1. The gear can withstand up to 70KG, it is forbidden to block, and it is easy to burn the motor after blocking for a long time.
2. The motor has a self-locking function of power-off, and the positive and negative poles of the switching motor are controlled to reverse.
