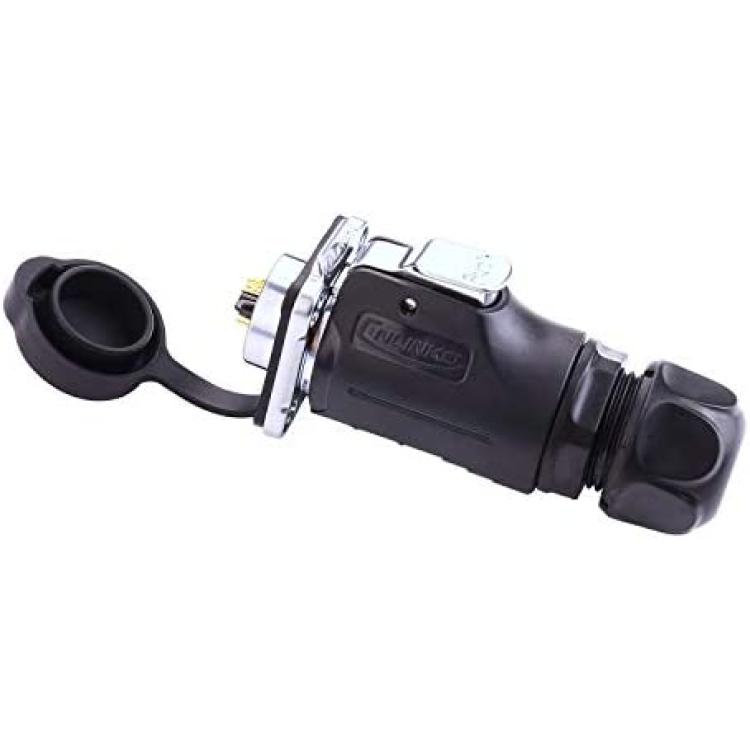

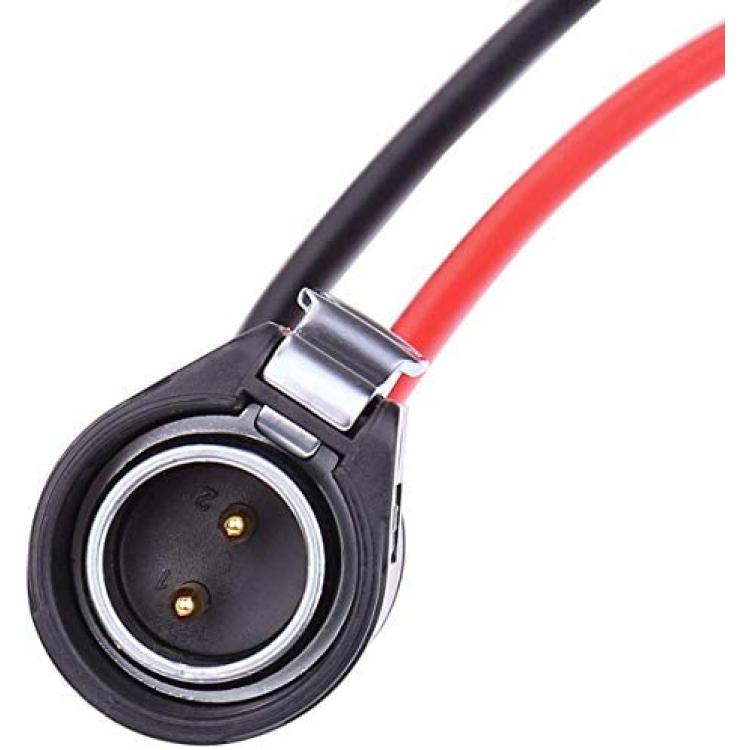

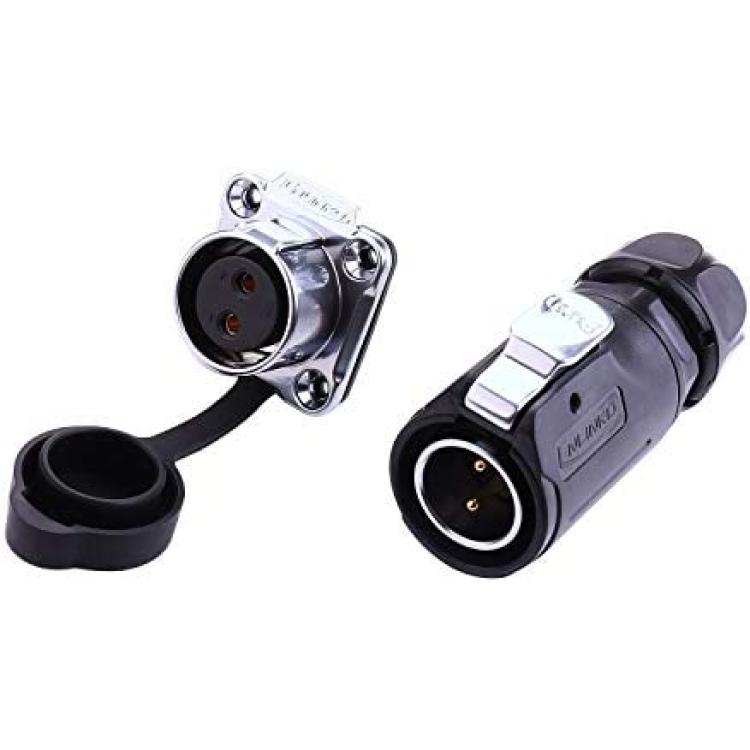

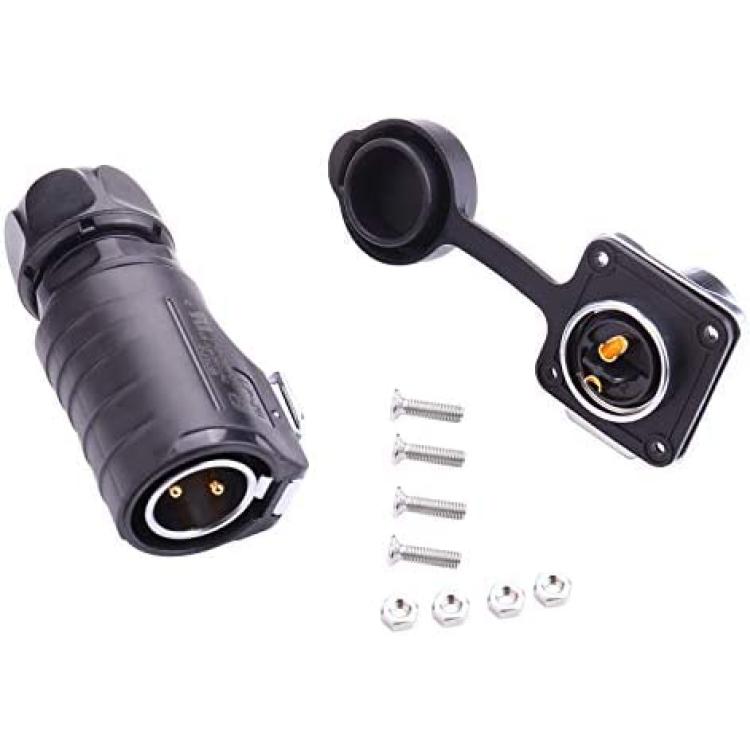

Trolling Motor Plug and Receptacle, Male Plug & Female Panel Mount Socket Waterproof IP67 2Pin Connector 12V 24V 36V 48V Plug for Trolling Motor Marine Boat RV Solar Panel
About this product
*2 pin power industrial circular connector is used for power and signal, perfectly fits "Furrion" solar port that many RVs come with (e.g. Grand Design, Forrest River).
*Rated current 20A, operation voltage 500VAC, outdoor, waterproof IP67.Gold-plated contacts, high strength, corrosion resistance, good electrical conductivity, effective response to current temperature changes.
*Protected against solids & liquids, provide a secure and reliable connection in the harsh environment.
*PBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformation.
*Widely used in data acquisition systems, inclinometer, computer automation measurement and control systems, mechnical equipment, audio/video, communications, automotive and other industries.
Description
Note: The terminals are small, it's a little difficult to solder 12 or 10 gauge cable, but it's easy for 14 gauge.
Product Parameter
Wire specification2.5M??5M?/14-12AWG
Line diameter range8?~12?
Diameter×number?2.7?4
Rated current(A)20A
Operation voltage(AC.V.RMS)500V
Contact resistance<1m?
Temperature rise20A per contact at 30??25A……40??30A……50?.
Withstand voltage (AC.V)1minute2500V
Insulation resistance?500M?
Protection levelIP65/IP67
Mating cycle?500 times
Working temperature-40??80?
Connection modeQuick plug connection
Wiring modeWelding / Crimping
Material
Insulation componentsHigh-performance engineering plastics
HardwareZinc alloy?Nickel Plating?
PINCopper alloy | gold plated
Waterproof circleSilica gel
Flame retardant gradeUL94-V0
