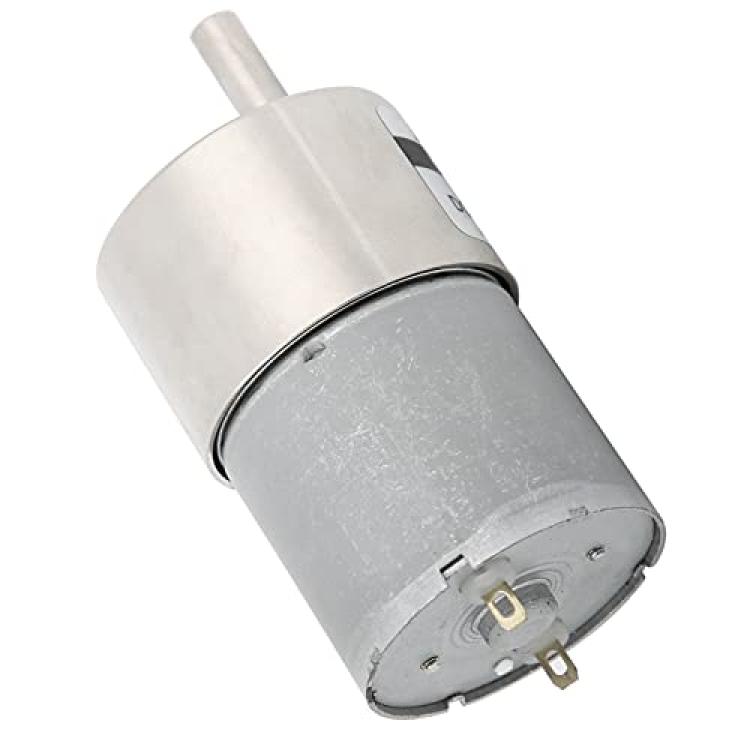

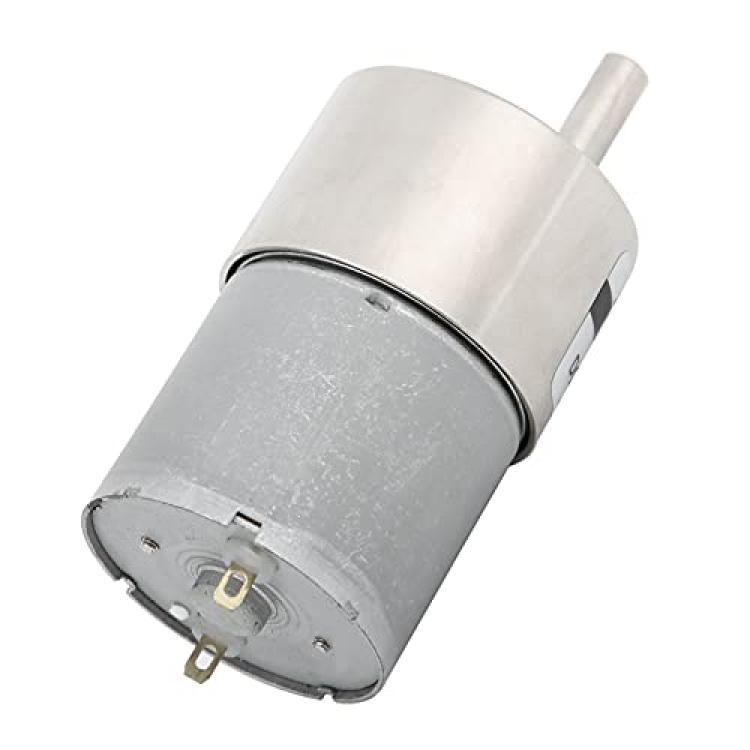

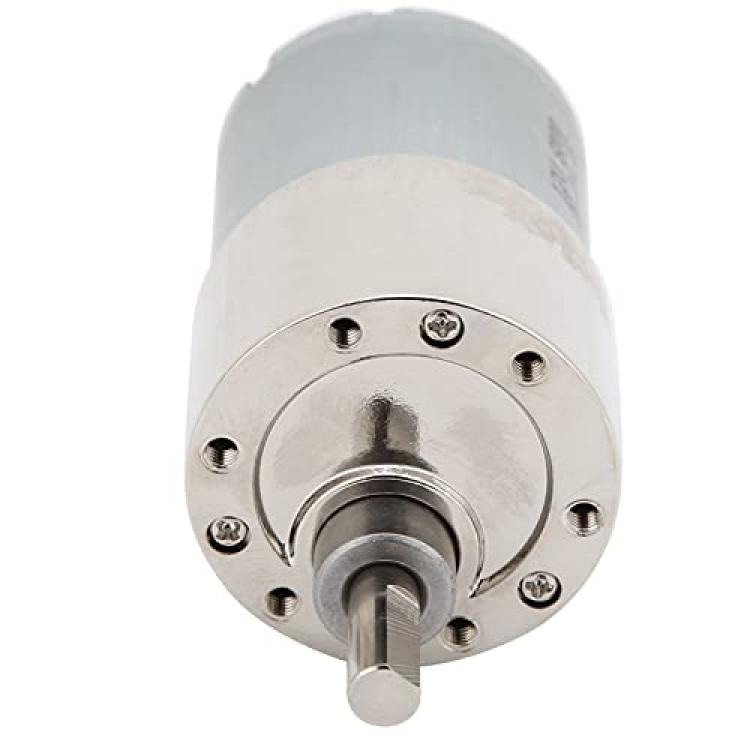

DC 12V High Torque Gear Motor, 37mm Diameter Gearbox & 5.5mm D Shaft Permanent Magnet Reduction Motor, Reversible & Speed Adjustable(100rpm 5kg/cm)
Availability: Pre-Order, Inquiry Price
About this product
*High quality all metal gears can make sure the durability and stability of the product
*The motor has small size and large torsion, which can provide stable performance during operation
*Adopt pure copper coil, the deceleration resistance and conductivity are strengthened, so that the motor torsion is increased
*With overload current protection function, the motor is not easy to damage and long service life
*The lubricating oil applied to the motor gear is high temperature grease, which has the characteristics of low friction, noise reduction, slow temperature rise, etc., and improves the service life of the gear
Description

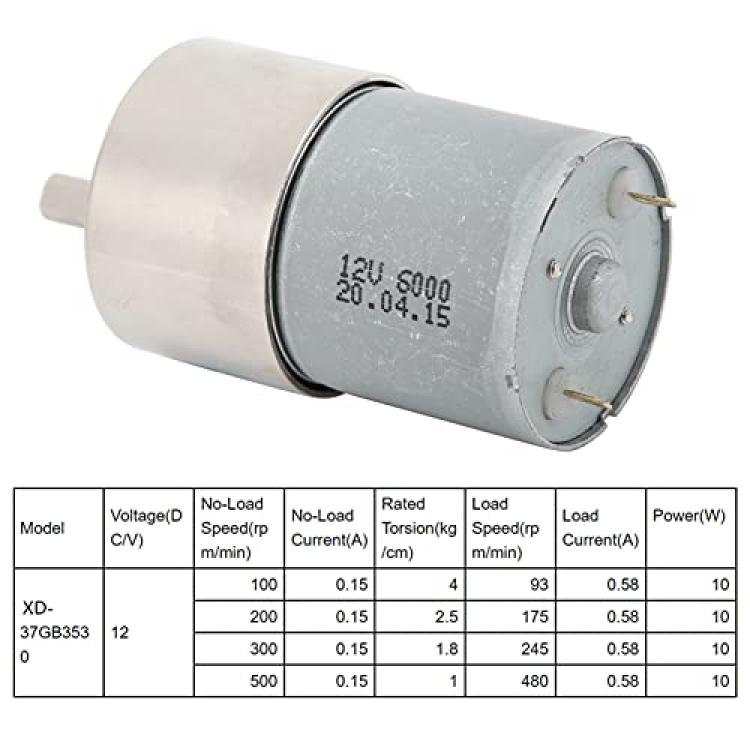

Specification:
Item Type: DC Reduction Motor

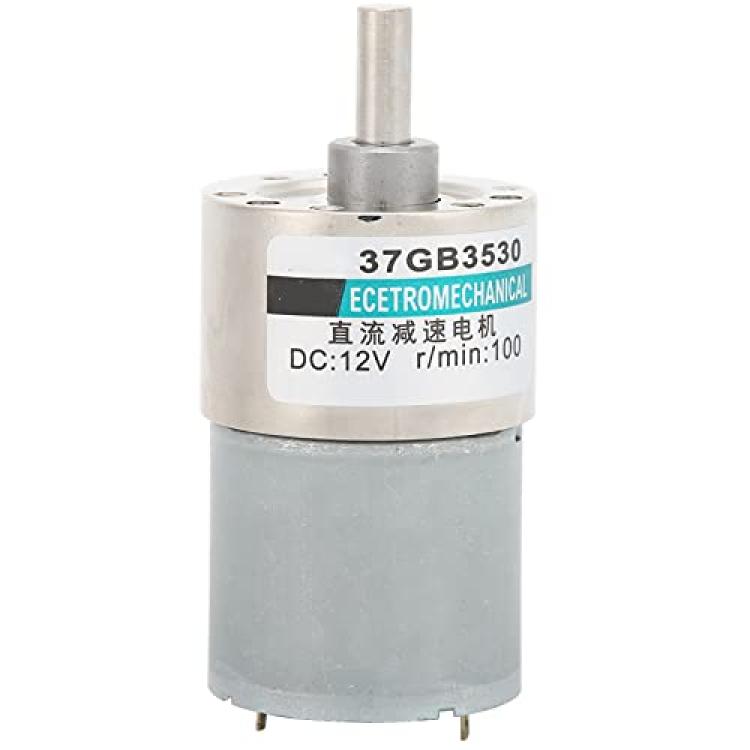

Model: XD-37GB3530
Material: Copper

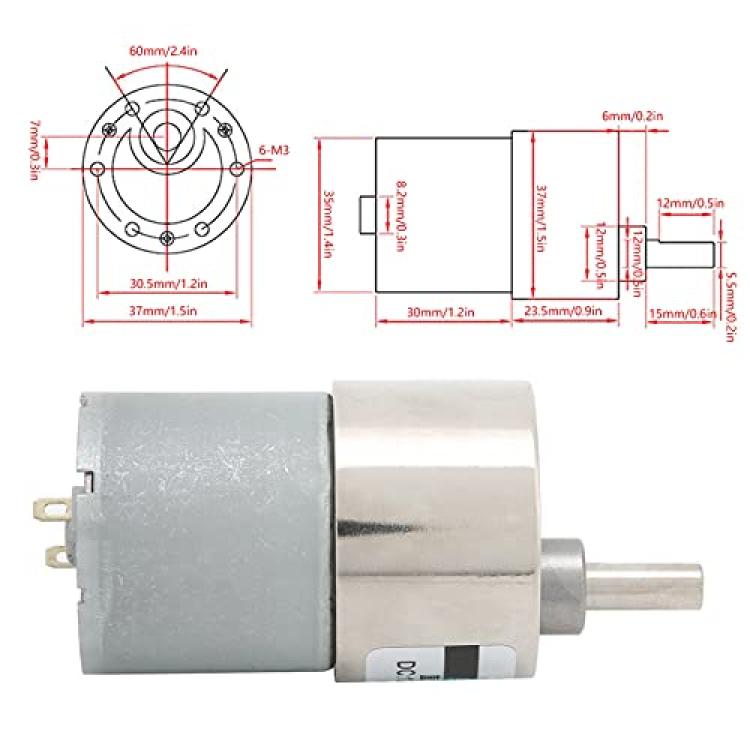

Output Shaft Size: Approx. 5.5 x 15mm / 0.2 x 0.6in
Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20M?
Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V.
Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil below 70?.
Insulation Class: Class B(130?)
Operating Environment Temperature: Motor: -10~+40? (no icing)
Use Environment Humidity: 85% or less (no condensation)
CW/CCW: Yes
Speed Adjusted: Yes
Package List:
1 x MotorÂ
