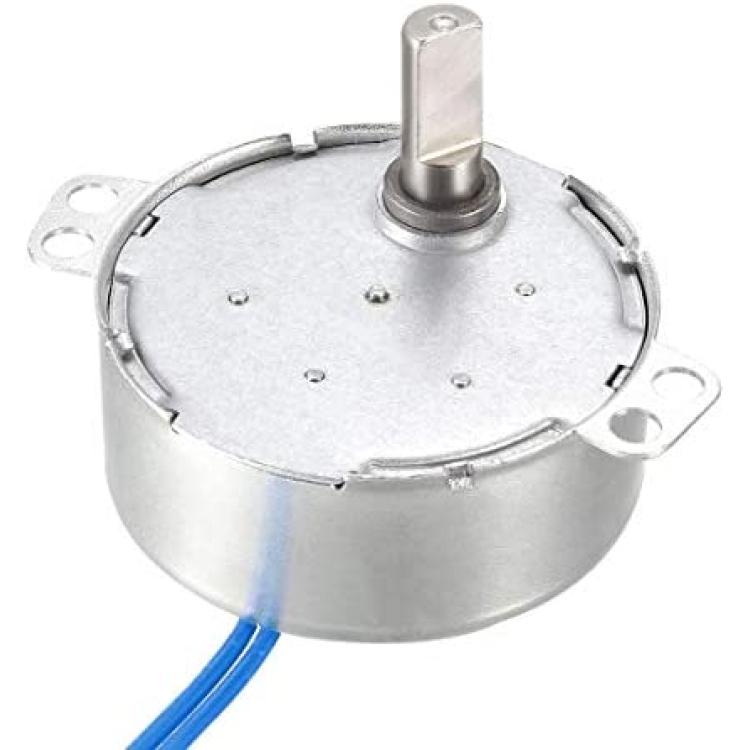

uxcell Electric Motor Turntable Synchronous Motor 100-127 VAC 2.5-3RPM 50/60 Hz 4W CW Direction for Hand-Made, Model or Guide Motor
About this product
*Package includes: 1pcs silver tone turntable synchron motor.
*Detailed parameters: the power is 4 watts; Frequency is 50-60 Hz; Manner of working is CW; AC voltage range is 100-127V; Rotating speed is 2.5-3 R per minute.
*Practical to use: the synchron motor has small power consumption and large torque which is convenient to use; Low noise and easy to install.

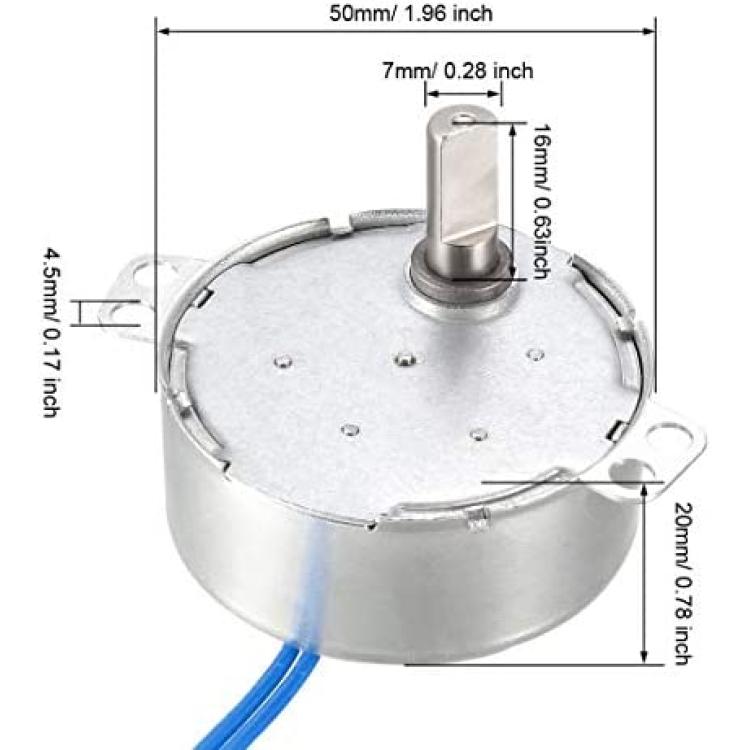

*Size: the turntable synchron motor is 1.96 inch/ 50mm in diameter, 0.78 inch/ 20min height; The blue cable is 0.08 inch/ 2 mm in diameter, 16.14 inch/ 410mm in length.
*Applications: the synchronous motors are good tool for hand-made, DIY project; Suitable for home appliance, heater machine, electric fan, Christmas tree, air conditioner, massagers, dynamic visualizer, arts and crafts lighting, popcorn machine, etc.
Description
Description:
1. motor is a kind of common AC motor.
2. Exciting winding use the DC excitation current, the establishment of magnetic field.
3. The armature winding of three-phase symmetrical action use as the power winding.
4. The armature winding and the main magnetic field is doing the cutting movement.
Widely Use
It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.

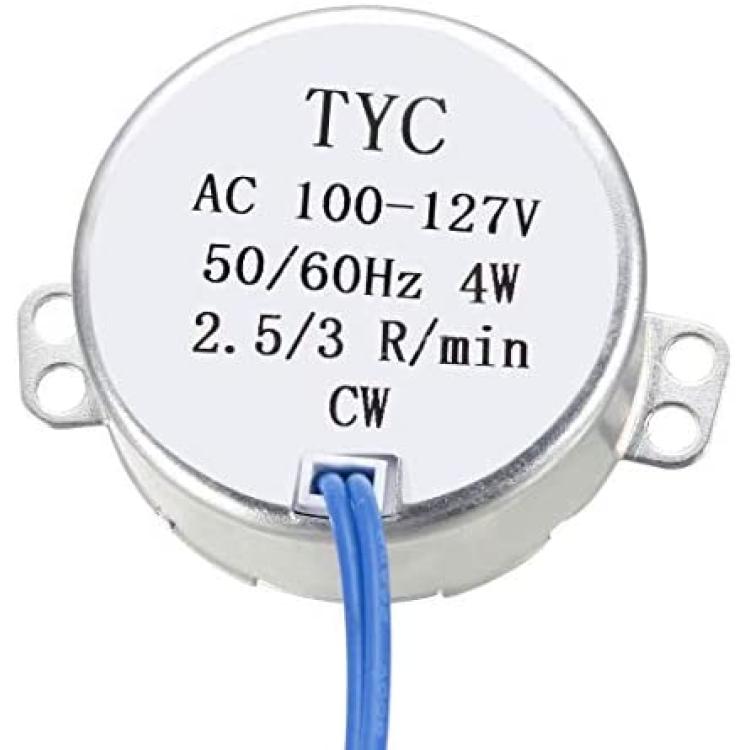

Specification:
Voltage: AC 100-127V
Frequency: 50-60Hz
Speed: 2.5-3RPM/Min
Color: Silver Tone
Rated Power: 4W
Manner of Working: CW
Gear Material: plastic
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 16mm/ 0.63inch
Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Wire Length: 410mm/ 16.14 inch
Package: 1 x Motor
