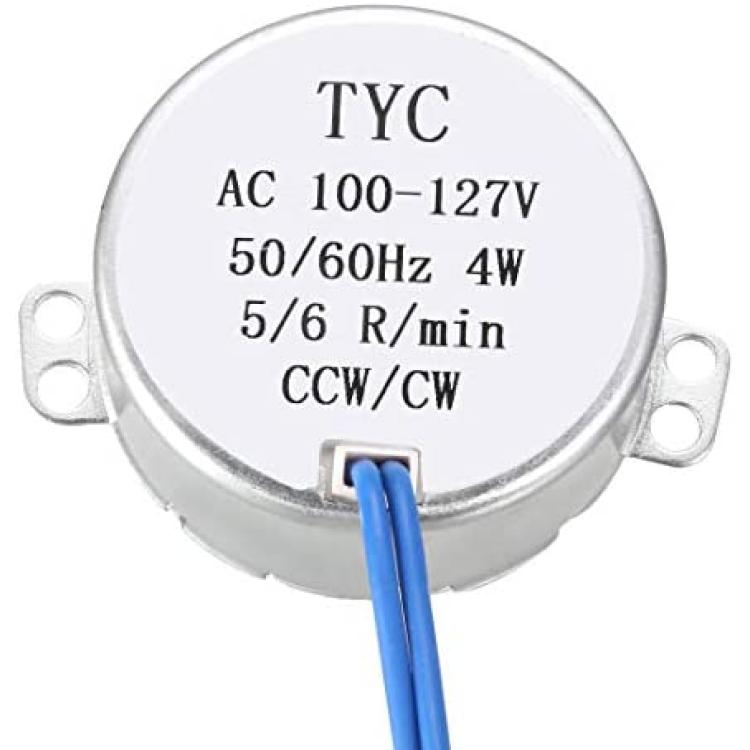

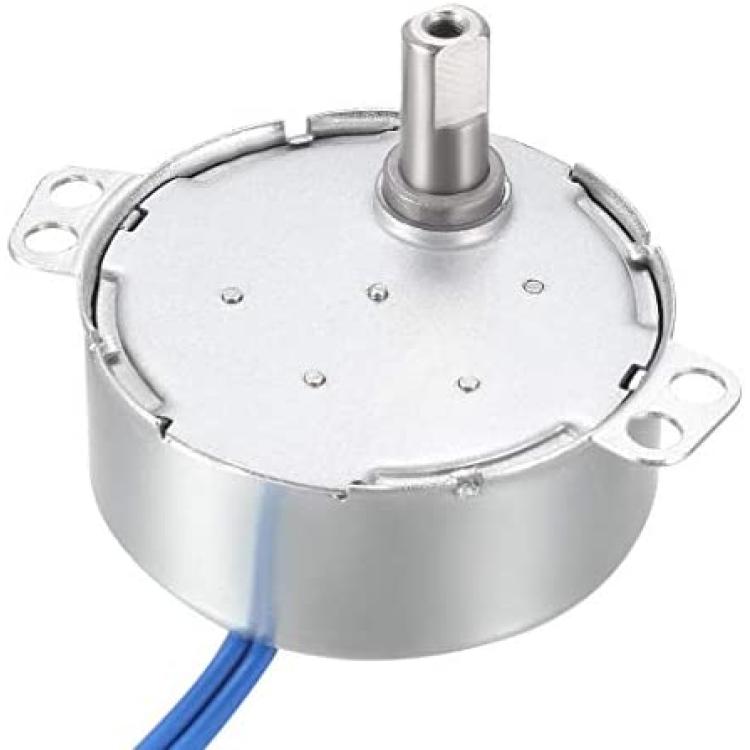

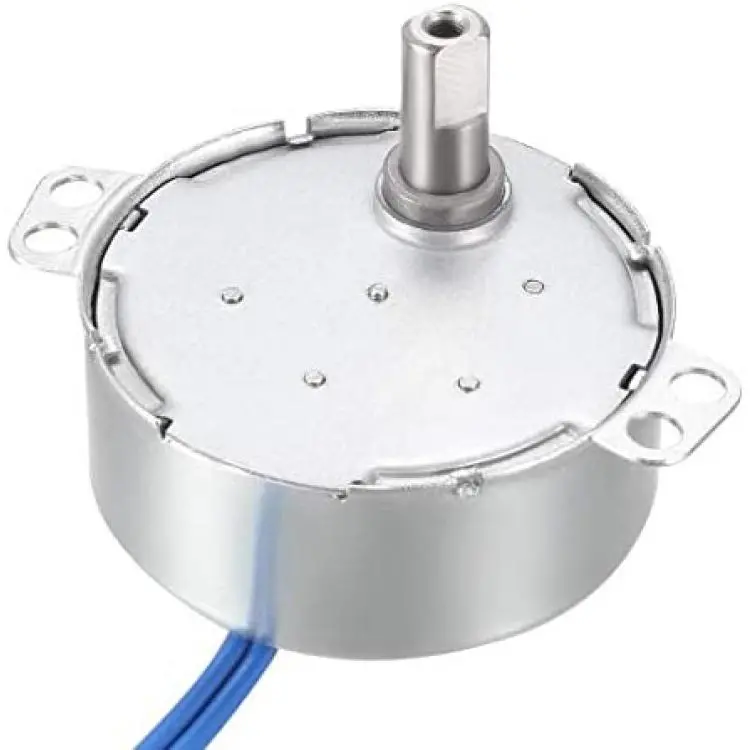

uxcell Electric Synchronous Synchron Motor Turntable Motor 100-127 VAC 50-60Hz CCW/CW 4W 5-6RPM

Description
It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.

Information About Synchronous Motors
Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.
A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.

Specification
Rated Voltage: AC100-127V
Power: 4W
Manner of Working: CCW/CW
Rated Frequency: 50-60Hz
Rated Speed: 5-6RPM
Torque: 4kgf.cm

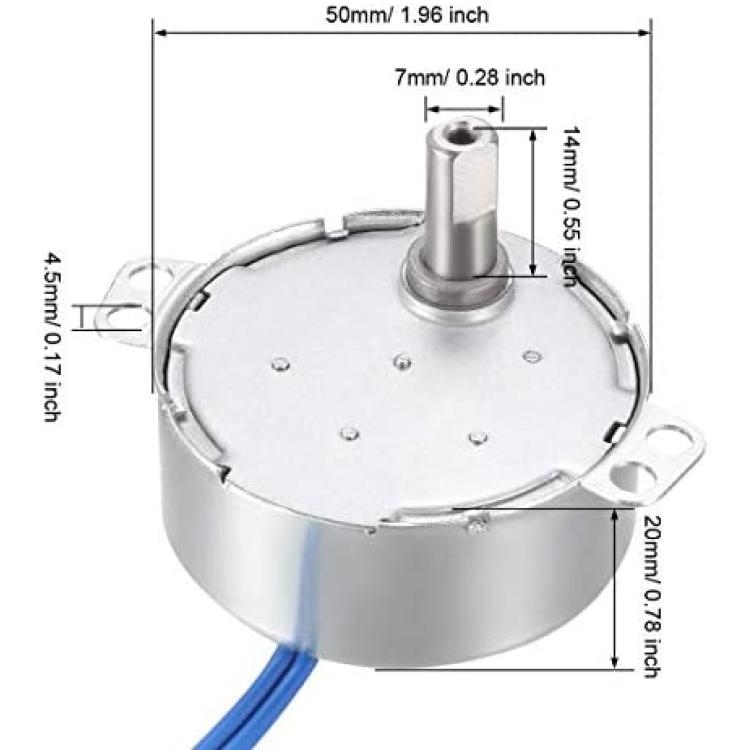

Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Total Length: 65mm/ 2.55 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 14mm/ 0.55 inch
Internal Thread Size: M3
Wire Length: 40cm/ 15.7 inch
Package: 1 x Electric Synchronous Motor
