Jieoto E-Bike Battery Pack 36V 48V 52V 60V 20AH Lithium-ion Electric Bicycles Battery with 2A Charger and BMS Fit for 250W 500W 750W 1000W 1200W 1500W 1800W Motor
Share Facebook Twitter Pinterest Email

Jieoto E-Bike Battery Pack 36V 48V 52V 60V 20AH Lithium-ion Electric Bicycles Battery with 2A Charger and BMS Fit for 250W 500W 750W 1000W 1200W 1500W 1800W Motor

Brand: Jieoto
Product Code: MM19027
Availability: Pre-Order, Inquiry Price
US$0.00
- +

Description

Scope of Application: Suitable for 200W-1800W electric bicycles, E-bike, electric scooters, electric motorcycles, mopeds, electric wheelchairs, tricycles, electric vehicles, electric ATVs, solar energy storage, electric street bikes, etc.

Electric Bike Battery Pack Parameters:
Nominal Voltage: 36V 48V 52V 60V
Cell model: 3.7V 2600mAh cell
Nominal capacity: 20AH?20000mAh?

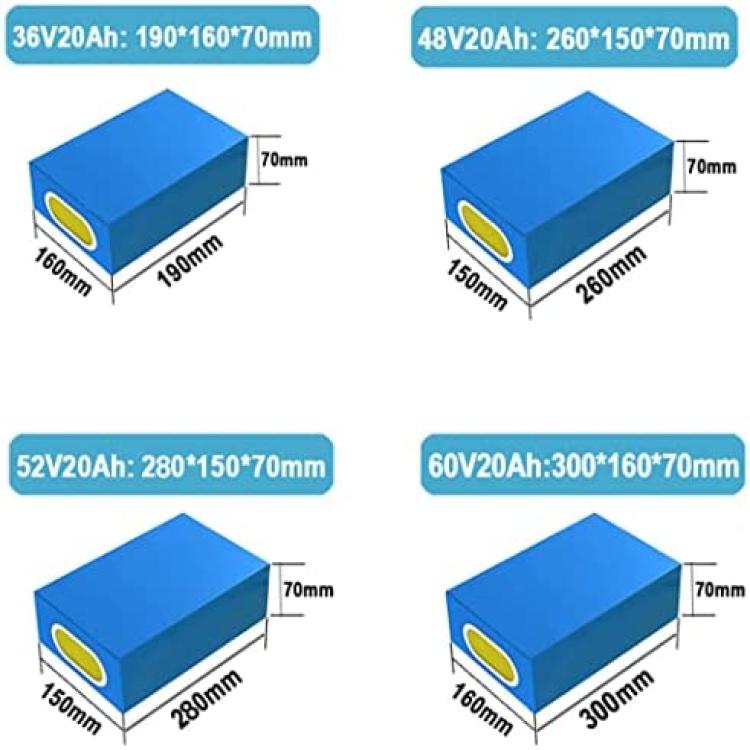

Size: Reference picture 2?The size is measured manually, the product has a ±5mm error, please refer to the received product size.?
Motor power: Suitable for continuous power 200W to 1800W e-bicycle motors
Weight: about 4.2kg-6.5kg
Maximum constant discharge current: 30Amp(BMS)
Maximum peak discharge current: 60Amp (BMS value*2)
BMS: 30Amp
Cycle life: more than 1000 times
Charger: 2A charger
Charging time: about 6-10 hours

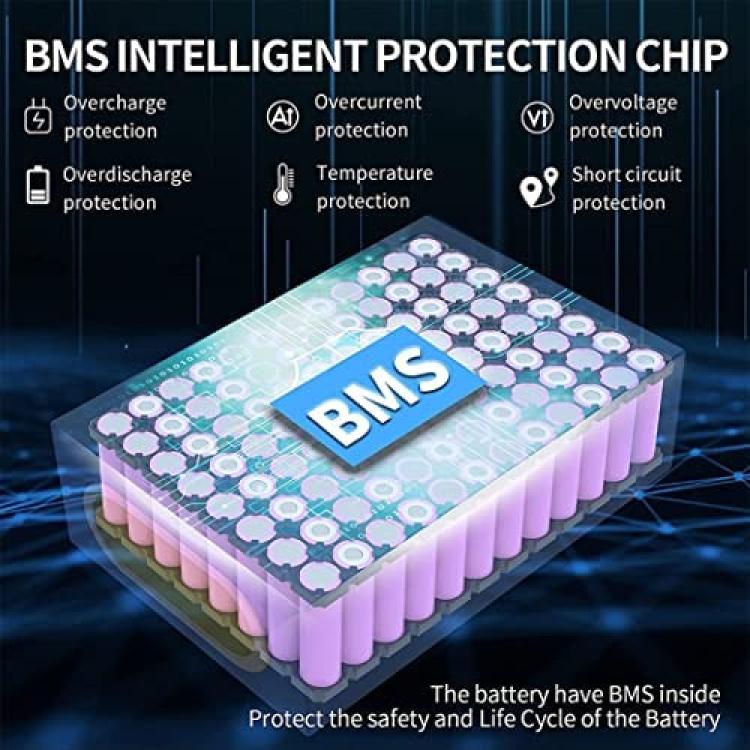

Protection function: overcharge, over-discharge, overcurrent, equalization, temperature control, etc.

List:

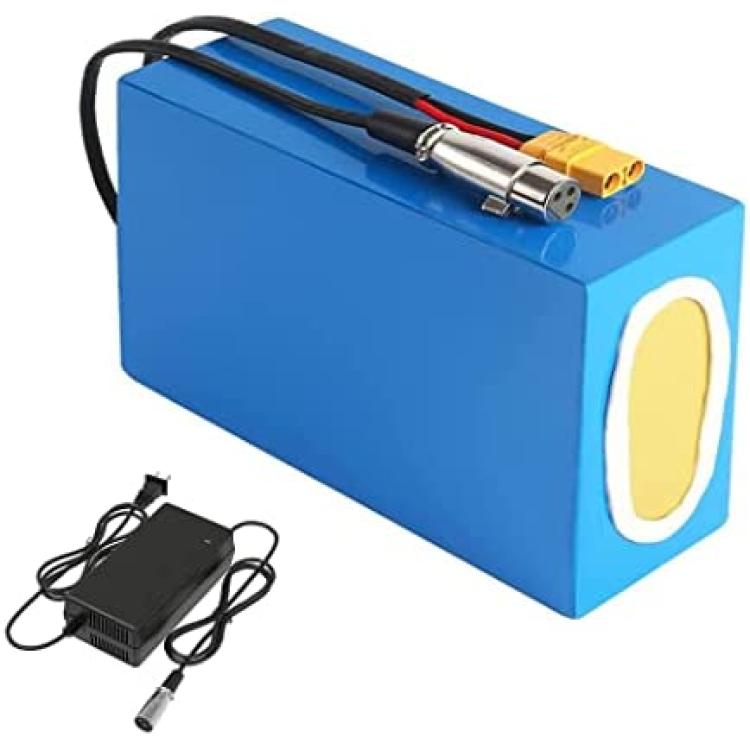

1* Battery Pack
1* Charger
