Jieoto 52V E-Bike Battery 14S8P 20Ah Li-Ion Electric Bike Battery Pack Rechargeable Lithium Battery with 40A BMS and 3A Charger Fit for 1200W 1000W 750W 500W 250W Electric Bicycles Motor
Description
Product Parameters:
Voltage: 52V lithium-ion battery pack
Nominal capacity: 20AH?20000mAh?
Cell model: 3.7V 2500mAh Cell
Combination: 14S 8P
Size: 280* 150* 70mm/ 11* 5.9* 2.75inch?with bracket?
Total Weight: about 7.5kg
Working voltage: 52V
Charging cut-off voltage: 58.8V
Maximum constant discharge current: 40Amp(BMS)
Maximum peak discharge current: 80Amp (BMS value*2)
Motor power: Suitable for continuous power 250W to 1200W bicycle motors
Material: blue waterproof PVC

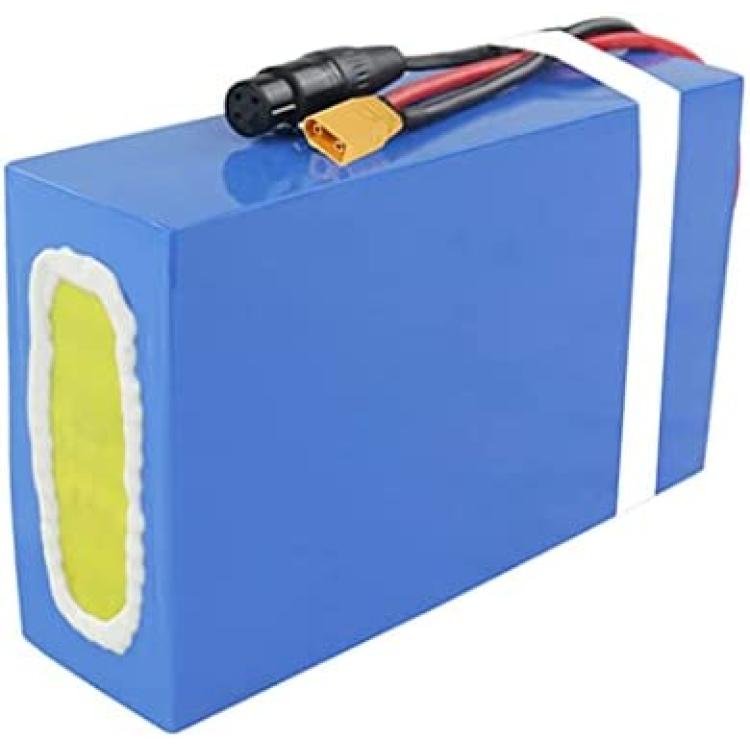

Discharge Connector: XT60 Plug
BMS: Built-in 40Amp protection board
Charger: with 58.8V 3A fast charger
Charging time: about 5-7 hours
Cycle life: more than 1000 times

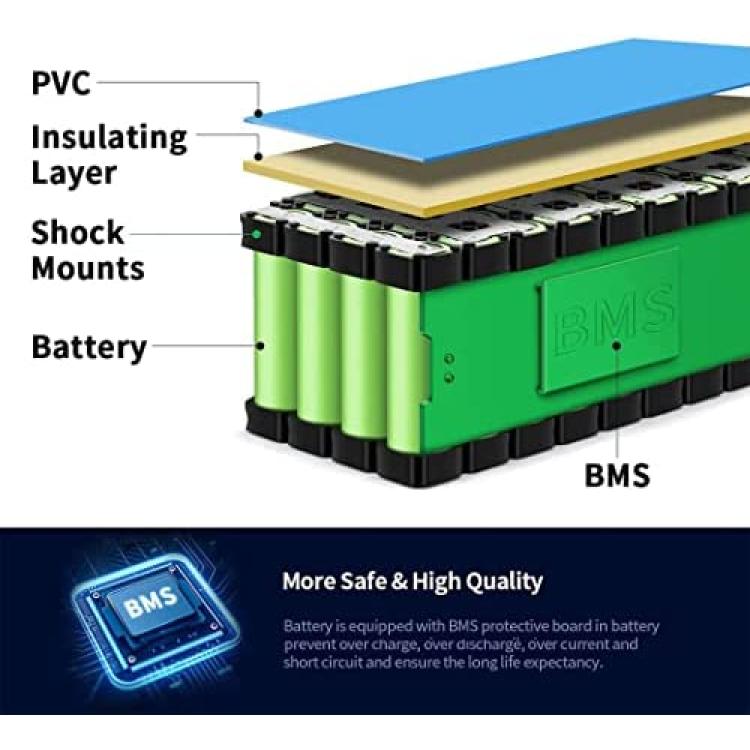

Protection Function: BMS has functions such as overcharge, over-discharge, overcurrent, balance, and temperature control.
List:
1* 52V 20Ah Lithium-ion Battery Pack?Built-in 40A BMS?
1* 58.8V 3A US Standard Charger
Note: The size is measured manually, there may be an error of ± 3mm, please refer to the actual product size received.
