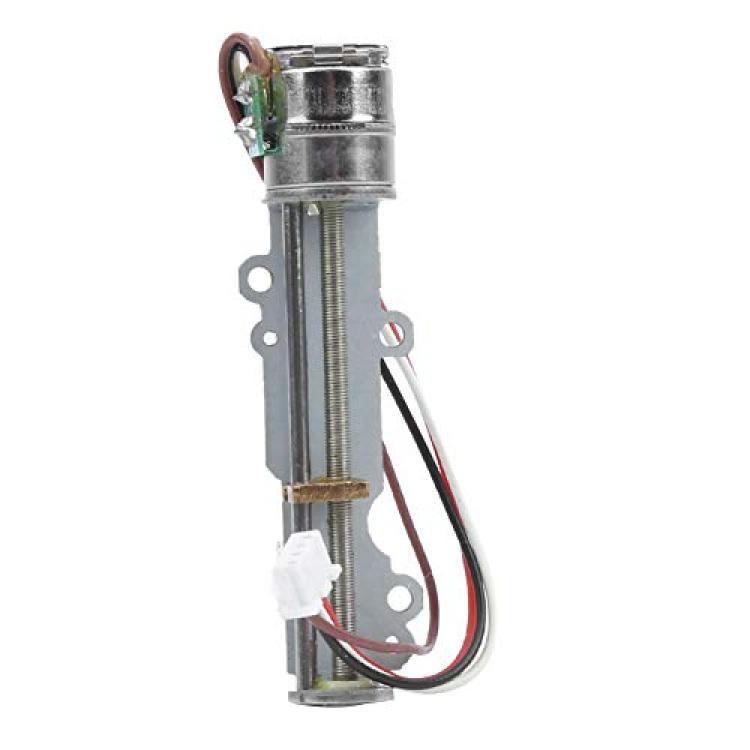

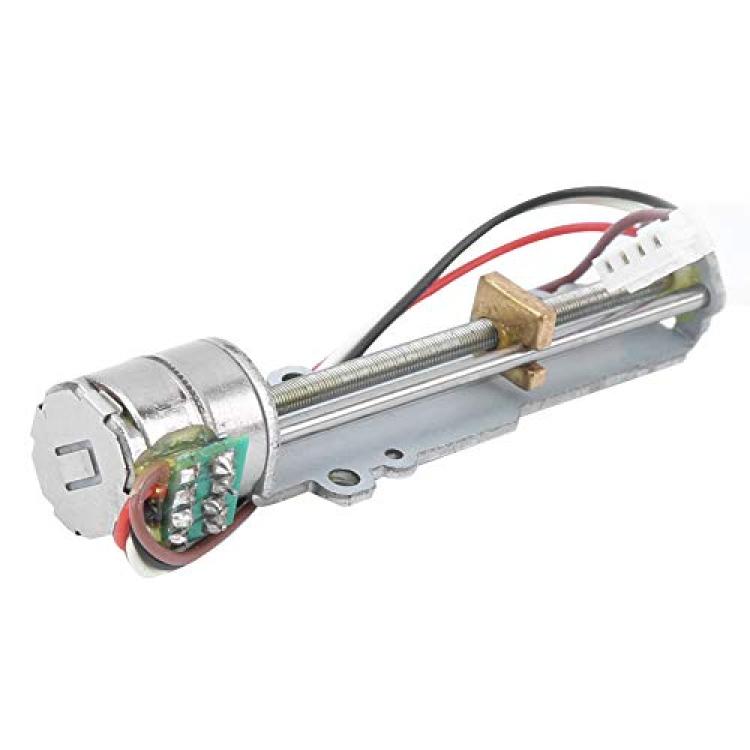

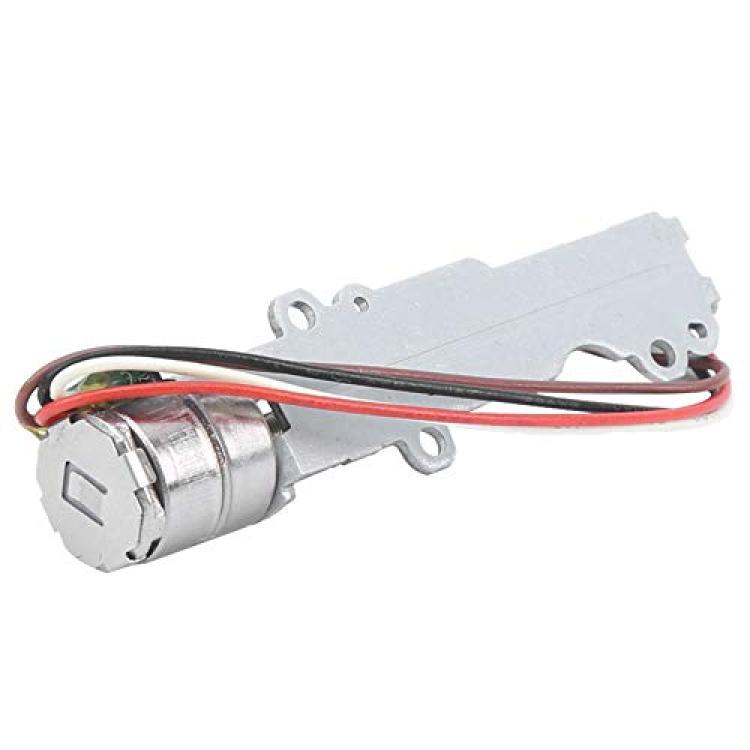

Fafeicy Micro Stepper Motor, Forward Reverse Small Sliding Movement Electric Motors with Screw Rod Nut Slider,2-Phase 4-Wire System
Availability: Pre-Order, Inquiry Price
About this product
*Screw Rod Length: Approx. 36mm/1.4in.Slider Stroke: Approx. 34mm/1.3in.Motor Diameter: Approx. 10mm/0.39in.Screw Rod Diameter: Approx. 2mm/0.08in.Shaft Diameter: Approx. 1.5mm/0.06in.Step Angle: 18°.Phase Resistance: 15.5 Ohms.

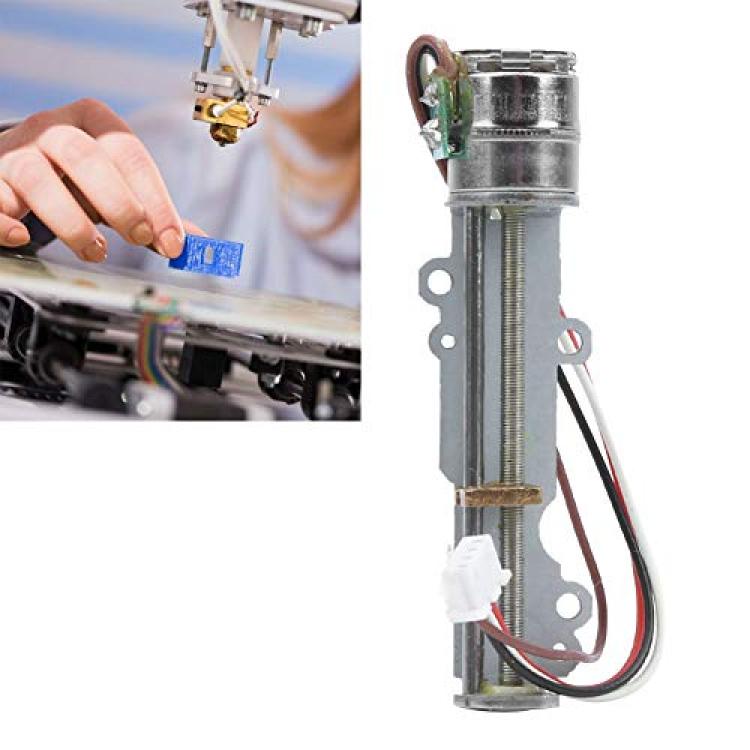

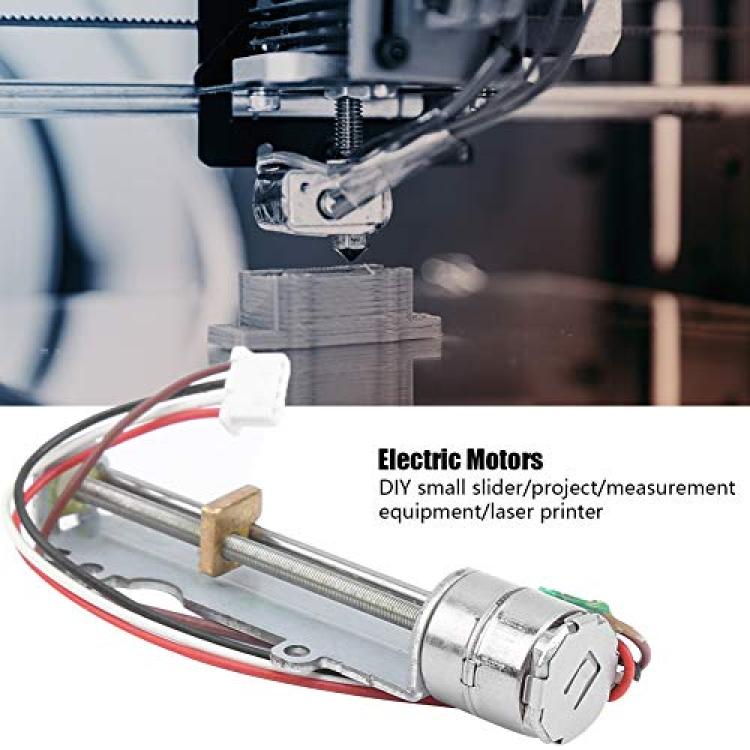

*Micro stepping motors are suitable for DIY small slider projects, measuring equipment, printers, etc. The driving voltage of the stepper motor is 5V/300mA (the higher the voltage, the greater the force and the greater the heat).
*The micro stepping motor has a planetary gear box, and the planetary gear reducer adopts an all-metal structure.
*The bracket of the stepper motor is basically made of metal, which can drive a precise diagonal to move the metal slider up and down.
*The micro stepping motor adopts advanced technology and exquisite workmanship. It is a necessary part of linear motion.
Description
Specification:
Conditon: 100% Brand New
Item Type: Mini Stepper Motor
Material: Stainless Steel
Color: As Pictures Shown
Motor Type: 2-Phase 4-Wire System
Drive Voltage: 5V/300mA (Higher Voltage, Greater Force and Heat)
Screw Rod Length: Approx. 36mm/1.4in
Slider Stroke: Approx. 34mm/1.3in
Motor Diameter: Approx. 10mm/0.39in
Screw Rod Diameter: Approx. 2mm/0.08in
Shaft Diameter: Approx. 1.5mm/0.06in
Step Angle: 18°
Phase Resistance: 15.5 Ohms

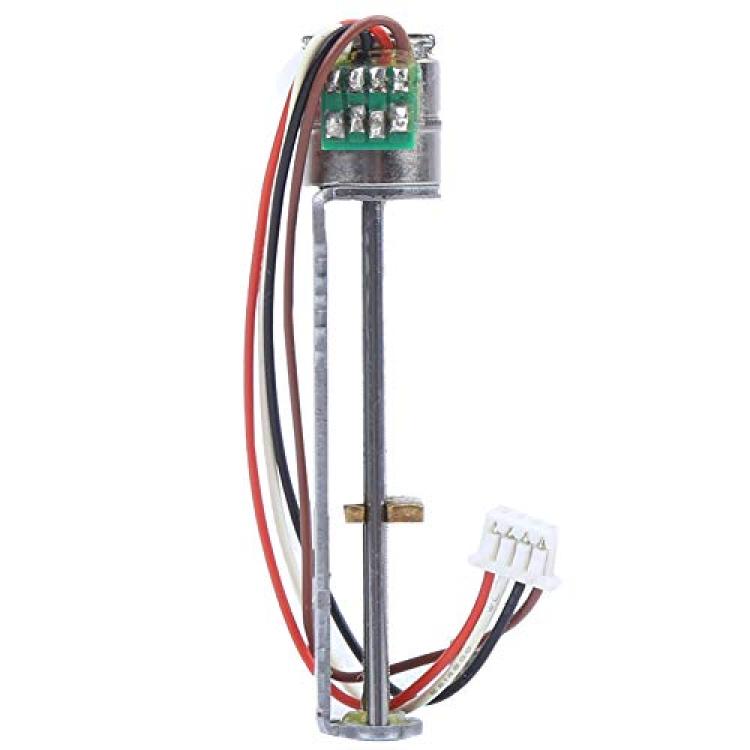

Red A+White A-Black B+Brown B-
Package List:
1 x Mini Stepper Motor W/Screw Rod Nut Slider
Note:
It's a stepper motor, will not turn when it is directly connected to the electricity, and a stepper motor drive board and control board(not included) are required.
