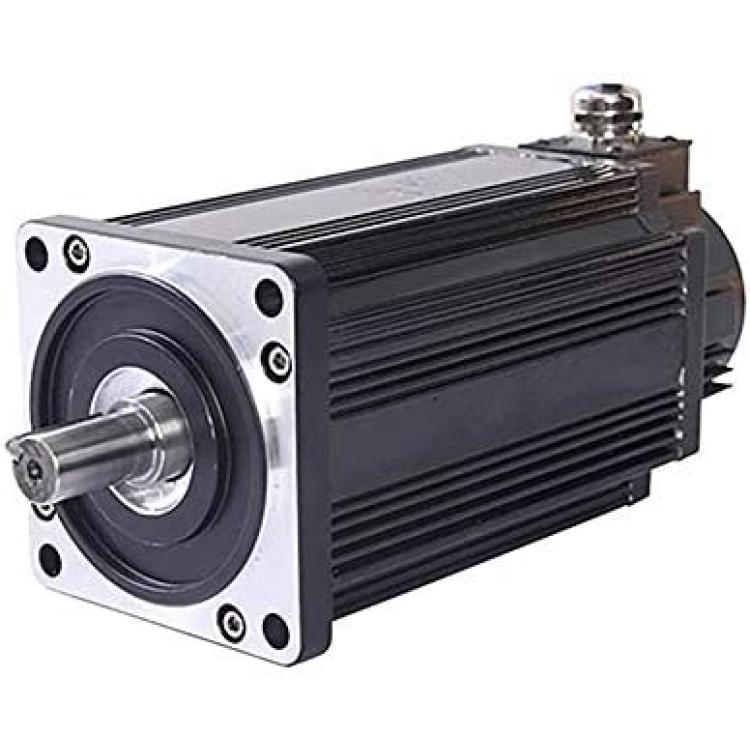

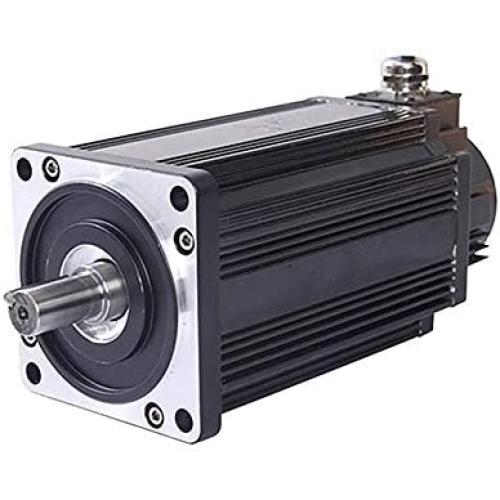

ATO 2000W/3000W 48V DC Servo Motor 7.6Nm/ 19Nm, High Torque Universal Electric Motor DC motor, with Encoder (3000W With brake [+$154])
About this product
*IP55 protection grade and F class insulation structure,Low noise, low vibration,
*Optimized winding end structure, minimized copper loss and iron loss, small size, light weight, low temperature rise and high efficiency (85%)
*Super coercivity, using NdFe35 permanent magnet material, strong anti-demagnetization ability, stable motor performance
*High torque, fast dynamic response, wide speed range, strong overload capacity (4 times)
*Note: Our ATO DC Servo Motor do not include driver
Description
2000W/3000W brushless servo motor works at 48V DCvoltage, equiped with a 2500PPR incremental encoder, IP55 forprotection,through CE, ISO certification.
 It is widely used infactory automation, embroidery machines, printing machinery, CNC machine, woodcarving and other fields.
Â
Specifications :
RatedVoltage 48V
IncrementalEncoder Line       2500PPR
LineResistance       0.08?
BrakeApparatus Voltage        24V DC, brakerelease when powered
MotorLead Length 1 meter
Efficiency 85%
ProtectionGrade    IP55
InsulationClass       Class F
Certification    CE, ISO
Warranty        12 months
WorkingTemperature     -25?~+55?
Altitude   Under 1000m
Humidity <90%RH,(no dewing)
Â

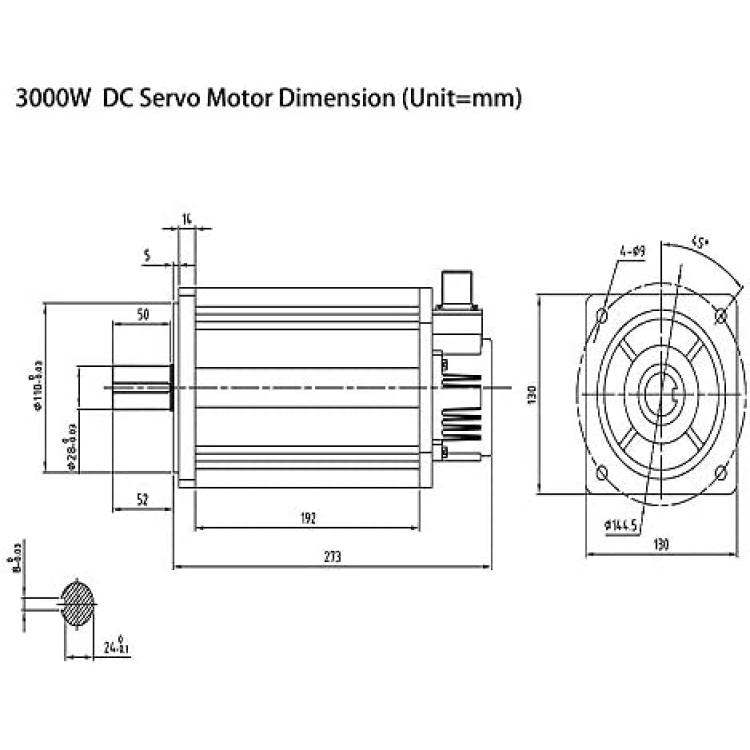

*For other specific parameters of 2000W/3000W DC servomotor, please see picture details.
