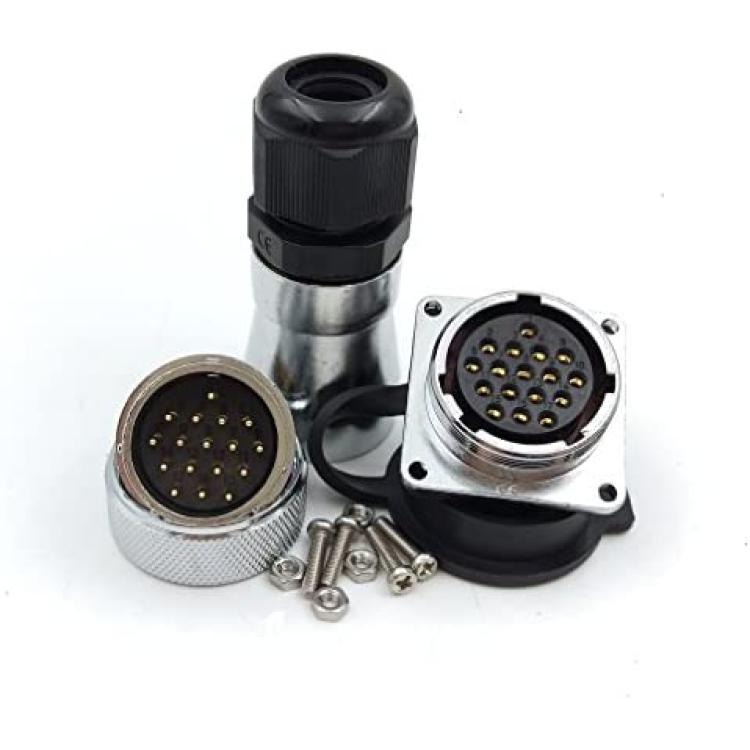

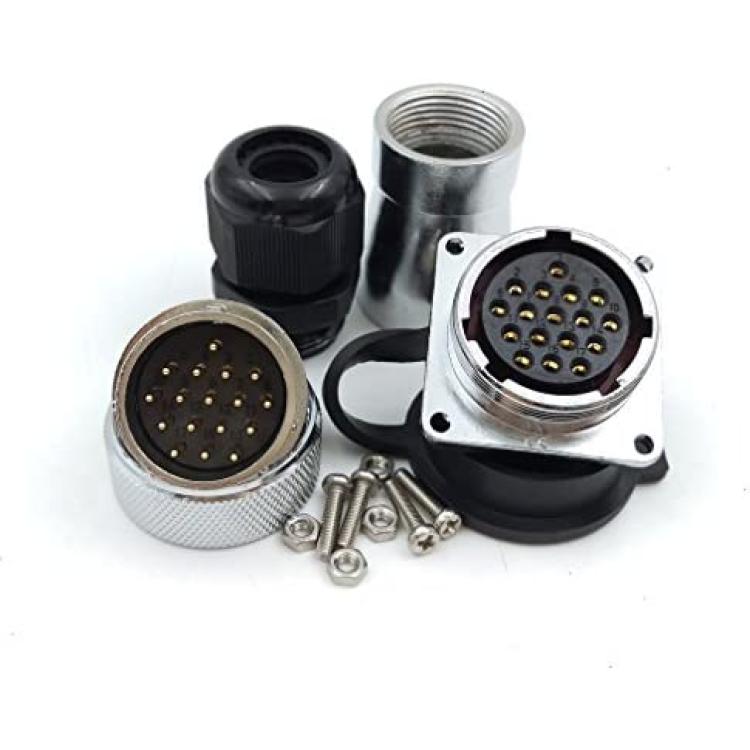

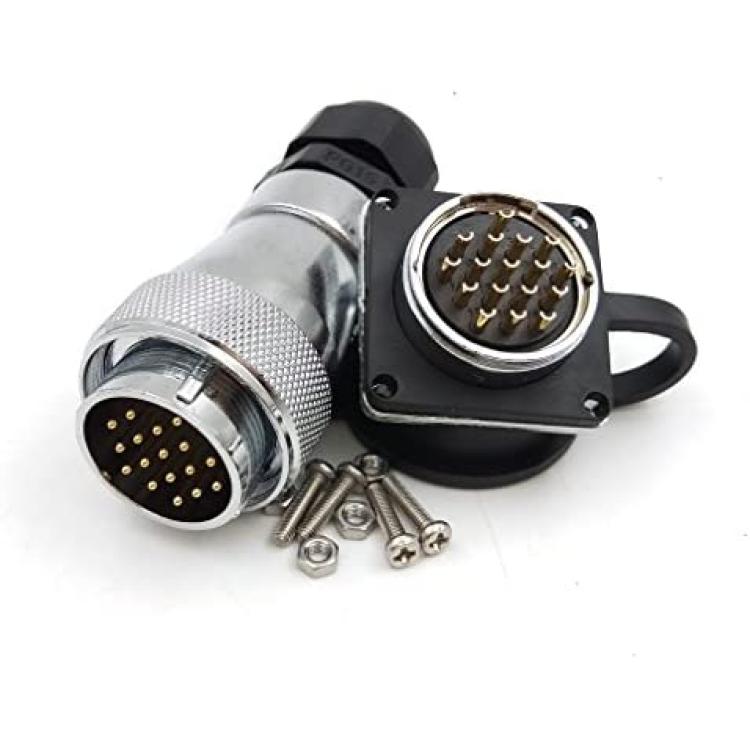

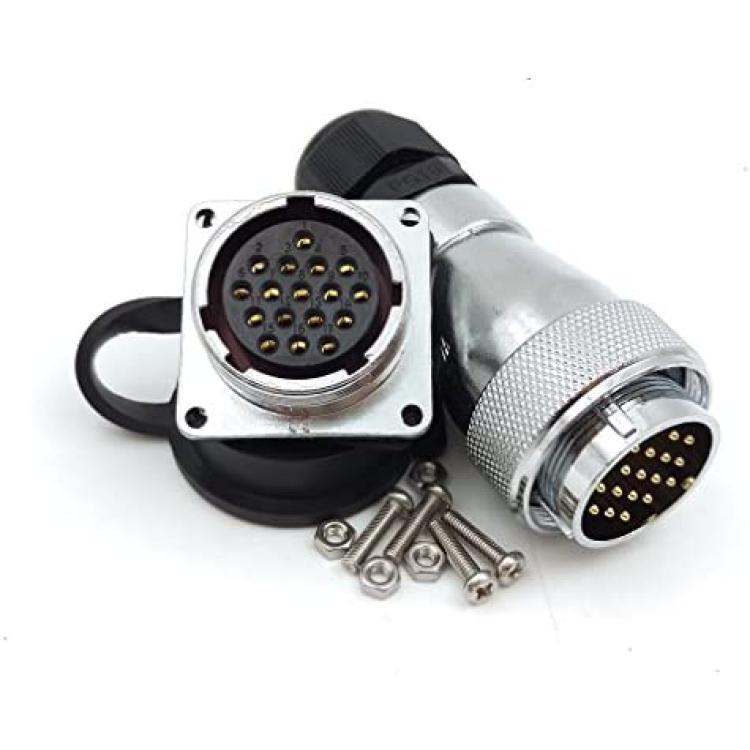

WF28 Matel Connector φ28mm Industrial Connector Industrial Device Power Plug 5PIN 7PIN 10PIN 12PIN 16PIN 17PIN 20PIN 24PIN 26PIN Electrical Motor Power Charger Plug Aviation Connector (17PIN, 1SET)
About this product
*WF28 17pin high voltage heavy industrial power connector, φ28mm panel cut
*Contact: φ1.5mm*17(Gold plated copper), 10A / 500V, Contact resistance: 2.5 Milliohm
*Wire:
*Pin number available: 5/7/10/12/16/17/20/24/26pin, Plug: IP20, socket: IP67
*Professional and trusted power connector wholesale and retail supplier.
Description
Product name: WF28 17pin heavy industrial metal power connector
Contact: ?1.5mm*17(Gold plated copper)
Rated current: 10A
Working voltage: 500V
Test voltage: 1500V
Contact resistance: 2.5m?
Insulation resistance: 2000m?
Wire: <1.3mm = AWG16-20
Cable: 10-14mm
IP rating: Plug: IP20, socket: IP67
Mating cycle: 500times
Temperature range: -25~+65°C
Shell material: zinc alloy
Pin number availalble:5/7/10/12/16/17/20/24/26 pin
Connector whole size: 4.1*1.3inch / 104*33.8mm
