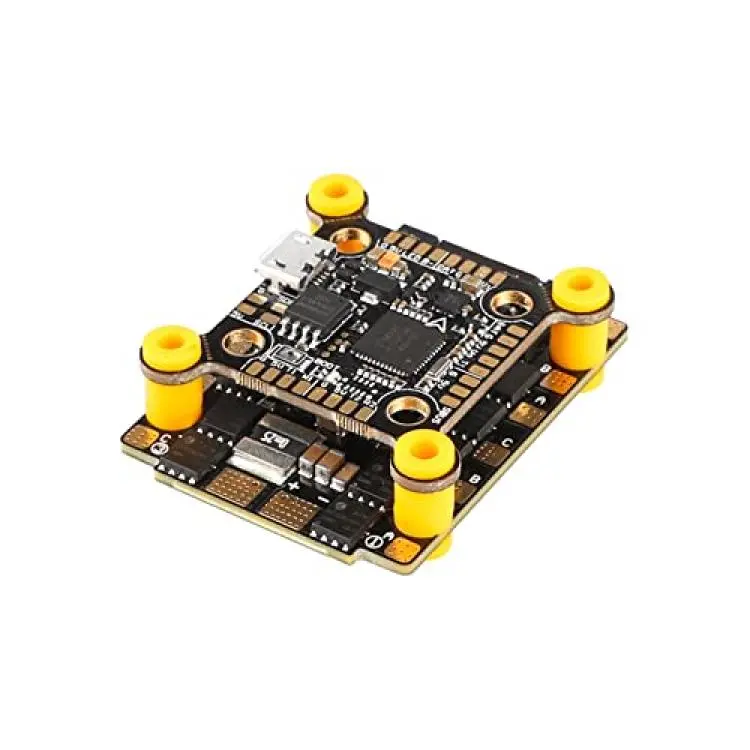

T-Motor Velox F411 Lite FC+V45A LITE Stack for FPV RC Drone Freestyle Racing Quadcopter

T-Motor VELOX F411 Lite FC+V45A LITE STACK For FPV RC Drone Freestyle Racing Quadcopter

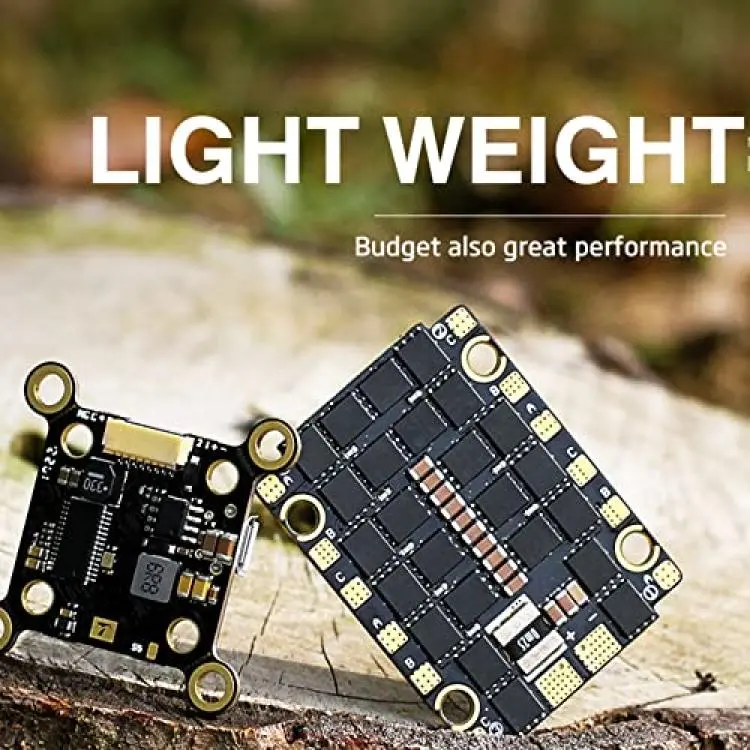

TO SATISFY THE LIGHTWEIGHT---F411 FC, equipped with 5V 2A BEC, AT 7456E OSD chip, 8M black box



Double installation method---The FC support 20x20mm and 30.5x30.5mm installation holes(30.5x30.5mm installation holes can be removed to 20x20mm as required)



Three communication ports---Meet conventional equipment-receiver/analog vtx/GPS(Two hard serial ports, one can open the soft serial port)

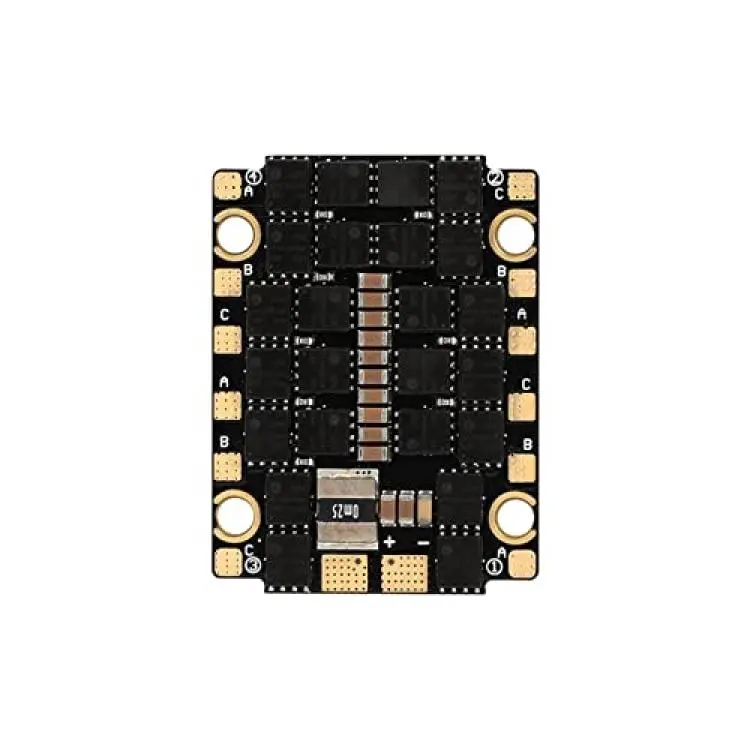

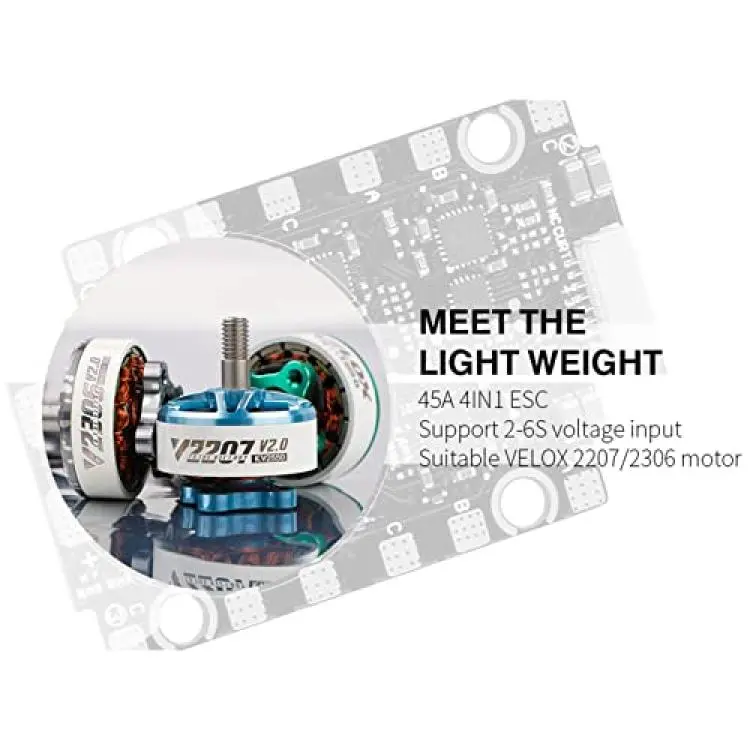

MEET THE LIGHT WEIGHT--- 45A 4IN1 ESC, Support 2-6s voltage input, suitable velox 2207/2306 motor



V45A LITE has double-sided large-pitch pads, which is good for soldering.



Accessories included: ESC*1, FC*1, Connection wire*1, XT60 power cable*1, Sticker*2, Silicone shock-absorbing washer*8, Capacitor*1, QC PASS card*1





SPECIFICATION:

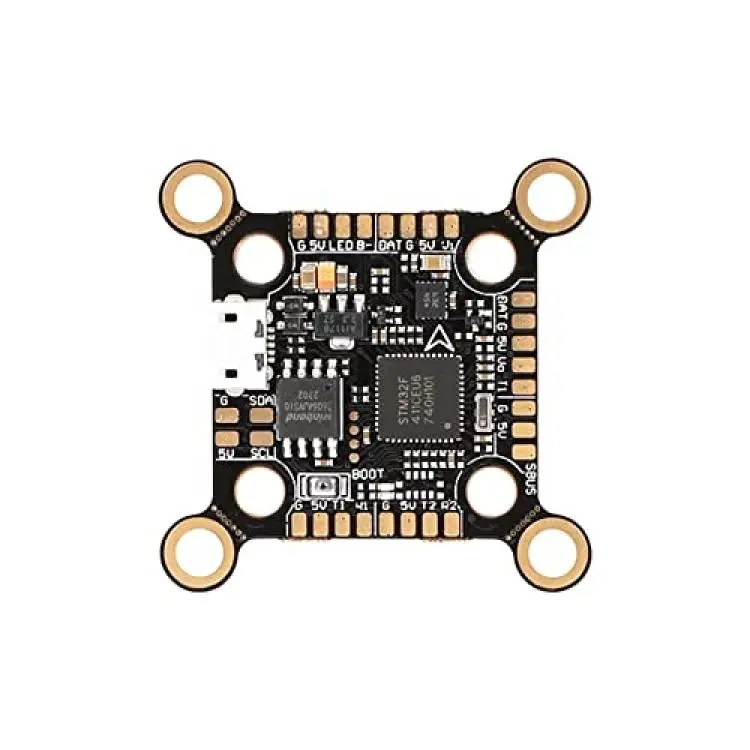

F411:

Main control: STM32F411

Gyroscope: BM270

Black Box: 8MB

OSD Chip: AT7456

BEC: 5V 2A

Weight: 5.3g

Mounting Hole: 30.5mm, 20mm

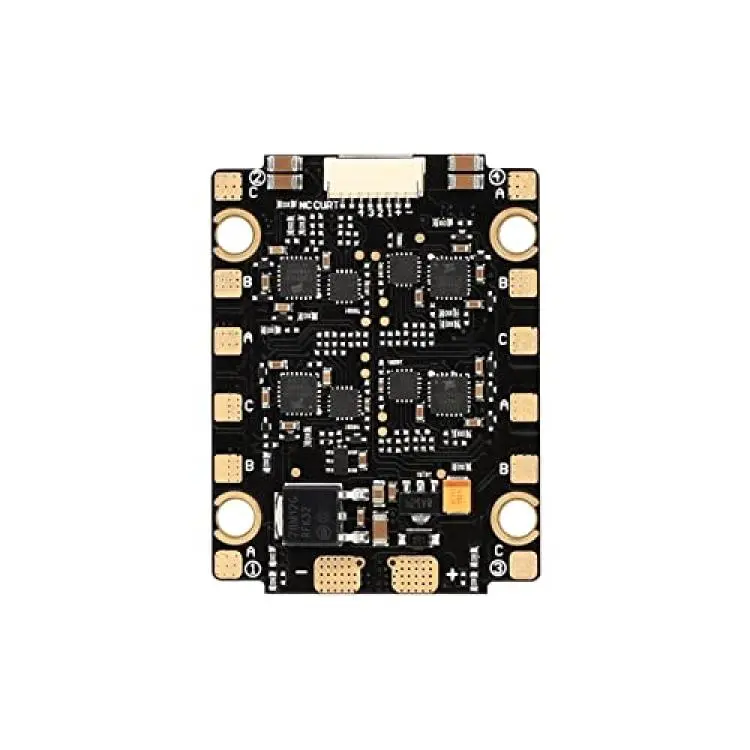

V45A LITE:

Input Voltage: 3-6s

Current: 4*45A

Max Current: 4*55A

Amperage Meter: 200

ESC Software: BLS

Weight: 13g
