Arthur 2207.5 RC Brushless Motor 2750KV 2~4S Outrunner Drone Motor for FPV Quadcopter FPV Drone Fixed-Wing RC Airplane
Availability: Pre-Order, Inquiry Price
About this product
*2207.5 brushless motor designed for the quads like 5~6 inch quad frames, which is with better efficiency in those range frames. Very suitable for your requirement with your drone
*Crash resistant 7075-T6 aluminum bell, smooth and long-lasting 684 NSK bearing, which can reduce the axial impact force just enough to keep your bearings smoothly
*14 pole 12 slot high torque motor design, RC drone motor is 2750KV, widely use for FPV quadcopter, racing drone, multicopter, fixed-wing and RC models

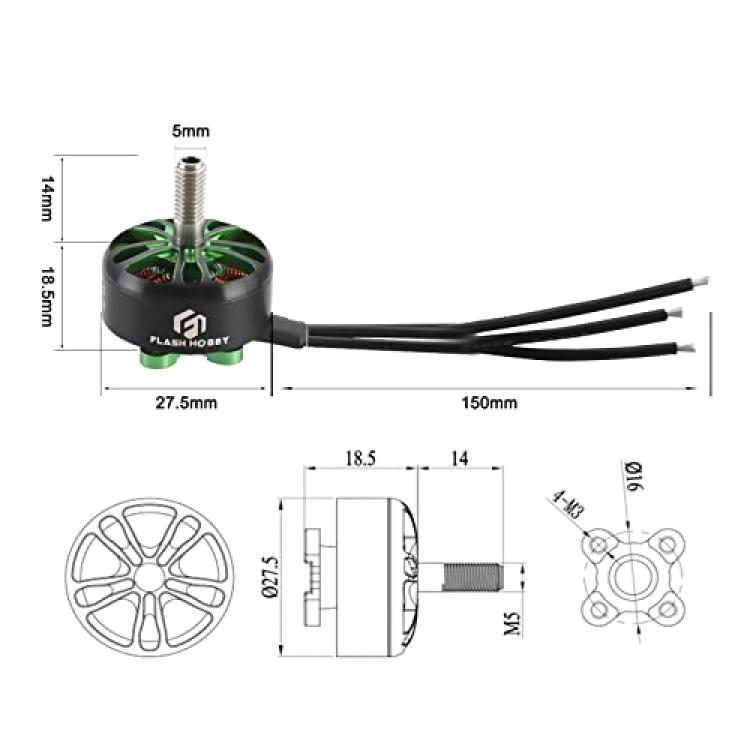

*The motor size is 27.5 x 18.5mm, shaft diameter is 4mm and the stator diameter is 22mm, which is compatible with 2~4S lipo
*Each brushless RC motor has been dynamically balanced, high temperature resistant copper wire winding and eliminate vibration effectively. Very suitable for you to equip it with your model
Description
A2207.5 RC Brushless Motor

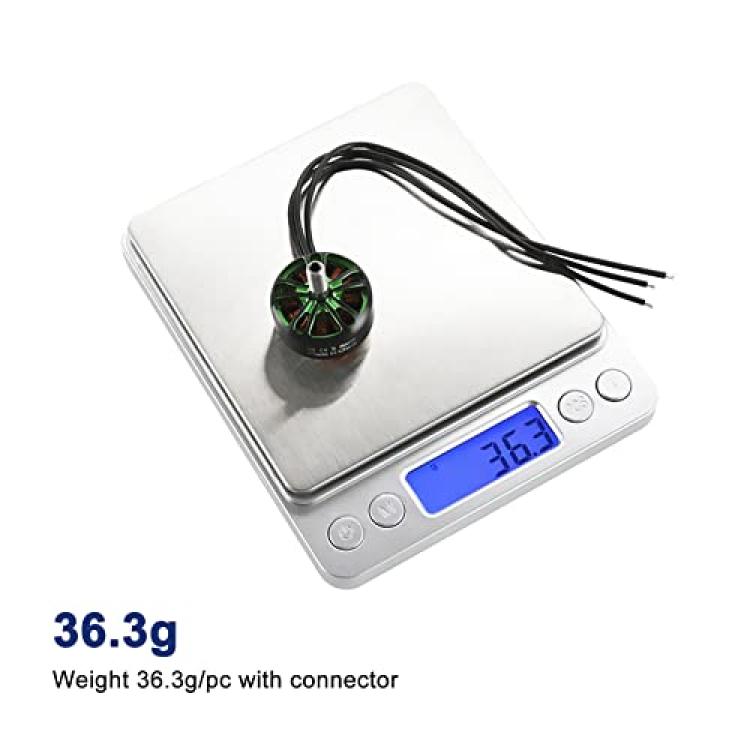

Weight: 36.0g (including the cables)
Motor Size:27.5x18.5mm
Stator Diameter: 22mm
Stator Height: 7.5mm
Shaft Diameter: 4mm
Propeller Shaft Size: M5
Motor Mount: 16*16mm(M3*4)
Configuration: 12N14P
Motor Cable:20#AWG 150mm
Recommend:5~6 inch prop application
684 NSK Bearing
7075-T6 Aluminum bell
0.15mm Silicon steel sheet from Kawasaki, Japan
Speed(RPM ): 0~1900PRM/1v
Max pull: 1640g(4S/GF6045 2R)
Input Voltage: DC7.4-16V(2-4S)
Current: 56.93A
Suggested ESC: 30A~60A
Maximum Power: 910W
Suggested Prop: 5~6 inch prop
Working Temperature Range:-0°C~+80°C
