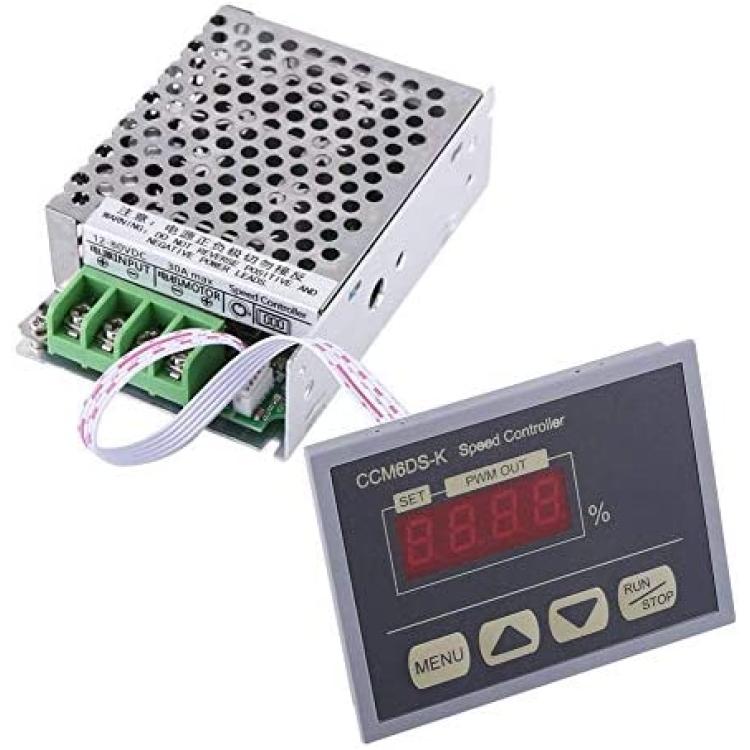

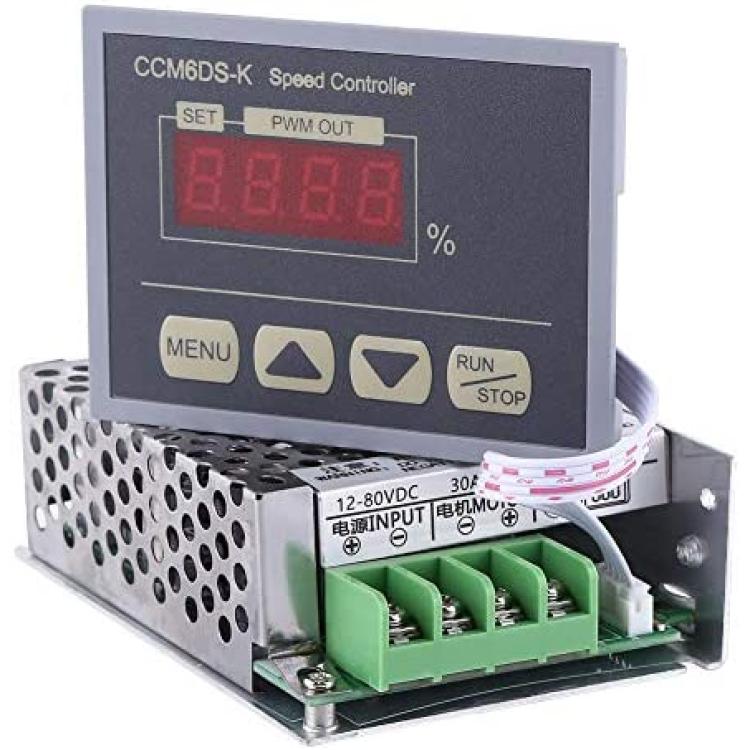

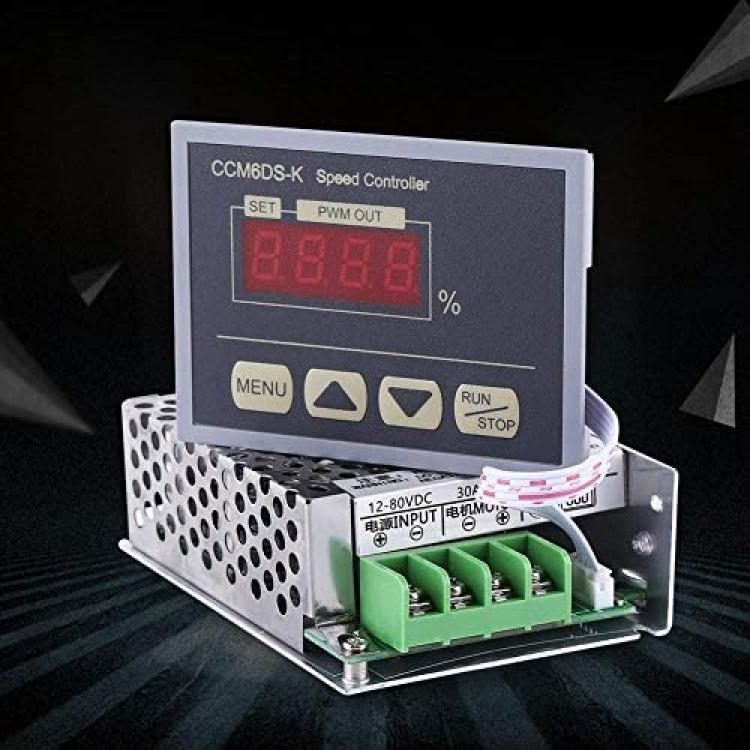

12 to 80V DC Motor Speeds Controller, PWM Governor with Digital Display Panel Suitable for The Motors 12V Less Than 50W, 24V Less Than 350W, and 48V Less Than 500W

Description:
The input voltage can be DC 12V to 80V and output voltage is 0-100% of the input voltage. This speed controller support soft start and soft stop, which is quite convenient to set.

Instruction:
Set 1:"000"-"100", Slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second.
Set 2:"000"-"100", Slow stop time is adjustable between 0-10.0 seconds, the default is 1 second.
Set 3:"000"-"080", The minimum speed is adjustable from 0 to 80%, and is less than the maximum speed setting value,the default is 0
Set 4: "000"-"100", The maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%.
Set 5: "000", "002" , "005" , "010" , "015", "020" , "025", The speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25% each time you press the up or down button.

Specifications:

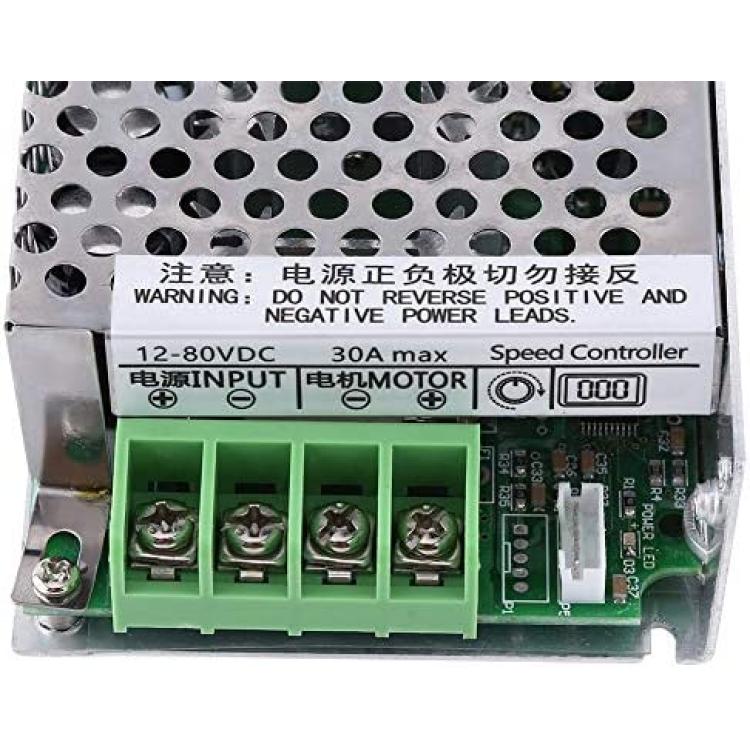

Input Voltage: DC 12V-80V

Output Voltage: 0-100% of the input voltage

Maximum Current: 30A

Control Power: 12V 250W or less, 24V 350W or less, 48V 500W or less

Speed range: 0~100%

PWM frequency: 21kHz

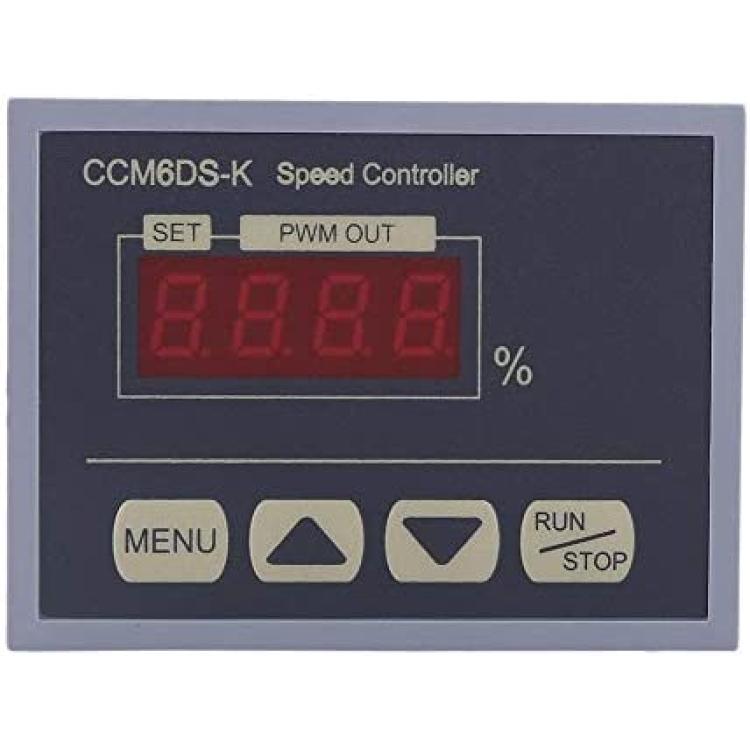

Panel Size: 92 x 69x x13mm / 3.62 x 2.71 x 0.51"

Package Includes:

1 x Speed Controller
