XD25GA370 DC Gear Motor 24V Micro Motor Driver Low Speed CW CCW Permanent Magnet + Bracket Sport Control for Electrical Tools DIY(20rpm/min)
Availability: Pre-Order, Inquiry Price
About this product

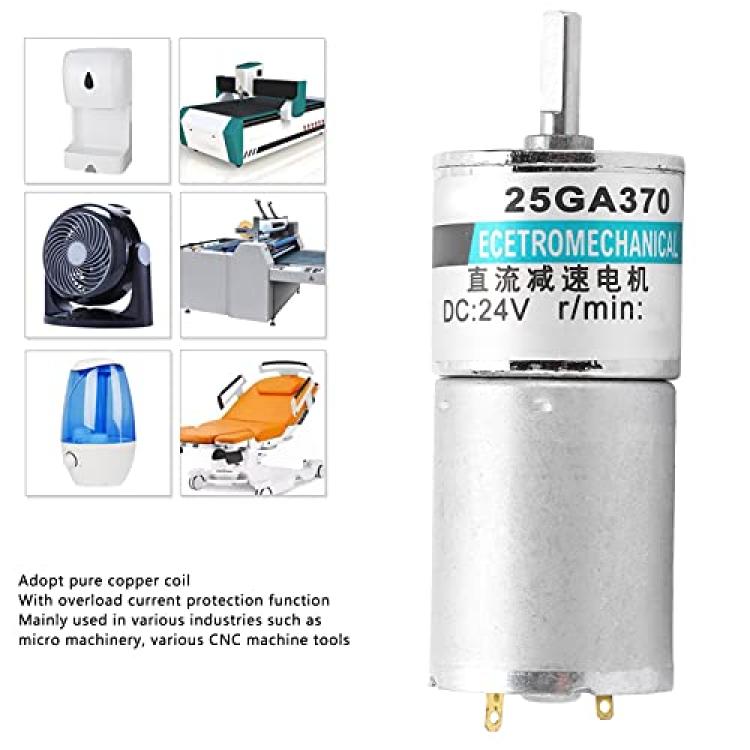

*[Product Features] The DC gear motor adopts all metal gears, which is small in size, large in torque, ultra-quiet and stable in operation.
*[Motor Protection Function] This brushless motor will automatically cut off the power when the current reaches 3A to prevent the motor from burning out during use and increase the service life of the motor.
*[Unique Iubricating Oil] The DC gear motor adopts high temperature grease lubricating oil, which has the characteristics of low friction, noise reduction, and slow temperature rise, which improves the service life of the gear.
*[Magnet Function] There are two magnets inside the DC geared motor, which have the characteristics of high remanence, high coercivity, high energy product, high performance, high torque, etc., which can improve the performance of the motor.
Description
Specification:
Item Type: DC Gear Motor
Model: XD-25GA370
Material: Copper

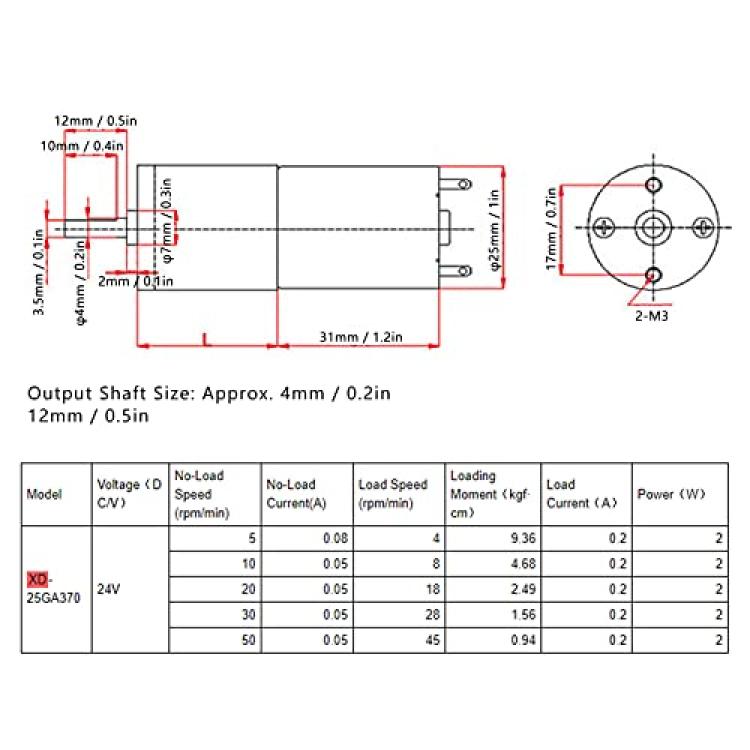

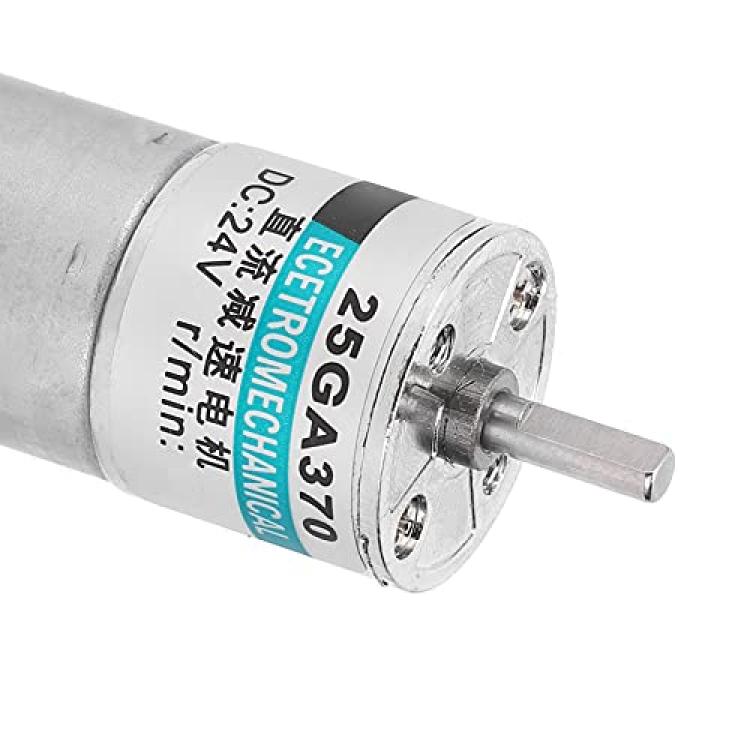

Output Shaft Size: Approx. 4 x 12mm / 0.2 x 0.5in
Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20M?
Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V.
Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil below 70
Insulation Class: Class B(130)
Operating Environment Temperature: Motor: -10~+40 (no icing)
Use Environment Humidity: 85% or less (no condensation)
CW/CCW: Yes
Speed Adjusted: Yes

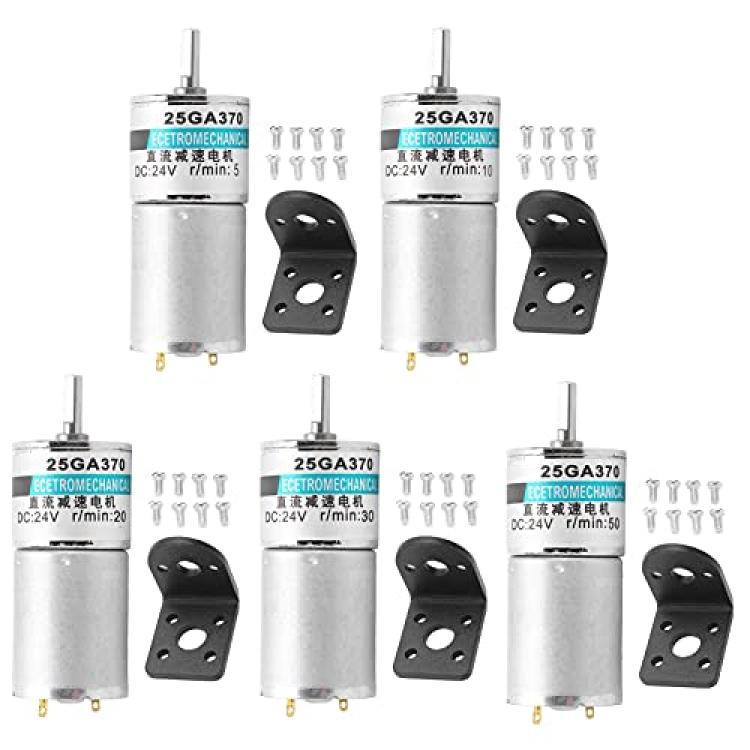

Model VoltageDC/V No-Load Speed (rpm/min) No-Load Current(A) Load Speed (rpm/min) Loading Momentkgf·cm Load CurrentA PowerW XD-25GA370 24V 5 0.08 4 9.36 0.2 2 10 0.05 8 4.68 0.2 2 20 0.05 18 2.49 0.2 2 30 0.05 28 1.56 0.2 2 50 0.05 45 0.94 0.2 2Â
Package List:

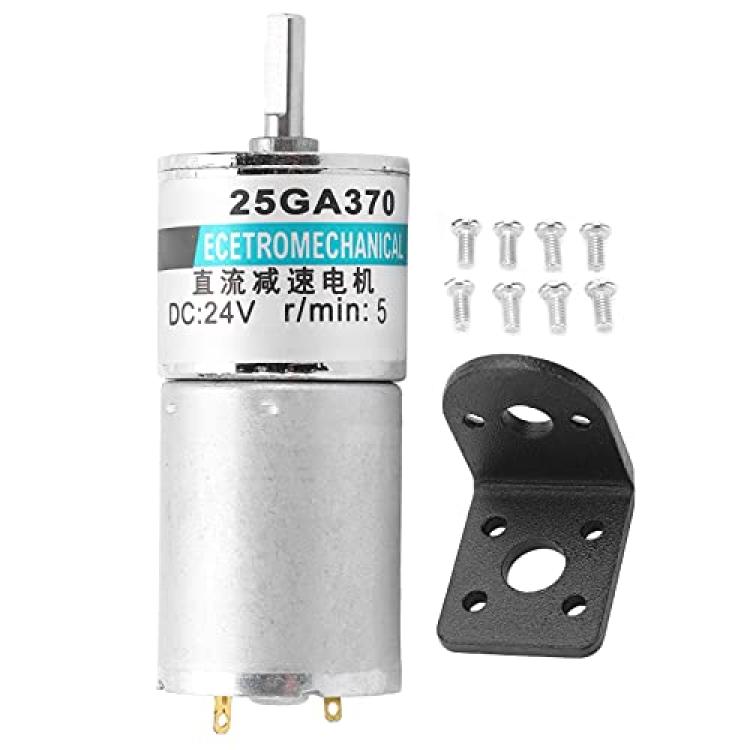

1 x DC Gear Motor

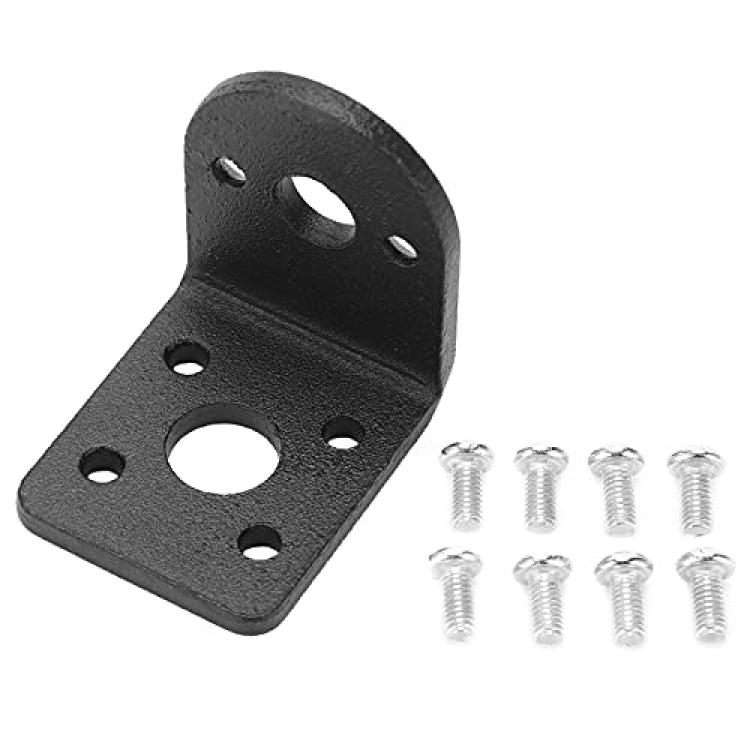

1 x Bracket
8 x Screw
